Velodyne Acoustics DB-15 Powered Subwoofer
PRESSURIZED, PRECISE LOW FREQUENCY FOR EVERY LIVING AMBIANCE
The Deep Blue Series combines all the benefits of Velodyne Acoustics subwoofers in a living room-friendly format. The frequency response of the front-firing drivers, designed from the ground up, extends deep into the frequency basement for impressive home theater experiences.
Features:
- Quad voice coil provides high efficiency, fast rise times, and pulse fidelity with double ferrite magnets
- The enclosed cabinet made of solid MDF material prevents distortion and vibration
- With an adjustable level, crossover frequency, and phase, the Deep Blue subwoofers can be flexibly adapted to the listening room and existing equipment

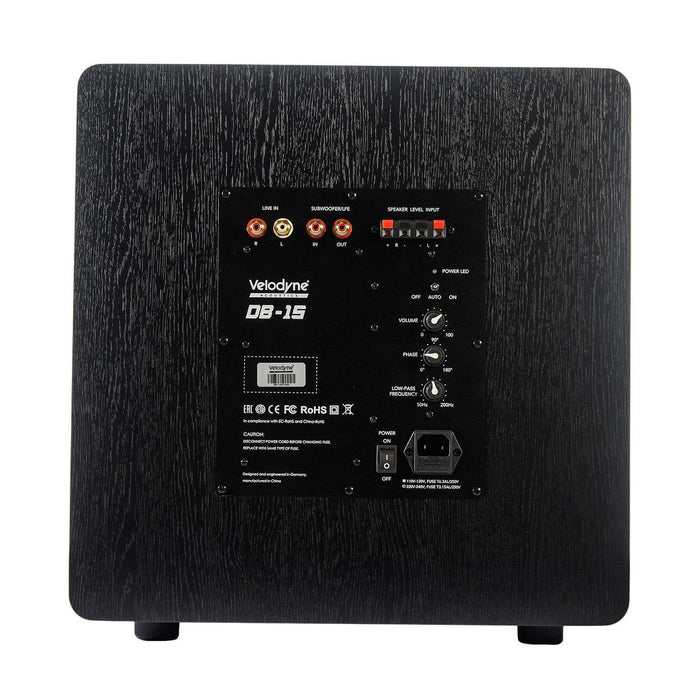

- For connectivity, RCA input jacks are provided for the left and right channels, as well as a dedicated subwoofer input with the loop-through capability
Video Review:
Technical Specifications:
|
Driver |
15″ forward firing |
|
Amplifier Class AB |
|
|
Frequency Response: Overall |
13 – 200 Hz |
|
Frequency Response: (± 3 dB) |
23 – 120 Hz |
|
Low Pass Crossover |
50 Hz to 180 Hz (12 dB/Octave) |
|
Phase |
0 to 180 degrees |
|
Cabinet Design |
MDF Closed Box with 52mm / 2” front Baffle |
|
Magnet Structure |
Dual ferrite magnet motor |
|
Woofer |
15” high excursion double-vented basket driver with PP-enforced Membrane |
|
Voice Coil |
Four Layer 3″ / 75mm Voice coil |
|
Input |
GoldPlated Line in Stereo RCA, LFE in, Nickel Plated high-level |
|
Output |
Gold-plated LFE /RCA |
|
Power Selector |
Off / Auto / On |
|
Finishes |
Black |
|
Dimensions (W/H/D) (includes feet and connectors) |
42.5 x 44.5 x 48.8 cm |
|
Weight (approx) |
23 kg |
|
Shipping Weight (approx) |
25.5 kg |
