Tonewinner AD-1PA 2 Ch Class A Hi-Fi Power Audio Stereo Amplifier - Each

Rs. 329,900.00

  • Pure Class A Amplification: The AD-1PA operates in pure Class A mode, ensuring that the amplifier is always on and delivering the highest quality sound. This design choice eliminates the need for switching and provides a continuous flow of pristine audio.
  • Uncompromising Sound Quality: With a focus on audio purity, the amplifier's circuitry is meticulously optimized to minimize distortion and noise, resulting in a faithful reproduction of your music's nuances.
  • Exceptional Power and Control: The AD-1PA boasts a robust power output that ensures effortless driving of even demanding speakers. Its dynamic control lets you experience the full spectrum of sound, from delicate whispers to thundering crescendos.
  • Premium Build and Materials: Crafted with precision and care, the amplifier features high-quality components that contribute to its exceptional performance and durability.
  • Elegant Design: The amplifier's sleek and understated design seamlessly blends with any audio setup, making it a versatile addition to both contemporary and classic environments.
  • Topology: Class A/Class AB
  • Numbers of Channel: 2 Channels - (High powered single channel modules): Independent windings for each channel from transformer.
  • Power Output: ( Rated Power; THD <0.1% @ 115V (Tested @ AC 115V) - (AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
  • 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; Two channel driven.
  • 500 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
  • 320+ watts RMS/channel; THD<0.1%; 8 Ohms; one channel driven..
  • Pure Class “A” Mode 100 Watts at 8 ohms
  • Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
  • Broad-Band Frequency Response: 10 Hz to 104 kHz +/-3 dB.
  • THD + noise: < 0.0016%; at 100 watts RMS; 1 kHz; 8 Ohms.
  • Signal to Noise Ratio (8 Ohm load):
  • > 116dB - 120dB; FTC rated power; unbalanced input (A-weighted).
  • Minimum Recommended Load Impedance (per channel): 2 Ohms
  • Damping Factor (8 Ohm load): > 200.
  • Input Sensitivity (for rated power; 8 Ohm load): 1.6 V.
  • Gain: 29.5 dB.
  • Maximum Power Consumption: 1200 watts.
  • Power Supply: 110V-240V: 15 Amps - 20 Amps Auto Switching Class A/AB Power Supply.
  • Modules: Separate Heatsinks for individual modules.
  • Bi-Amp Option Available
  • Full balance; holo symmetry; differential input; differential BTL output.
  • Each channel is equipped with 8 pairs of HI-FI power transistors
  • 60A current output capacity.

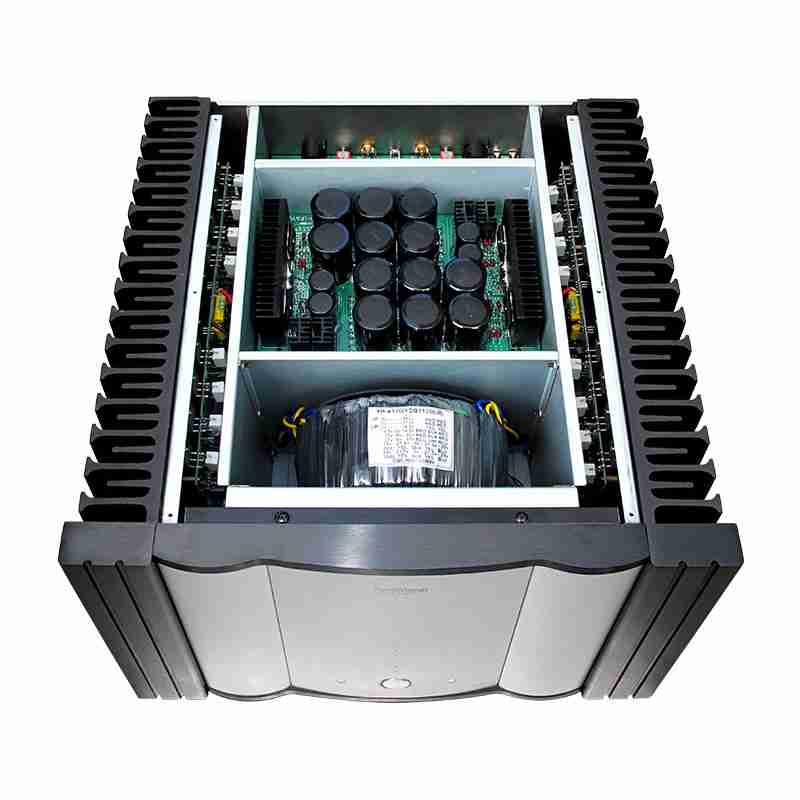

  • 1200W Toroidal transformer; 180000uF audio filter capacitor
  • Intelligent management of switching High/Low voltages ( Auto switch for 115/230V input power)
  • Class A/Class AB Auto/Manual switch
  • Multiple ways for protection: Overcurrent protection, DC protection, self-excitation protection, & overheat protection
  • Standby power consumption: ≤1W
  • Material: Aluminum
  • Color: Black
  • Front Panel: Silver
  • Dimensions: 17.48 x 16.73 x 8.75 Inches
  • Weight: 42kgs / 92.60LB
Country of Origin: CHINA
