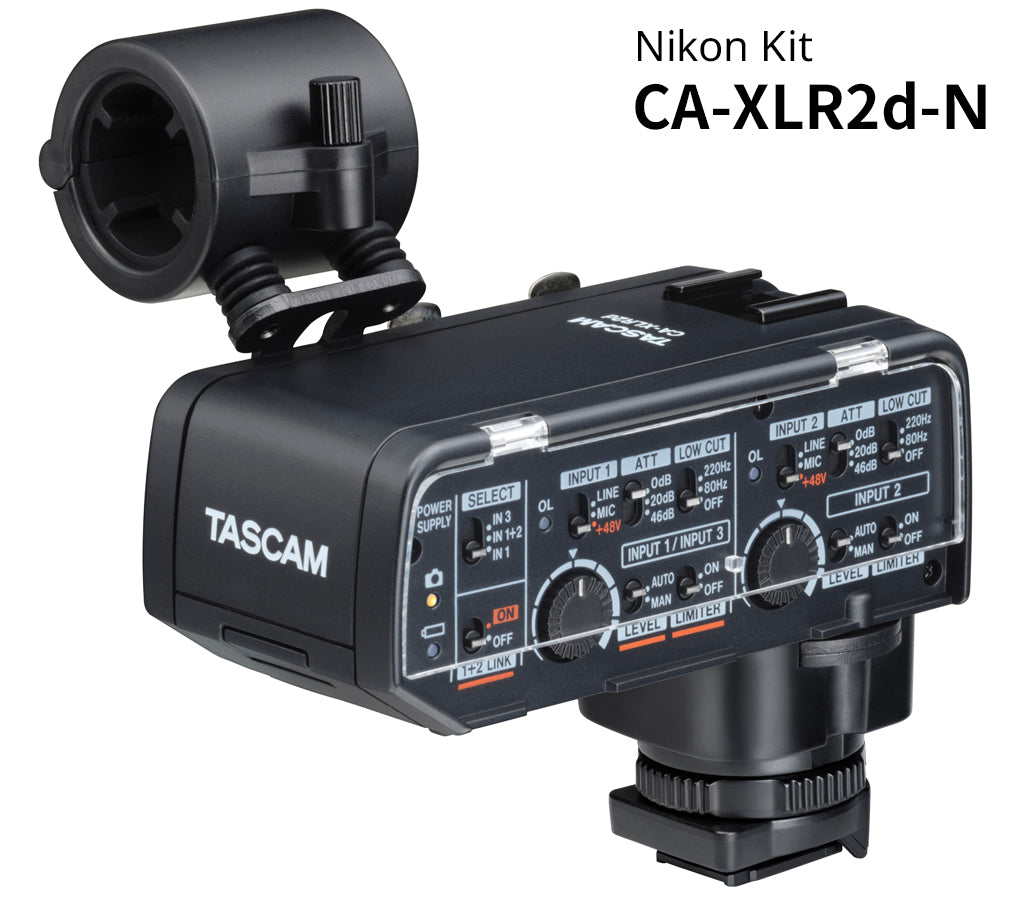

The TASCAM CA-XLR2d-N is a professional XLR microphone adapter specifically developed for Nikon mirrorless and DSLR cameras, enabling high-quality dual-channel audio recording directly into the camera via a digital accessory shoe interface. Designed in collaboration with Nikon, it provides a seamless integration between professional audio equipment and modern video workflows.
Built on TASCAM’s advanced audio architecture, the CA-XLR2d-N features high-performance HDDA microphone preamps and a precision A/D converter, delivering clean, low-noise audio with wide dynamic range. The dedicated Nikon accessory shoe allows direct digital audio transmission to the camera, eliminating signal degradation and removing the need for post-production audio synchronization.
The adapter supports a wide range of audio sources through dual XLR/TRS combo inputs, including dynamic microphones, condenser microphones (with selectable +48V phantom power), and line-level signals. It also includes a 3.5 mm stereo input for lavalier microphones, making it highly versatile for interviews, filmmaking, and field production.
For maximum flexibility, the CA-XLR2d-N can also operate in analog mode via its 3.5 mm output, allowing compatibility with a broader range of cameras beyond Nikon systems.
Performance Highlights:
• Dual XLR/TRS inputs for professional microphones and line sources
• Nikon digital accessory shoe for direct audio transmission
• HDDA low-noise mic preamps with wide dynamic range
• Built-in A/D converter for high-quality digital recording
• +48V phantom power for condenser microphones
• Supports both digital and analog output modes
Why You Should Buy This Product
• ⭐ Record broadcast-quality audio directly into your Nikon camera
• ⭐ Eliminates external recorder and post-sync workflow
• ⭐ Digital connection ensures zero signal degradation
• ⭐ Ideal for filmmaking, interviews, and professional content creation
• Flexible compatibility with both Nikon and other cameras (via analog mode)
Key Features
• Dual XLR/TRS combo inputs (mic/line selectable)
• Nikon-compatible digital hot shoe interface
• High-performance HDDA microphone preamps
• +48V phantom power (selectable)
• Built-in limiter, low-cut filter, and auto level control
• 3.5 mm stereo input for lavalier microphones
• 3.5 mm output (camera / headphone monitoring)
• Cold shoe mount for accessories
• Supports 16/24-bit, 48/96 kHz audio
Technical Specifications
General
• Product Type: XLR Microphone Adapter for Camera
• Brand: TASCAM
• Model: CA-XLR2d-N
Audio & Performance
• Channels: 2-channel input
• Sampling Rate: 48 / 96 kHz
• Bit Depth: 16 / 24-bit
• Preamp Type: HDDA low-noise mic preamp
• Phantom Power: +48V selectable
Connectivity
• Inputs: 2 × XLR/TRS combo
• Additional Input: 3.5 mm stereo mini jack
• Output: Digital via Nikon accessory shoe / 3.5 mm analog
• Monitoring: 3.5 mm headphone output
Power
• Power Source: Camera accessory shoe or 2 × AA batteries
Physical & Installation
• Mounting: Camera hot shoe mount
• Form Factor: Compact on-camera adapter
• Weight: Approx. 341 g
Configuration
• Device Type: Camera Audio Interface / XLR Adapter
• Built-in Amplifier: Mic preamps (integrated)
• Mode: Active
Included
• 1 × XLR Microphone Adapter
• 1 × Nikon Interface Shoe Adapter (CA-AK1-N)
• 1 × Cold Shoe Mount Adapter (CA-AK1-AN)
• 1 × Battery Holder
• 1 × 3.5 mm Stereo Audio Cable
• 1 × Microphone Holder
• 1 × User Documentation
