Description
Key Features
- Professional 96 kHz / 32-Bit ADDA
- 4-Band EQ and 3-Band Master Isolator
- HP/LP Filter, Send FX, Beat FX
- 4 Phono Inputs and 6 Line Inputs
- 6-Input / 6-Output USB Soundcard
- Digital I/O: 6 Coaxial In / 1 AES Out
- Dual Stereo Send/Return for External FX
- Pro DJ Link Support + MIDI DIN for Sync
- Dual Cue Headphone Outputs 1/4" & 3.5mm
- Three USB Ports

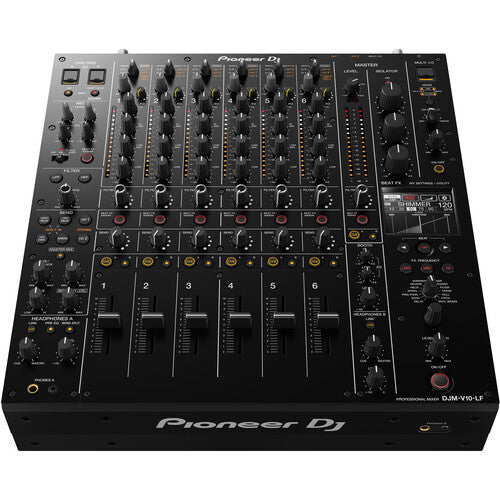

Building upon the success of the DJM-V10, the black Pioneer DJM-V10-LF removes the crossfader and extends the channel faders for more volume precision. Some DJs prefer to use the channel faders over the crossfader, as they offer more control to perform smooth blends with tiny adjustments to the volume of each track, or quickly drop sounds into the mix as if playing a musical instrument.
Removing the crossfader from the DJM-V10 affords the updated 60 mm shaft slide faders on the DJM-V10-LF to extend further down the top plate, offering a longer range of movement for better volume control of audio sources. What’s more, an updated fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.
The DJM-V10-LF is well suited for professional DJs, clubs, festivals, mobile DJs, nightclub installations, recording studios, and more. The mixer utilizes a 6-channel layout and an integrated USB soundcard with support for up to 6 stereo channels of 32-Bit / 96 kHz audio and 64-bit internal processing. Its digital throughput also delivers a wide variety of DSP effects.
Many enhancements have been made to the V10-LF including a complete redesign of the mixer's interface, which now includes a 4-band EQ, dedicated high-pass or low-pass filters with resonance, and send FX on each channel. Send FX offers four internal effects with dedicated parameter controls, plus two stereo sends with returns for interfacing with external FX processors such as guitar pedals, studio multi-FX, and more. Additionally, each Send FX (internal or external) can be assigned to one of the six channel strips for even more advanced routing and processing.
Each channel also features a compressor, which is designed for producer/DJs to play unmastered tracks seamlessly, help match older tracks to modern compression standards, or fatten up and tame dynamics. The updated Beat FX can now be accessed via a larger touchscreen for hands-on, real-time manipulation of effects, plus Hi/Mid/Low FX frequency cuts for further performance enhancements. Two independent headphone outputs add control for a dual cueing system, allowing DJs to play seamless back-to-back sets and smooth DJ transitions.
There are four inputs for turntables and six line-level inputs for digital decks. Additional features include Pro DJ Link, six S/PDIF digital input connections, one AES/EBU digital output connection, a DIN MIDI output for synchronizing external hardware effects and sequencers, two top-mounted USB connections, and an additional USB port that supports iOS devices for use with Pioneer's optional RMX-1000 for iPad. An independent send-and-return section allows for external effects to be used simultaneously with the internal effects. The DJM-V10-LF ships with a power cord.

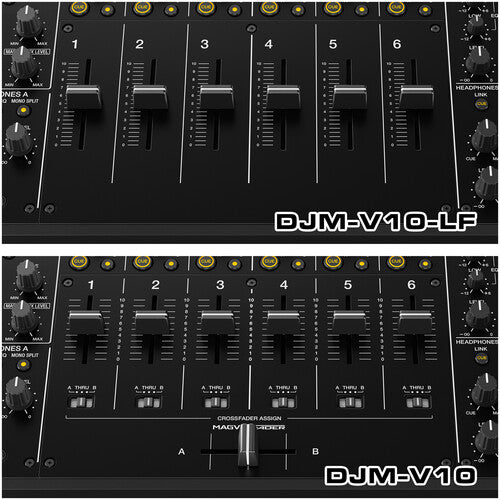

Update Layout for Performing Artists
- Some DJs never use a crossfader, preferring instead to mix with the channel faders because it gives them more control—whether they want to perform smooth blends with tiny adjustments to the volume of each track or quickly drop sounds into the mix as if playing a musical instrument
- Removing the crossfader from the DJM-V10 has enabled the new 60mm shaft slide faders on the DJM-V10-LF to extend further down the top plate than the 45 mm faders on the original mixer, offering a longer range of movement so you can control the volume of the audio source from each channel precisely
- What’s more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range
Elite sound quality
- Feel the warmth of natural sound and hear every detail
- Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs
ESS Technology 32-bit D/A converter
- 32-bit SABRE 8-channel DAC (ES9016S) is used for both the master and booth outputs
- DAC output is driven in parallel to further improve S/N
- Honed output circuit by improving op-amps and capacitors and by performing optimal tuning, resulting in low-noise, high-resolution sound that's easy to listen to, even at high volumes
32-bit A/D converter by Asahi Kasei Electronics
- Analog channel inputs use a 32-bit premium ADC (AK5578EN/AK5574EN) with VELVET SOUND technology by Asahi Kasei Electronics
- Redesigned input differential conversion circuit and optimized audio parts used results in a rich, high-definition and low-distortion sound
EM Devices' Mechanical Relays
- Line/phono input switch, master output, and headphones output circuits use high-performance, durable mechanical relays (EA2 relays) from EM Devices Co.
- Eliminate signal distortion due to the use of nonlinear electrical components, completely canceling unpleasant noise in the mute circuit
AES/EBU output
- Master outputs feature a noise-resistant balanced transmission system and a professional digital audio-standard AES/EBU terminal that’s suitable for long-distance transmission in large venues

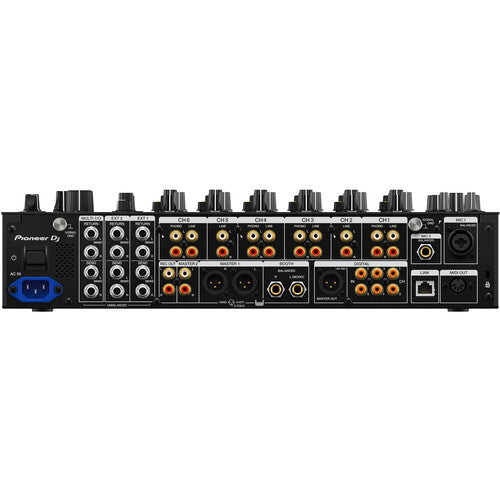

6 Channels with Wide Range of Inputs
- Choose your ideal setup and plug in everything from CDJs and turntables to samplers, synths, and drum machines
- Easy setup thanks to analog input terminals that line up with each channel on the top panel, so you’ll always know where to connect your cables when you’re in the booth
USB/MIDI terminal
- With a 96 kHz / 24-bit sound card, you can input and output up to 6 stereo channels without any deterioration of sound quality when connected to a PC/Mac
- Input and output of the send and master signals, as well as the input and output of individual channels, can be routed via USB to your computer
- Smooth DJ handovers by simultaneously connecting 2 laptops (PC/Mac)
MULTI I/O terminal
- USB Type-A terminal and 1/4" TS jacks are mounted on the top and the rear of the mixer
- Arrange your sounds using the RMX-1000 app for iPad or another FX app, or record your mix directly to the DJM-REC app without any deterioration in sound quality
- Route insert-type hardware effect units, such as the RMX-1000, through the 1/4" TS jacks
DIN MIDI Out
- Sync external production gear using the BPM from rekordbox
- Quantized BPM information is shared via Pro DJ Link when connected to a LAN hub
- When not using PRO DJ Link, the DJM-V10’s BEAT FX suite will analyze and display a track’s BPM
4-Band EQ & Compressor
- Sculpt your sound just the way you like it
- Frequencies, curves, boost, and cut amounts on each band have all been specially designed to give you total flexibility
- Completely isolate the high and/or low and tweak the two mid ranges to fine tune your mix
- Midrange EQs have their own custom curves
Compressor knob on each channel
- Seamlessly play old or unreleased tracks alongside modern compressed productions
- Compressor knob on the relevant channel will beef up the audio in real time
- Quieter tracks will have added loudness, boosting the sound of weaker tracks
- Mastered music will have a minimal effect
Channel Fader
- Each channel is equipped with a newly developed, precise fader that enables fine adjustment
- Highly stable and durable, faders will still feel smooth even after years of use
Creative FX
Send audio to one of four built-in FX
- Short Delay
- Long Delay
- Dub Echo
- Reverb
Send audio to up to two pieces of external equipment to create unique sounds and even live remixes
Connect guitar pedals, FX units, and more to the TS jack send/return terminals
Filter
- Newly developed filter with resonance control
- Drastically change the sound of a track or subtly tweak it
- Switch on high- or low-pass filters by pressing either button
- Turn the knob from all the way to the left (no filter applied) to the furthest position on the right (maximum filter applied)
- High- and low-pass filters are separated, offering twice the resolution to play with compared to the filter on the DJM-900NXS2
- Allows for more pronounced adjustments
Beat FX
- Control the X-Pad via the touch display for more intuitive effects manipulation
- Bring harmony to sound sources such as vocals and synthesizers to create unique sounds
- Directly select the channel you want to add the effect to with the BEAT FX Assign button
- Added Shimmer effect that adds brightness to the original audio
3-Band Master Isolator
- Effortlessly control the tone of your entire mix
- 3-band master isolator features boost/cut curves and adjustments to the crossover frequencies
- Grab the large dials and drastically changing the sound for immediate tension and release
Dual Headphone Output and Booth EQ
- Plug in your headphones at the same time as another DJ for independent monitoring
- Headphones' output has its own Cue/Master Mix control and level adjustment knob
- Choose what you want to hear as you prepare to take over the decks, or during back-to-back sets
- Tweak the sound from the monitor speakers to prevent ear fatigue during long sets
Lockable Power Cable
- Lockable power cord included for added reliability
- Helps prevent accidental disconnections
DJM-REC Compatible
- Record and archive your mixes via iPhone or iPad
- Upload your sounds to cloud services
- Effortlessly live-stream your sessions
rekordbox
- Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching
Serato DVS-Ready
- Use Serato DVS to control and scratch with CDJs or turntables
- Serato DJ Club Kit license required and available separately
Traktor DVS-Ready
- Enjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately)
- Intuitively control and scratch with digital audio files stored on your computer
ShowKontrol
- Supports the extended PRO DJ LINK ShowKontrol protocol
- Enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals. and to create mind-blowing shows
