Description
Highly Reliable Low-Maintenance Projection

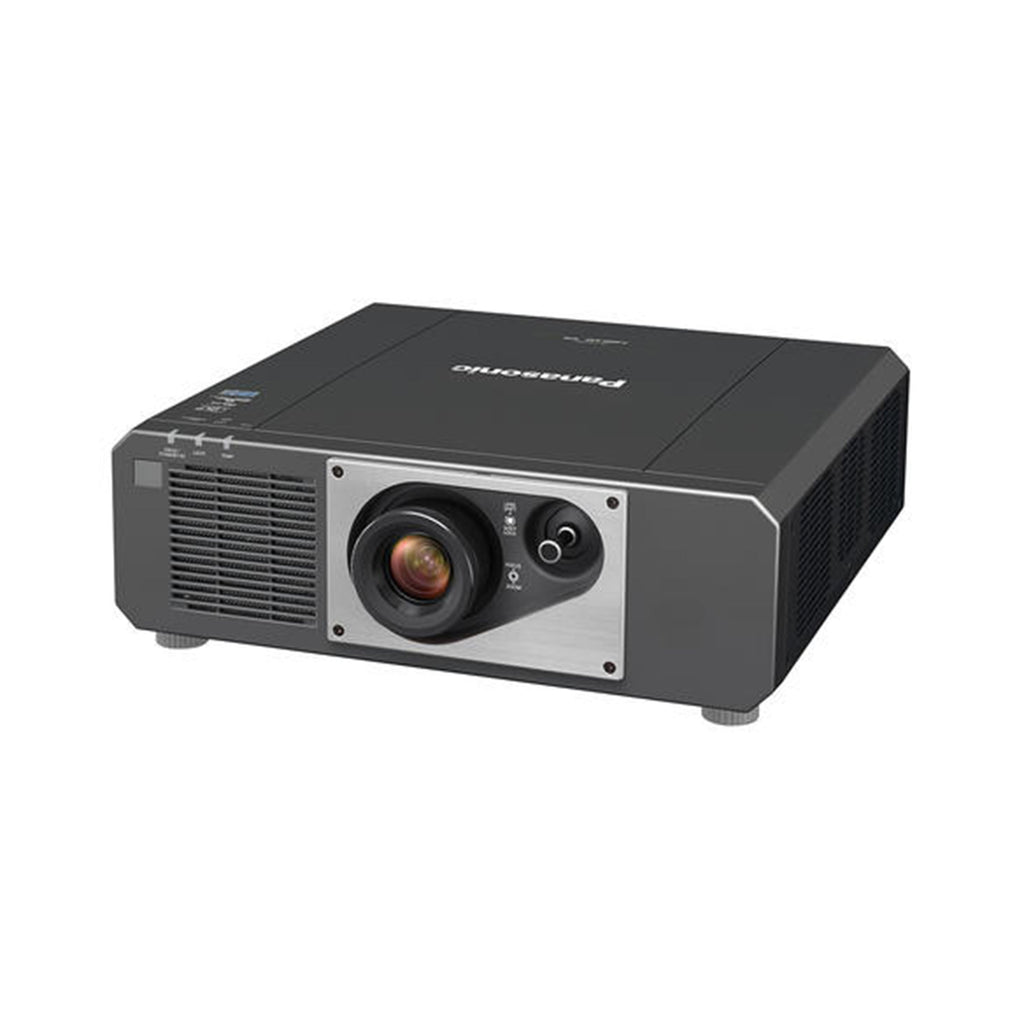

The Panasonic PT-FRQ60 Series is a professional-grade 1-Chip DLP™ laser projector designed for high-performance installations, delivering up to 6,000 ANSI lumens brightness, 4K resolution with Quad Pixel Drive, and versatile connectivity for demanding AV environments. It balances strong imaging power with long-life reliability, making it ideal for auditoriums, conference halls, and immersive applications.
Overview:
- High brightness and contrast for large venues
- 4K enhancement ensures sharp visuals even from Full HD input
- Long-life laser source reduces maintenance costs
- Flexible installation with wide lens shift and 360° orientation
- Rich connectivity for professional AV integration
Key Highlights

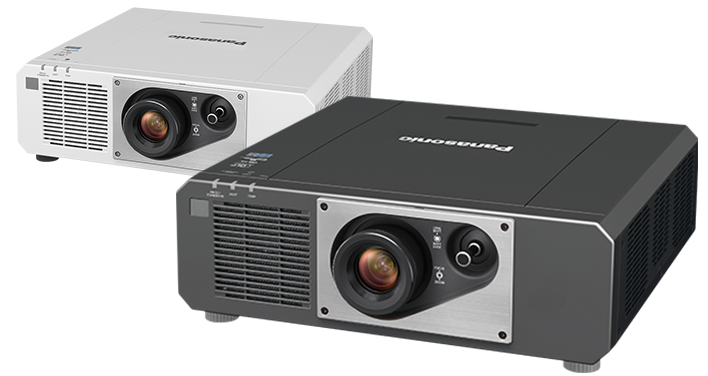

- Models: PT-FRQ60 (6,000 lm) and PT-FRQ50 (5,200 lm)
- esolution: Native Full HD (1920 × 1080), enhanced to 4K (3840 × 2160) via Quad Pixel Drive
- Bightness: • PT-FRQ60: 6,000 lm ANSI / 6,200 lm Center
- Contrast Ratio: 20,000:1 (Dynamic Mode)
- ight Source: Laser diodes, rated 20,000–24,000 hours depending on mode
- ens: 2.0x manual zoom, manual focus, with wide lens shift (Vertical +71%/-48%, Horizontal +34%/-27%)
- Screen Size: 40–300 inches (16:9 aspect ratio)
- Installation: Flexible 360° orientation (ceiling, floor, front/rear)

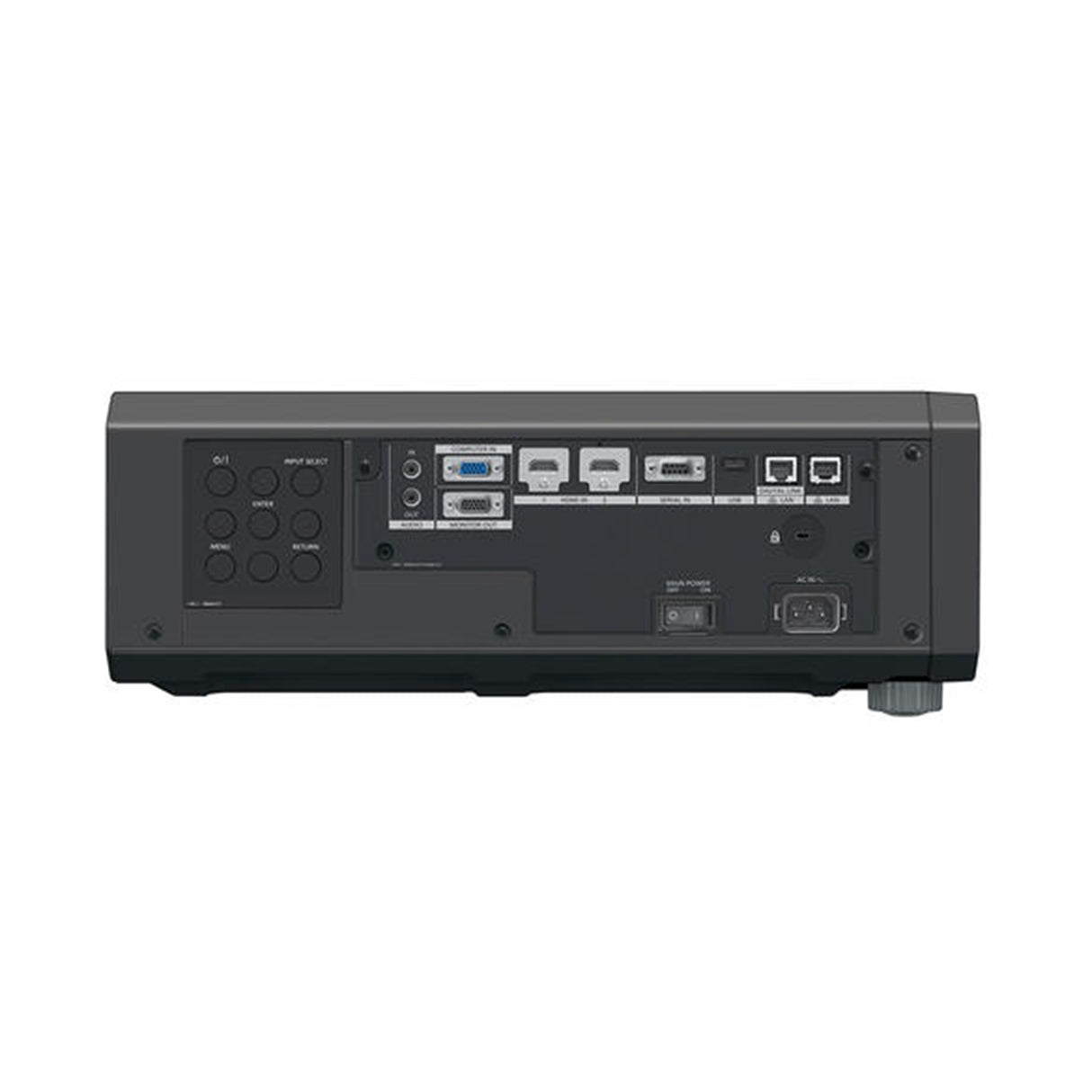

Connectivity & Control
Inputs:
- HDMI ×2 (HDCP 2.3, 4K/60p, CEC)
- omputer In (D-sub 15-pin)
- onitor Out (D-sub 15-pin)
- udio In/Out (Stereo mini-jack)
- ontrol & Networking:
- S-232C (Serial)
- IGITAL LINK/LAN (HDBaseT, PJLink Class 2, Art-Net, Extron XTP)
- SB Type-A (Wireless module, memory, power supply)
- Pv4/IPv6 support
- oftware Integration: Compatible with Crestron Connected™, Crestron XiO Cloud™, Art-Net DMX, AMX DD, PJLink Class 2
Best Use Cases
- Auditoriums & Lecture Halls – Brightness and clarity for large audiences
- orporate Conference Rooms – Reliable AV integration with Crestron/AMX systems
- mmersive Installations & Museums – 4K enhancement and flexible orientation for creative setups
- vents & Rentals – Durable laser source with versatile connectivit
In short, the Panasonic PT-FRQ60 Series is a robust, mid-to-high brightness projector line that blends 4K visual quality, long-life laser reliability, and professional AV integration. It’s best suited for large venue installations where clarity, flexibility, and low maintenance are critical.
Specifications:
| Projector type | 1-Chip DLP™ projector | |
|---|---|---|
| DLP™ chip | ||
| Panel size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) | |
| Display method | DLP™ chip x 1, DLP™ projection system | |
| Number of pixels1 | 1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.) |
|
| Light source | Laser diodes | |
| Light output2
?
|
6,000 lm3 / 6,000 lm (ANSI)4 / 6,200 lm (Center)5 | 5,200 lm3 / 5,200 lm (ANSI)4 / 5,400 lm (Center)5 |
| Time until light output declines to 50 %6 | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) | |
| Resolution | 4K (3840 x 2160 pixels) (With Quad Pixel Drive) | |
| Contrast ratio3 | 20,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input) |
|
| Screen size (diagonal) | 1.02–7.62 m (40–300 in), 16:9 aspect ratio | |
| Center-to-corner zone ratio3 |
90 % | |
| Lens | 2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm | |
| Lens shift (From the origin point of the lens mounter) |
||
| Vertical | +71 %, -48 % (manual) | |
| Horizontal | +34 %, -27 % (manual) | |
| Keystone correction range | Vertical: ±40 °, Horizontal: ±20 ° | |
| Installation | Ceiling/floor, front/rear, free 360-degree installation | |
| Terminals | ||
| HDMI IN 1/2 | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input7), CEC supported | |
| COMPUTER IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) | |
| MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) | |
| AUDIO IN/OUT | M3 stereo mini-jack x 2 | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal Input8, Extron XTP®) | |
| LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) | |
| USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A) |
|
| Supported Internet Protocol Versions | IPv4, IPv69 | |
| Power supply | AC 100–240 V, 50/60 Hz, AC 110 V, 60 Hz (Taiwan) |
|
| Maximum power consumption | 505 W (5.5–2.4 A) (525 VA) (0.5 W with Standby Mode set to ECO, 15 W with Standby Mode set to NORMAL) | 480 W (5.0–2.2 A) (500 VA) (0.5 W with Standby Mode set to ECO, 15 W with Standby Mode set to NORMAL) |
| On-mode power consumption (Operating mode) |
|
|
| Cabinet materials | Molded plastic | |
| Operation noise3 | 36 dB (NORMAL/ECO) / 31 dB (QUIET) | 35 dB (NORMAL/ECO) / 28 dB (QUIET) |
| Dimensions (W x H x D)10 |
498 x 168 x 492 mm (19 5/8˝ x 6 5/8˝ x 19 3/8˝) | |
| Weight11 | Approx. 16.4 kg (36.2 lbs) | Approx. 16.1 kg (35.5 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F12), operating humidity: 10–80 % (no condensation) | |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software | |
| Control Function via LAN |
Crestron Connected™ V2, Crestron XiO Cloud™13, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) | |
