Description
A Dolby Atmos Home Theatre Package you've dreamed of. Everything you need for your system. Includes top of the line BenQ 4K projector you'd like to go with and automatic projector screen
Package Includes:
Package Includes:
( Click on foll. product weblinks for more in-depth info )
- BenQ W5700 Projector

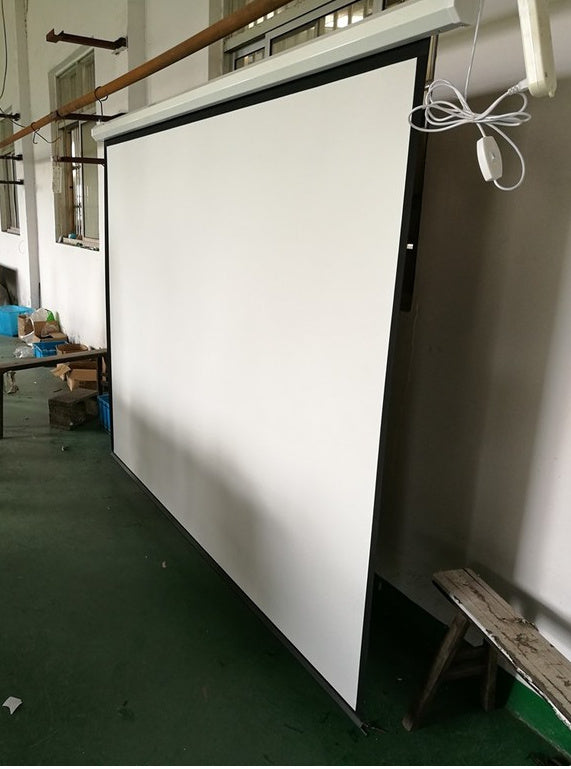

- 100" Audiomaxx Certified Motorized 100"Projector Screen (Upgradable to larger sizes)
- 2 x Q Acoustics 3050i Floor Standing Speakers
- 4 x Q Acoustics 3020i Bookshelf Speakers
- 1 x Q Acoustics 3090Ci Centre Speaker
- 1 x Q Acoustics QB12 Subwoofer
- 1 x Marantz AVR SR6014 Audio-Video Receiver
- 2 x JBL Arena 6ic In-Ceiling Speaker
- 1 x Projecor Mounting Kit
- 1 x 10mtr ProGrade Fibre Optic HDMI Cable

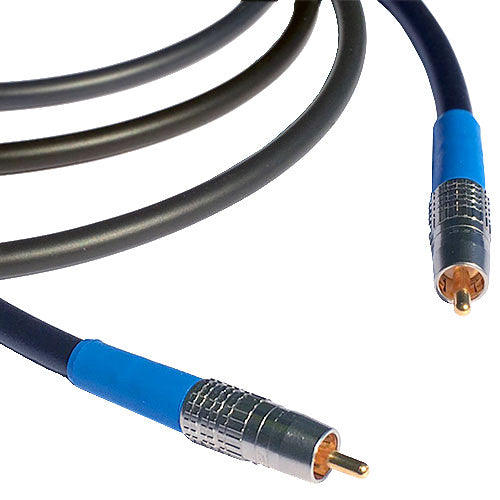

- 2 x 3m Performance Subwoofer Cable
- 1 x 100m / 16SWG Oxygen Free Professional Speaker Wire Bundel
Warranty Info:
- 1 Year Marantz AVR
- 2 Year BenQ
- 1 Year Projector Screen & Mount
- 2 Year Q Acoustics Speakers
- 1 Year Q Acoustics Subwoofer
- 1 Year JBL Speakers
BenQ W5700 Projector
Display
Picture Mode - Projection System: DLP
- Resolution: 4K UHD (3840 x 2160)
- Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
- Brightness (ANSI lumens): 1800 ANSI Lumens
- Contrast Ratio (FOFO): 100,000:1 (w/ Dynamic Iris)
- Display Color: 30 Bits (1.07 billion colors)
- Native Aspect Ratio: Native 16:9 (3 aspect ratio selectable)
- Light Source: Lamp
- Light Source Wattage: 245W
- Light Source Life
- Normal 4,000 hours
- Economic 10,000 hours
- SmartEco 10,000 hr
- LampSave 15,000 hrs
- Throw Ratio: 1.36 ~ 2.18 (100" @ 3 m)
- Zoom Ratio: 1.6X
- Lens: F/# 1.81~2.1, f 14.3(Wide) ~ 22.9(Tele)
- Lens Shift: Vertical: ± 60% / Horizontal: ± 23%
- Keystone Adjustment: 1D, Vertical ± 40 degrees
- Image Size: 60" ~ 200" / 300" (Clear Focus / Maximum)
- Horizontal Frequency: 15K-102KHz
- Vertical Scan Rate: 23-120Hz
- ISF Disabled: Bright / Vivid / Cinema (Rec. 709) / D. Cinema / Silence / 3D / User 1 / HDR / HLG
- ISF Enabled: Bright / Vivid / Cinema (Rec. 709) / D. Cinema/ Silence / ISF Night / ISF Day
- Color Wheel Segment: 6-Segment (RGBRGB)
- Color Wheel Speed: 2D: 96Hz ; 100Hz ; 120Hz, 3D: 120Hz
- Rec.709 Coverage: 100%
- DCI-P3 Coverage: 100%
- Interface
- HDMI : x2 (HDMI 2.0b & HDCP 2.2)
- USB Type A
- x1 (5V/2.5A power supply)
- x1 (USB 2.0 Media Reader/ Firmware upgrade)
- x1 (USB 3.0 Media Reader/ Firmware upgrade)
- USB Type mini B
- x1 Firmware upgrade
- Audio out (3.5mm Mini Jack) x1
- LAN (RJ45)
- x1 RJ-45 LAN input jack (10/100M)
- RS232 (DB-9pin)
- x1 RS232 In (D-sub 9pin, male)
- DC 12V Trigger (3.5mm Jack) x1 (3.5mm Jack)
- IR Receiver x2 (Front/Top)
- Wired Remote in (3.5mm Mini Jack)
- HDR: Yes (HDR10, HLG)
- Motion Enhancer (MEMC): Yes
- ISF Night/ Day: Yes
- LAN control: Yes
- CinemaMaster Video +
- Yes (4K Motion Enhancer, 4K Pixel Enhancer, Color Enhancer, Flesh Tone)
- HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
- VAC 100 ~ 240 (50/60Hz)
- Typical Power Consumption : Max 405W, Normal 330W, Eco 247W
- Standby Power Consumption : ; 0.5W Max. at 100 ~ 240VAC
- Network Stand-by Power Consumption <2W
- Acoustic Noise (Typ./Eco.) 32dBA / 26dBA
- Operating Temperature 0~40 degrees (Celcius)
- Dimensions (W x H x D)(mm)
- 492 x 168 x 349
- Net Weight (Kg/ lbs ) 6.5kg.
Q Acoustics 3050i Floor Standing Speakers
Specifications
Specifications
- Enclosure Type : 2-Way Reflex
- Bass Unit : 2 x 165 mm (6.5")
- Treble Unit : 22 mm (0.9 in)
- Frequency Response (+3 dB, -6 dB) : 44 Hz - 30 kHz
- Avergae Impedance : 6 Ohm
- Minimum Impedance : 4 Ohm
- Sensitivity (2.83 V@1 m) : 91 dB
- Stereo Amplifier : 25 - 180 W
- AV Receiver (2 ch. driven) : 50 - 165 W
- Crossover Frequency : 2.5 Hz (var)
- Effective Volume : 32.4 L (1977 cu in)
- Dimensions (H x W x D) : 310 mm x 1020 mm x 310 mm
- (12.2" x 40.2" x 12.2")
- Enclosure Width : 200 mm (7.9 ")
- Weight (per speaker) : 17.8 kg
Q Acoustics 3020i Bookshelf Speakers x 2 Pairs
Specifications
Specifications
- Enclosure type: 2-way reflex
- Bass Unit: 125 mm (5 in)
- Treble Unit: 22 mm (0.9 in)
- Frequency Response (+3 dB, -6 dB): 64 Hz – 30 kHz
- Nominal Impedance: 6 Ω
- Minimum Impedance: 4 Ω
- Sensitivity (2.83 Vrms@1 m): 88 dB
- Stereo Amplifier Power: 25 - 75 w
- AV Receiver (2 ch. driven): 50 - 75 w
- Crossover Frequency: 2.4 kHz
- Effective Volume: 6.1 L (372 cu in)
- Dimensions W/H/D: 170 x 278 x 282 mm (6.7 x 10.9 x 11.1 in)
- Weight (per speaker): 5.5 kg
Q Acoustics 3090Ci Centre Speaker
Specifications
Specifications
- Enclosure Type : 2-Way Reflex
- Bass Unit : 2 x 100 mm (4")
- Treble Unit : 22 mm (0.9")
- Frequency Response : (+3 dB, -6 dB) 75 Hz - 30 kHz
- Average Impedance : 6 Ohm
- Minimum Impedance : 4 Ohm
- Sensitivity (2.83 V@1 m) : 89 dB
- Stereo Amplifier : 25 - 100 W
- AV Receiver (2 ch. driven) : 50 - 165 W
- Crossover Frequenc : 2.7 kHz
- Effective Volume : 6.6 L (403 cu in)
- Dimensions (H x D x W) : 430 mm x 152 mm x 216 mm (16.9" x 6.0" x 8.5")
- Weight (per speaker) : 6 kg
Superior Design Elements
The QB12 features a “dart brace” design within the subwoofer’s MD cabinet with a 36mm thick baffle. This internal feature works to provide superior stability to the driver, taking pressure away from the sound and reducing vibrations. Resulting in more accurate bass response and cinema-like experience for your home setting.
Specifications:
- Enclosure Type: Infinite Baffle (sealed)
- Enclosure Material: MDF
- Drive Units: 12” (305mm) High-Excursion
- Continuous Amplifier Power: 220W
- Peak Amplifier Power: 440W
- Frequency Range: 28Hz - 300Hz
- Overall Dimensions: 400 x 400 x 446mm (H x W x D) without spikes
- Mains Power: 100 V-240 V, 50/60 Hz
- Input impedance: 13 kΩ
- Input sensitivity (for full power at 50Hz, level set to maximum): 150 mV, (L=R), 300mV, (L only)
- Input sensitivity for auto switch-on: 1.5 mV (L=R), 3 mV (L only)
- Crossover frequency range: 70 Hz - 225 Hz (12dB/octave)
- Weight: 18.5 kg
Key Feature Of Product
Product Highlights:
Power And Processing
Power And Processing
- 9-2 channel amplifier
- 110 watts per channel into 8 ohms (20-20,000 hz) at 0.08% thd, with 2 channels driven
- Dolby® and DTS® Surround sound decoding
- Dolby Atmos® processing for use with in-ceiling or "Height" speakers for more enveloping home theater sound
- Dolby Atmos height virtualization and dts virtual:x® create three-dimensional effects without height speakers
- IMAX® enhanced reproduces the full dynamic range of specially encoded imax soundtracks from compatible sources
- Video upconversion (up to 1080p and 4k) for analog and hdmi sources
- Audyssey speaker calibration and system optimization includes:
- Multeq® xt32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance for as many as eight seating positions
- Audyssey dynamic volume mode to keep listening levels steady
- Audyssey dynamic eq for fuller sound at lower listening levels
- Audyssey low frequency containment reduces the amount of bass that bleeds into other rooms
- Audyssey sub eq ht provides individual calibration for dual subwoofers, for even bass response throughout the room
- Built-in Wi-Fi for listening to music from a networked pc, free internet radio, and music services
- Built-In HEOS technology wirelessly connects compatible heos components for whole home audio
- Includes support for Pandora®, Siriusxm, and Spotify® (subscription required for some services)
- Free HEOS app offers easy wi-fi control, settings adjustments, and music selection and playback
- Works with amazon alexa and google home voice control assistants
- Apple airplay 2 lets you stream directly from an iphone® or ipad® and ask siri to play apple music
- Supports multi-room audio with compatible wireless speakers
- Built-in Bluetooth for wireless music steaming from smartphones, tablets, and compatible computers
- Plays high-resolution digital music files via usb storage device or a networked computer (pcm up to 24-bit/192khz resolution; dsd up to 5.6mhz)
- M-Dax (marantz dynamic audio expander) for better sound from mp3s and other digital music files
- Dual-room/dual-source output
- Amp assign function lets you use height 1 and height 2 speaker outputs for zone 2, front b, or bi-amping front speakers
- Powered and line-level stereo outputs for 2nd room allow 5.2- or 7.2-channel sound in main room
- HDMI Dual-Zone switching for watching video content from different sources in two zones simultaneously
- Supports 2nd zone output from digital sources
- Audio performance features:
- Marantz's hyper dynamic amplifier module (hdam) offers improved dynamic range and detail while reducing noise
- Current feedback circuit for accurate, natural sound at all volume levels
- Pure direct mode turns off unused circuitry for cleaner audio signals
- HDMI 2.0b audio/video switching: 8 in (includes 1 front-panel input), 3 out
- Hdcp 2.3 technology ensures compatibility with 4k ultra hd sources and tvs
- HDR-compatible for extended picture contrast and brightness with compatible 4k tvs and hdr-encoded content
- Supports HDR 10, Dolby Vision™, and HLG
- EARC (enhanced audio return channel) supports the most advanced surround sound formats, including dolby atmos and dts:x, via a single hdmi connection to your tv
- Passes full-resolution surround sound signals from over-the-air broadcasts and streaming media
- Component video switching: 2 in, 1 out
- Composite video switching: 4 in, 1 out (includes front-panel input)
- Digital audio inputs: 2 optical and 2 coaxial
- 6 analog stereo rca audio inputs (includes front-panel input)
- MM (moving magnet) phono input for connecting a turntable
- 7.1-channel preamp inputs
- 11.2-channel preamp outputs include outputs for 2 powered subwoofers
- Front-panel usb port for audio playback from usb memory devices
- Outputs for 11 speakers (front l/r, center, surround l/r, surround back l/r, height1 l/r, height2 l/r)
- Receiver can power a maximum of 9 channels at once
- Ethernet port for wired network connection
- Rs-232c, remote (ir), and 12-volt trigger connections for use with optional third-party controllers
- 1/4" headphone output
- Detachable power cord
General Features:
- 4k/60p and 3d video pass-through
- Free Marantz avr remote app lets you use your Apple or Android™ device as a wi-fi remote
- Setup assistant guides you through the initial connection process and settings
- Intuitive, full-color on-screen guide
- 4 smart select function buttons on the remote for one-touch power-up, source selection, and recall of volume and audyssey configurations
- Video select lets you listen to music while watching video from a different source
- HDMI standby pass-through allows hdmi switching without powering up receiver
- AM/FM tuner
- Remote control
- 17-3/8"W x 6-3/8"H x 15-3/4"D (9-1/8"H with wi-fi antennas raised)

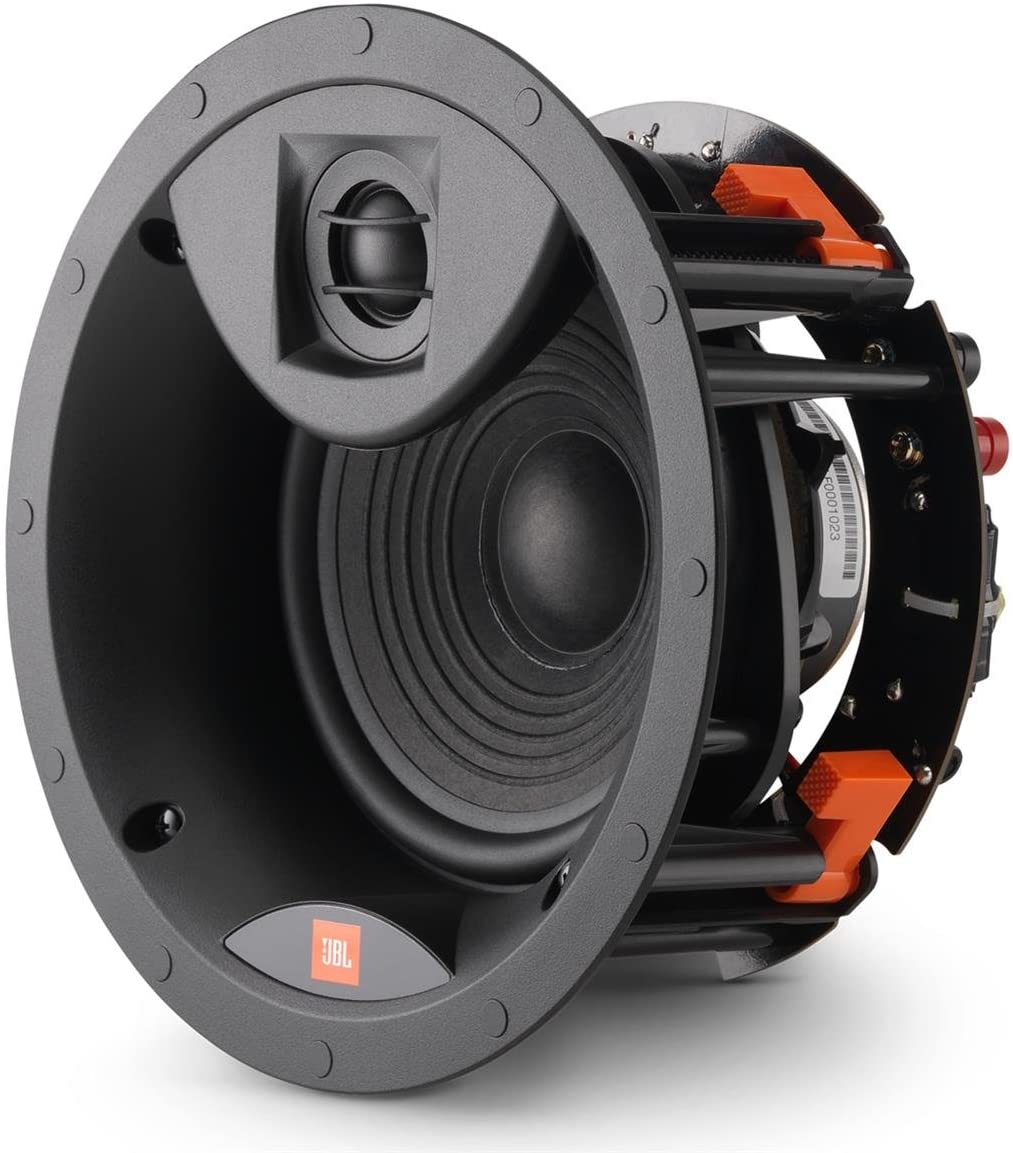

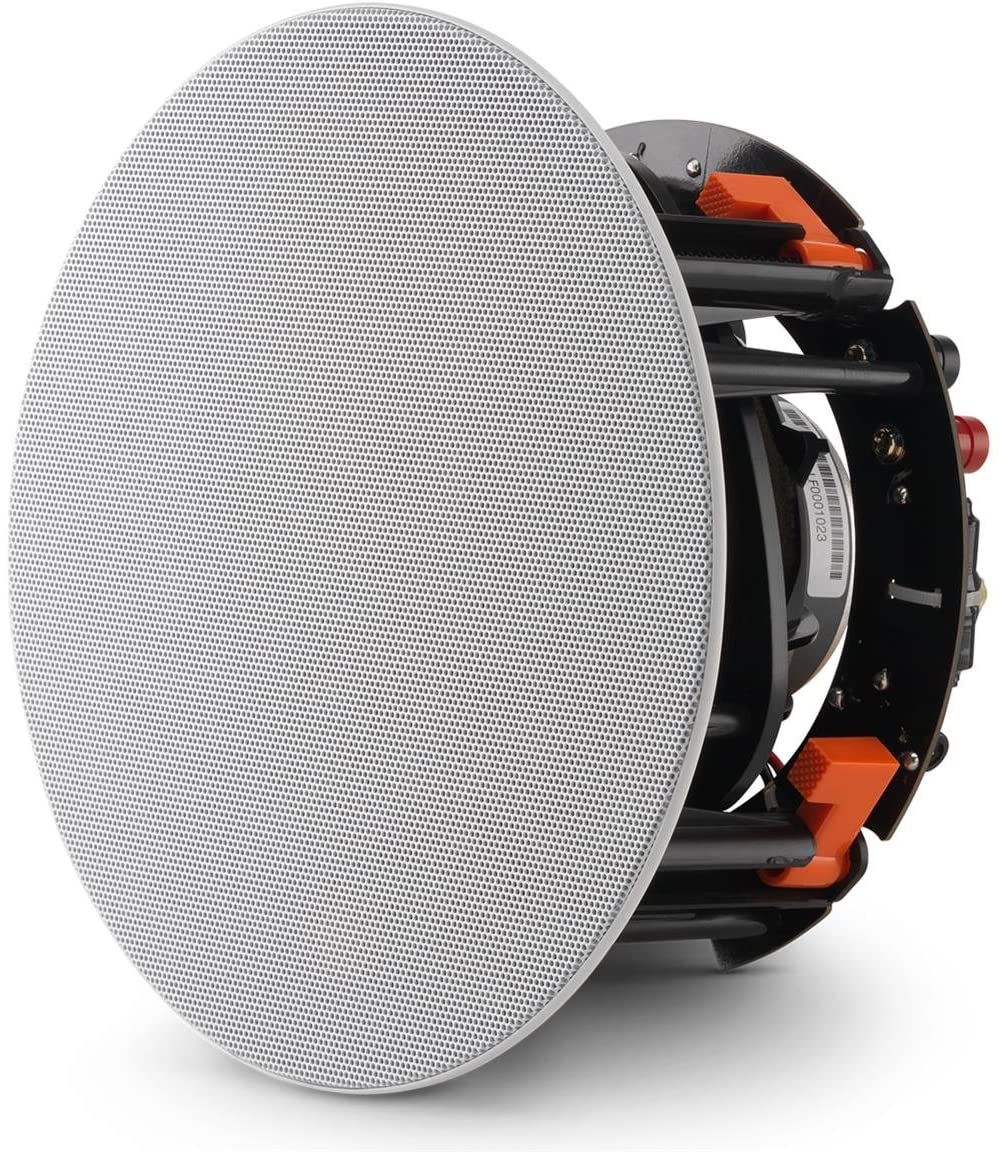

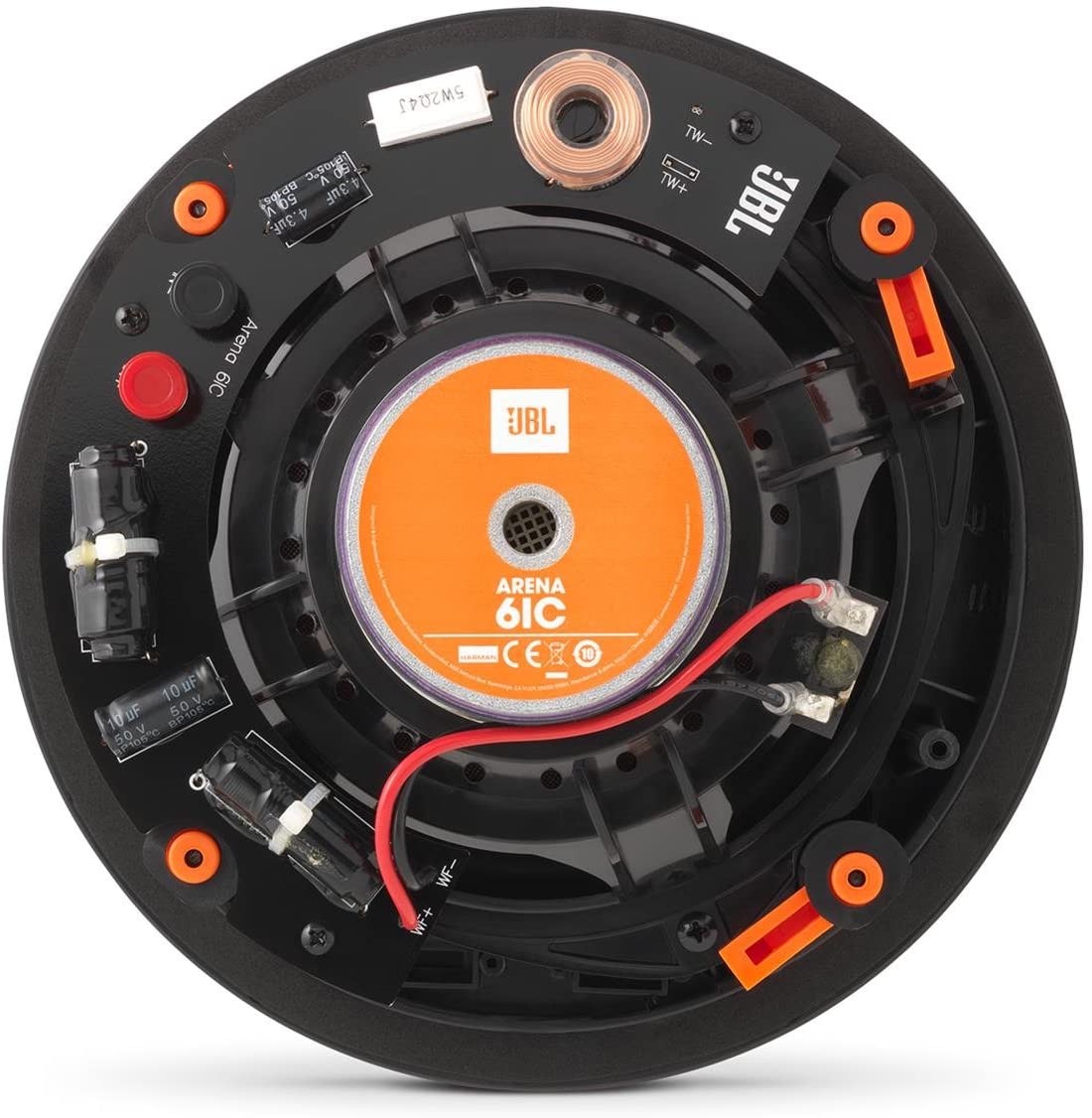

DIY Installation
JBL's rotating-cam design makes your in-ceiling installation go smoother. Once you have the 6IC in place, simply use a screwdriver to tighten each cam for a secure grip against the back of the ceiling material. If this is a do-it-yourself installation, check out our guide to installing in-wall and in-ceiling speakers, along with our selection of in-wall speaker wire.
Product Highlights:
- 6-1/2" poly cellulose woofer
- 1" silk dome tweeter
- Frequency response 38-20,000 Hz
- Power handling: up to 80 watts RMS
- 8-ohm impedance
- Sensitivity 86 dB
- Includes paintable magnetic grille
- Cutout diameter: 8"
- Grille Diameter: 9-1/8"
- Mounting depth: 4-11/16"
