Magnat Symbol X 160
HIGH-PERFORMANCE MULTI-FUNCTIONAL SPEAKERS
- Speakers for home audio and professional PA systems
- Home-recording monitor speakers
- Integrated wall mounting device, horizontally and vertically adjustable
- Perfect sound and very high power handling
- Indoor/Outdoor bookshelf speakers
- Splash-proof by IPX5 standard, corrosion-resistant materials
Universal 2-way shelf speaker
The big sister of the X 130 is equipped with a 165 mm bass-midrange driver. With an extended bass range that delves down to 30 Hz and an upper cut-off frequency of 36,500 Hz, it ensures full music enjoyment regardless of whether it´s used as a monitor speaker directly on a workstation, or as a speaker in a hi-fi configuration on a shelf or sideboard. An efficiency level of 92 dB and a maximum load capacity of 220 watts ensure a high dynamic range. The dimensions, however, remain pleasantly compact: Measuring 186 mm wide and 310 mm high, it is hardly any bigger than an A4 sheet. A weight of 3.3 kg, however, gives you an idea of just how much technology is incorporated in the Symbol X 160.

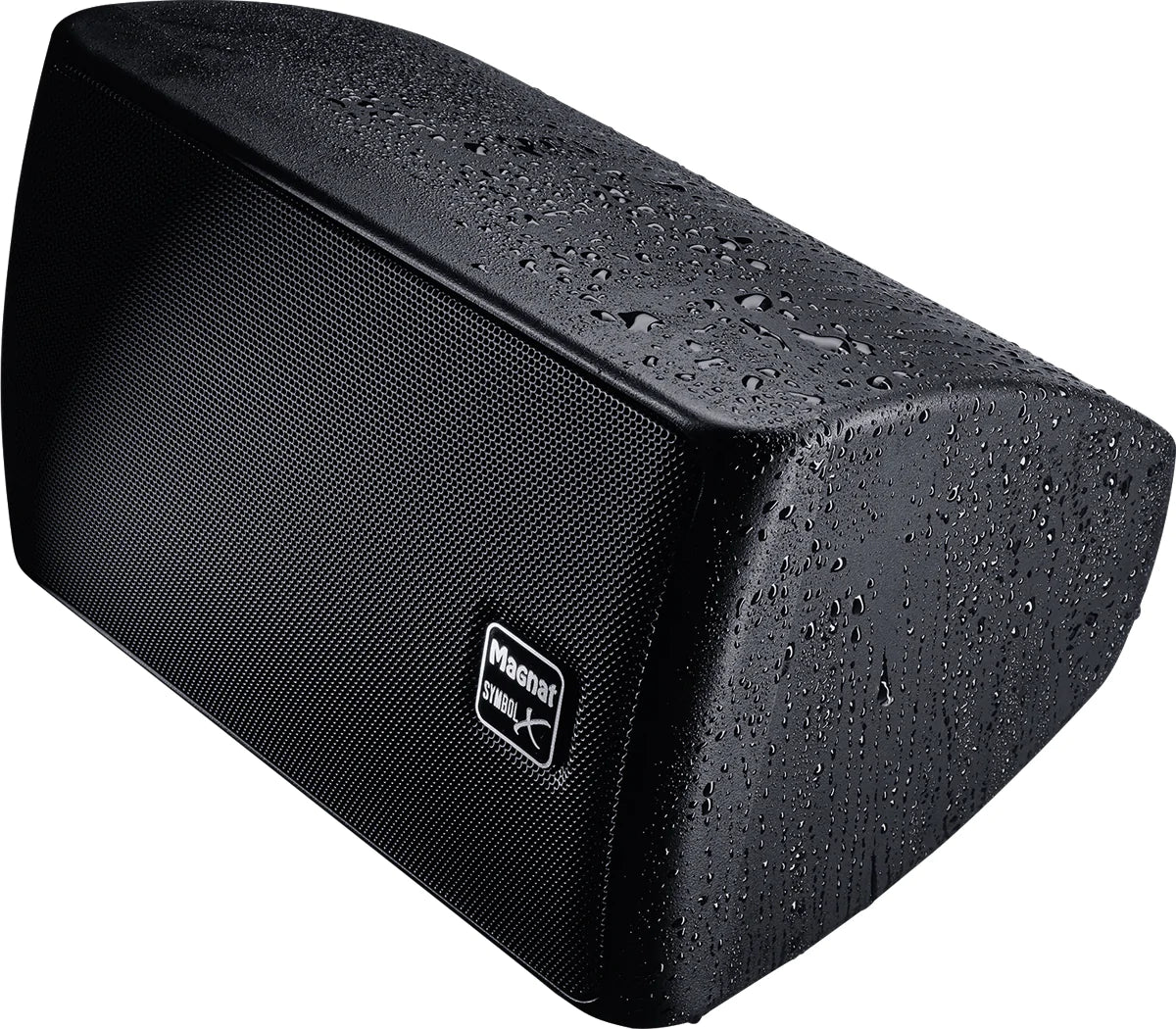

Speaking of the housings, they are not only timelessly elegant, but also extremely functional. IPX5 certification means that the Symbol X can be subjected to splash water without any problems.
CLEVER HOUSING CONSTRUCTION

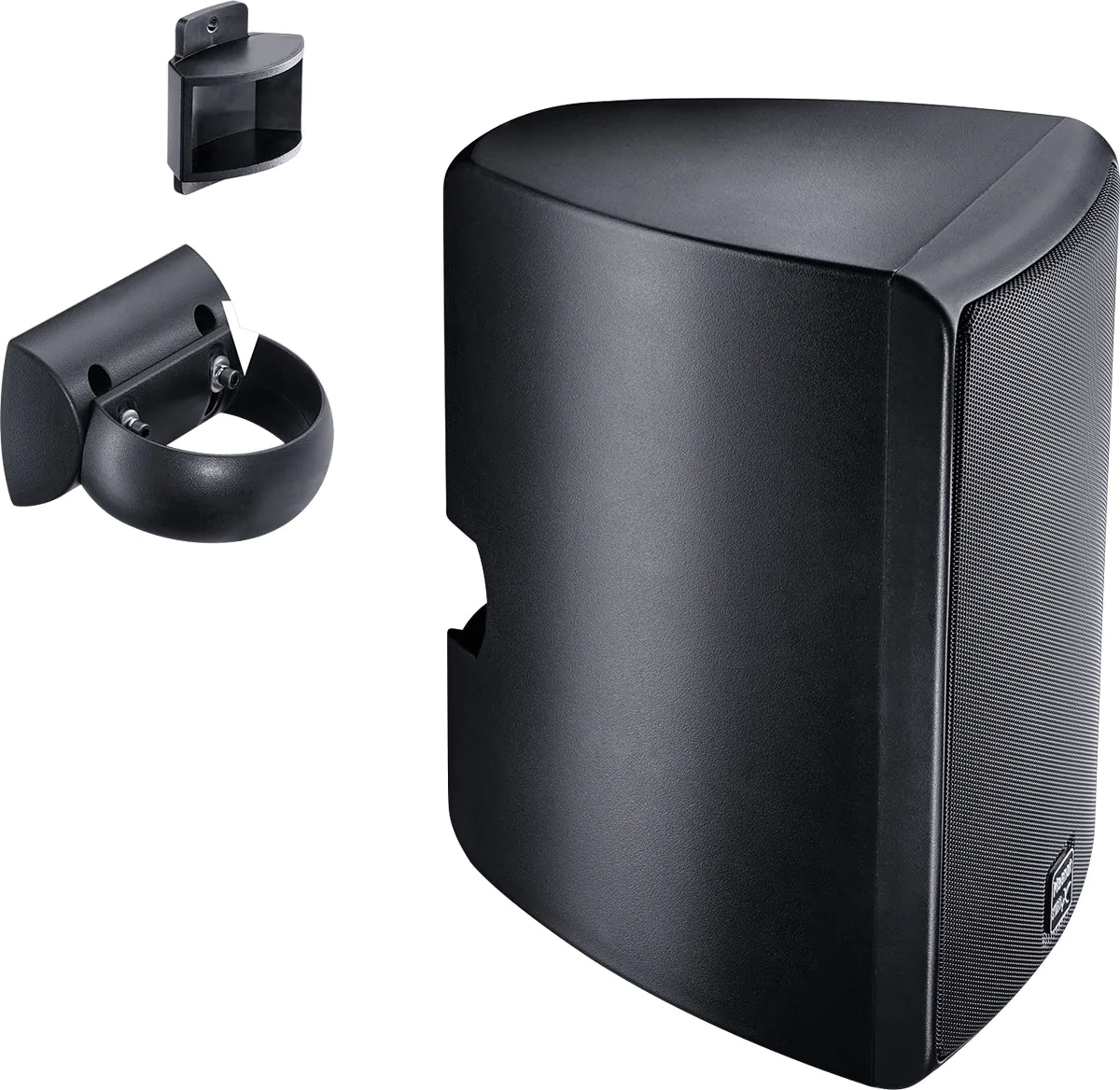

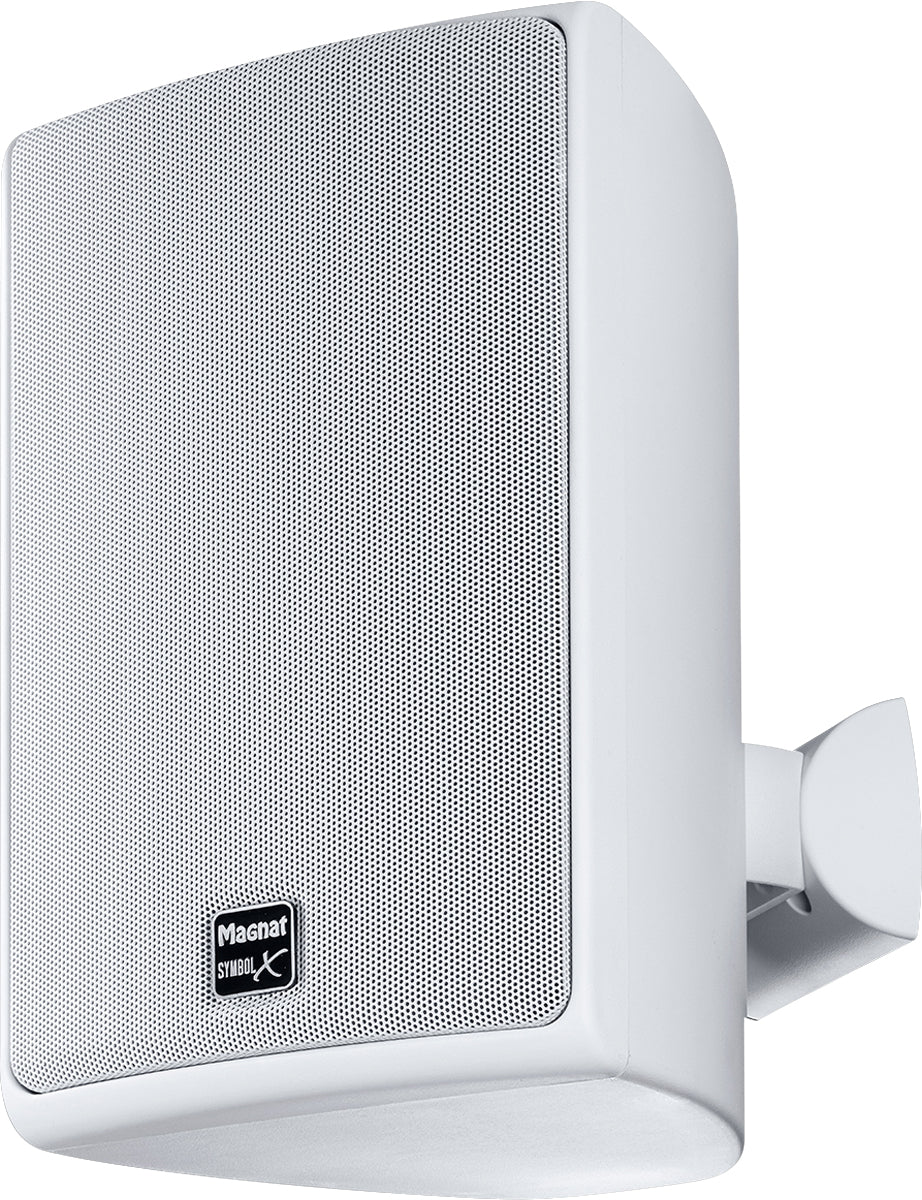

The integrated wall bracket not only allows the speaker to be installed securely, but it also allows it to be aligned horizontally and vertically to the listening position. Thanks to the integrated mounting options, it works perfectly both indoors and outdoors on walls, columns or pillars – out of the way, but always unmistakable.
RESILIENT SPEAKER TECHNOLOGY
Each Symbol X incorporates a fully-fledged two-way system. The powerful polyethylene tweeters with their neodymium drives are complemented by a 140 mm or 165 mm bass-midrange driver with polypropylene diaphragm and a suspension that enables long strokes and a high dynamic range.
|SYMBOL X 160 ||2-way speaker with bass reflex technology |
|DRIVERS ||1 x 6.5” woofer- midrange, 1” dome-tweeter |
|POWER HANDLING (RMS/MAX) ||110 / 220 watts |
|IMPEDANCE ||4 – 8 ohms |
|FREQUENCY RESPONSE ||30 – 36.500 Hz |
|CROSSOVER FREQUENCIES ||3.400 Hz |
|RECOMMENDED AMPLIFIER OUTPUT ||20 – 200 watts |
|SENSITIVITY ||92 dB |
|PROTECTION CLASS ||IPX5 |
|CABINET SURFACE ||Black, White |
|DIMENSIONS (WxHxD) WITHOUT WALL MOUNTING ||186 x 310 x 242 mm |
|WEIGHT ||3.4 kg |
