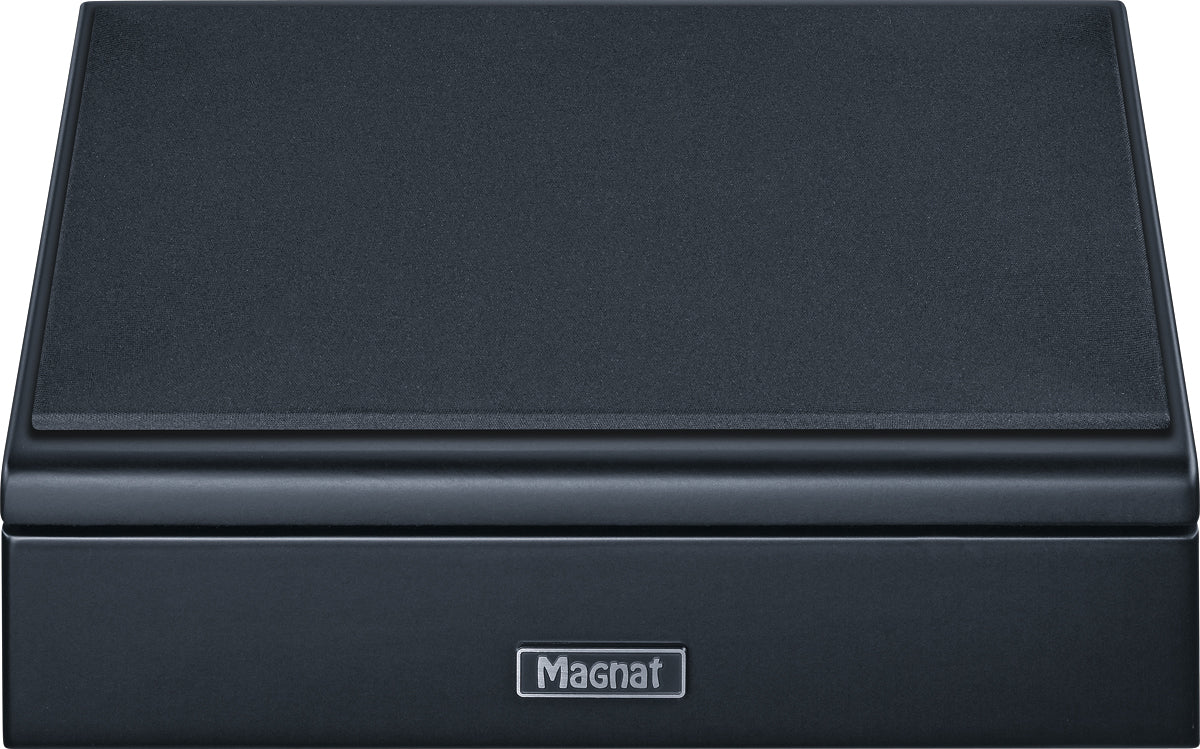

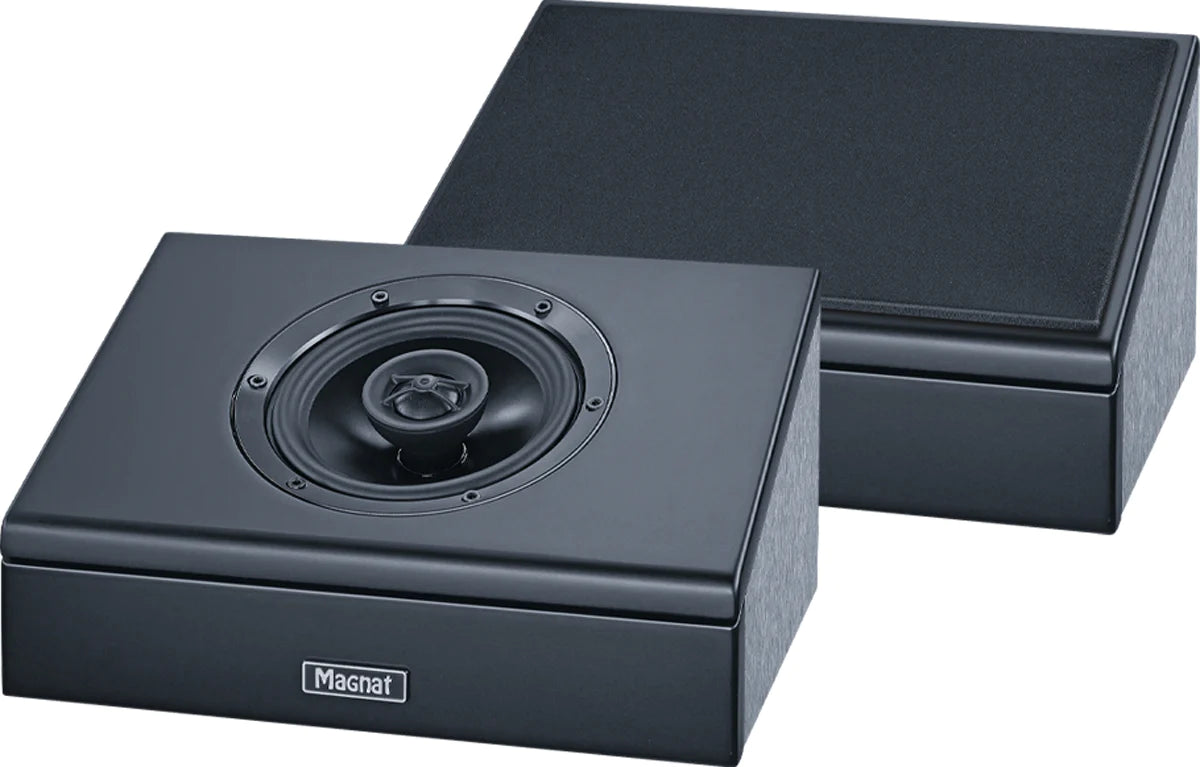

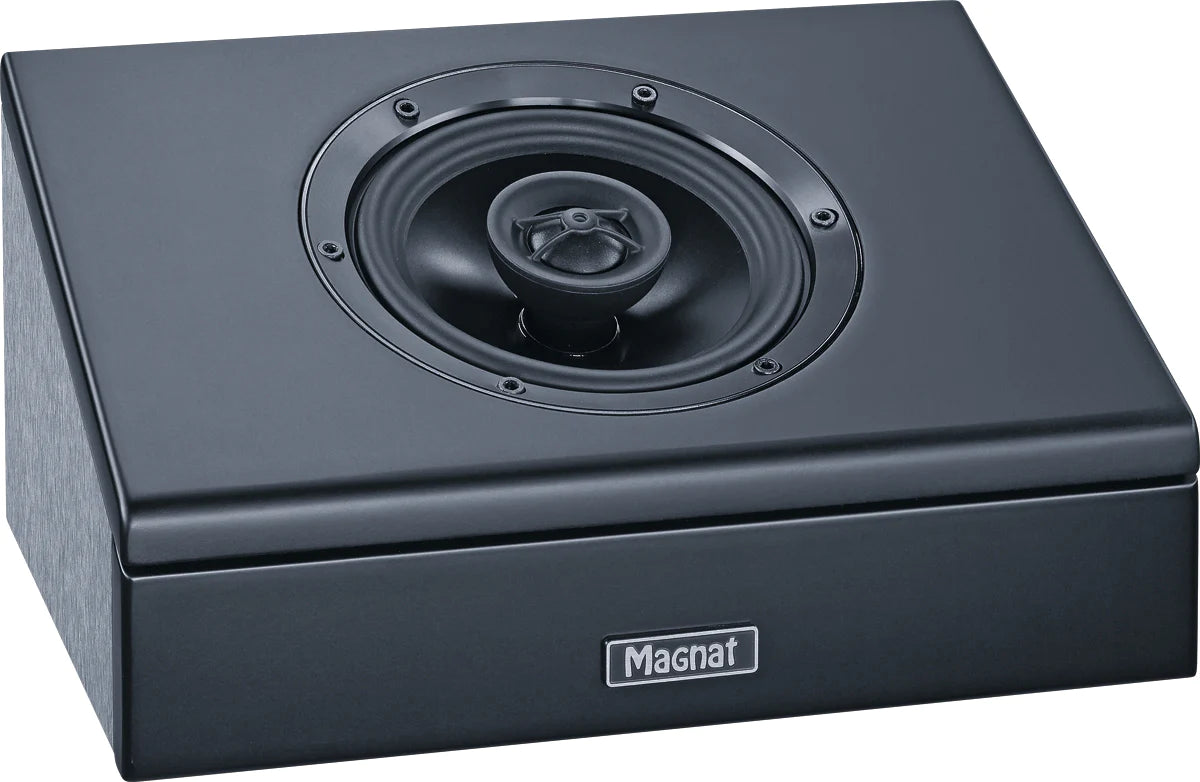

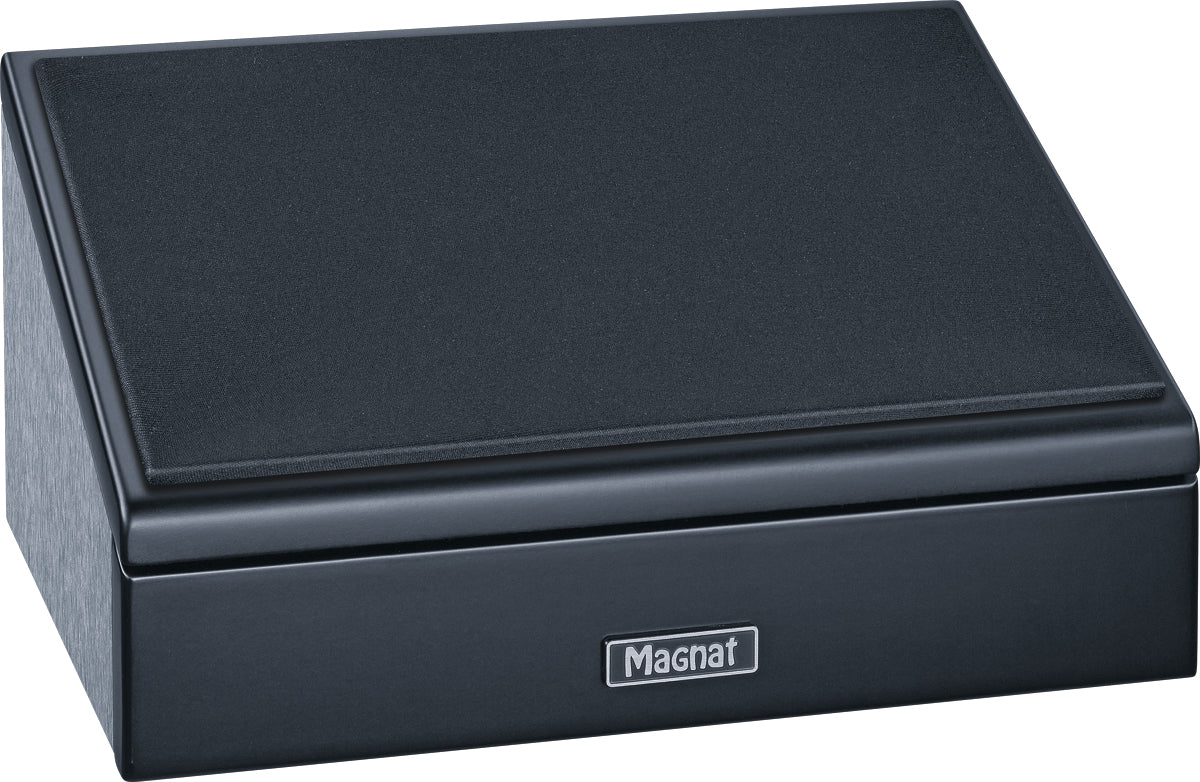

Magnat Cinema Ultra AEH 400-ATM

Sale
Rs. 69,900.00
Rs. 68,000.00

Magnat Cinema Ultra AEH 400-ATM

Key Features

  • Extends a home cinema system to include the third dimension for a perfect surround sound experience
  • Compacter, efficient add-on speaker with a large number of application options
  • High-performance coaxial driver with 13 cm woofer and 25 mm dome tweeter
  • Can be used as a Dolby Atmos-certified add-on speaker on LCR 100-THX or as an overhead speaker on the wall or ceiling
  • Switchable crossover for optimum sound with any application

With defined dispersion characteristics for perfect Dolby Atmos surround sound

Dolby also imposes extremely strict requirements to ensure that the demanding multi-channel procedure can generate perfect reproduction. The dispersion characteristics and position of the add-on loudspeakers are important. A subwoofer with an integrated tweeter, a so-called coaxial driver, is the best option here. The Cinema Ultra AEH 400-ATM is a coax with a 13 cm bass plus 25 mm tweeter cone and is a perfect fit, in terms of both external appearance and installation depth, on top of an LCR 100-THX – which is also where it should be according to the Dolby guidelines. For those cases where home cinema fans prefer to mount the excellent sounding AEH 400-ATM on the wall or ceiling, we have, instead of the frequency response optimised for ceiling reflection as stipulated by Dolby, included a second crossover for linear reproduction which can be activated via a toggle switch.

Specifications

Principle Dolby Atmos-enabled high-performance add-on loudspeaker with direct-radiating mode
Equipment 1 x 5,25" coaxial speaker
Power Handling (RMS / Max.)  50 / 120 watts
Sensitivity (2.8V/1m)  89 dB
Impedance  6 ohms
Frequency Response  45 – 37.000 Hz
Crossover Frequencies  Atmos-Modus: 3.200 Hz
Direct-Modus: 3.300 Hz
Recommended Amplifier Output  20 - 120 watts
Dimensions (WxHxD)  280 x 150 x 188 mm
Weight  3.7 kg
Cabinet surface  Front: black silk matt /
body: textured film - anthracite
