Description
- The DLA-NZ9 D-ILA projector is the world's first (as of September 2021, according to research by JVCKENWOOD) home theatre model to feature 8K/60p/4K120p input. It has a new 8K/e-shiftX proprietary technology with the 4-direction shift to reproduce 8K-quality images from 4K signals. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, a high-quality 18-element, 16-group 100 mm glass lens with a full aluminium lens barrel, and Ultra-High Contrast Optics contributing to delivering optical brightness of 3,000 lumens. BLU-Escent laser diode light source also contributes to projecting the high-resolution 8K image with full depth and dimensionality with up to 20,000 hours of longevity. Compatible with the latest HDR10+, the projector boasts industry-leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs 2021 projector models, and DLA-NZ9 is the high-end model.
- The Frame Adapt HDR technology, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of HDR10 content per frame and adjust the dynamic range in real time to the optimum range for video projection on projectors, has evolved into the second generation. As the culmination of the HDR image processing technology that we have cultivated up to now, we have completely reexamined the tone mapping algorithm in accordance with the scene and frame, and have achieved HDR images with higher definition and full of three-dimensional feeling by suppressing the whiteness especially in the high brightness area.
- Laser light source adjustment function that can be finely adjusted according to the environment and preference. After the update from the previous 3 steps, fine adjustment of 0 -100 steps is possible, and adjustment based on the brightness on the screen and flexible setting according to the use environment are possible.
- USB backup function that can save and write all settings at once.
- This function saves the settings on the main unit menu to a commercially available USB flash drive. Professional adjustments can be saved or backed up in advance to undo unintended adjustments by children or family members.
- These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.
- Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.
- Newly developed 8K/e-shiftX technology reproduces 8K image quality
- High brightness of 3,000 lm provides vibrant and dynamic images
- Native Contrast Ratio of 100,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
- HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
- Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation. Additional Frame Adapt HDR picture modes allows for optimum playback with the widest variety of lighting conditions or theater environments.** The feature supports software version v2.00 and later versions.
- Theater Optimizer function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping. HDR Quantizer with New Auto (Wide) level mode provides brighter/more dynamic HDR images. *
- New FILMMAKER MODE™ that faithfully recreates the creator’s intentions.*
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
- For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
- New 0.69-inch 4K D-ILA (4096 x 2160) device x 3.
- BLU-Escent Laser Light Source
- 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- 18-element, 16-group all-glass 100mm diameter high-quality lens.
- Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
- Wide Color Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
- Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles.
- ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
- Color Management System with 6-axis Matrix
- Auto-Calibration Function using an optical sensor.
- Wireless transmission options for 3D viewing
- D-ILA Technology Yes
- Chip Type 0.69-inch 4K D-ILA device
- Native Resolution 4096 x 2160
- Number Of Chips 3
- 8K/e-shiftX Yes
- Display Resolution 8192 x 4320
- Laser [1] Yes
- Type BLU-Escent Laser Diode
- Life Time (Standard Mode) 20000 hours
- Brightness 3000 lm
- Dynamic Contrast ∞ : 1
- Native Contrast 100000 : 1
- Dynamic Light Power control Yes
- Modes Mode 1 (gentle), Mode 2 (strong), Off
- Manual Aperture Yes
- Range -15 (stops down) to 0 (opens up)
- DCI-P3 Color Gamut Yes
- 100% REC 709 Yes
- Color Bit Depth 12 bit
- ISFccc Certification [2] Yes
- HDR10 Yes
- HDR10+ [3] Yes
- Frame Adapt HDR [4] Yes
- Theater Optimizer [5] Yes
- HLG Yes
- Auto Tone Mapping Yes
- Mastering Info Display Yes
- Info data MaxCLL and MaxFALL mastering data
- HDR Picture Modes BT.709 / BT.2020 / DCI / HDR
- Zoom 2 x
- Throw Ratio 1.35-2.75:1
- Diameter 100 mm
- Material All-glass
- Build 18-element, 16-group in full aluminium lens barrel.
- Lens Shift Yes
- Range Horizontal ± 43 %
- Range Vertical ± 100 %
- Motorized Zoom Yes
- Motorized Shift Yes
- Motorized Focus Yes
- Projection Display size (diagonal) 60 - 300 inch
- Memory Function Yes
- Number of user presets 10
- Lens Cover Yes

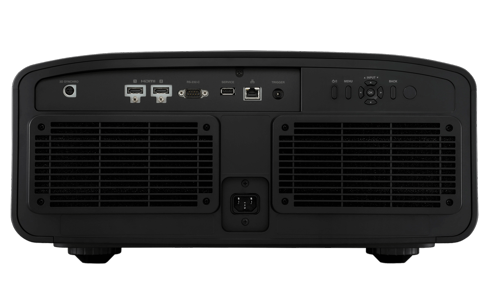

- HDMI [6] Yes
- Number of Inputs 2
- Data Rate 48 Gbps
- HDCP Version 2.3
- 8K60P signal input Yes
- 4K120p signal input Yes
- 4K60P signal input Yes
- Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
- PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
- Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
- Color Space Range Auto/ YCbCr4444 / YCbCr422 / RGB
- EDID Modes A and B (older hardware may need to use B settings)
- Trigger out Yes
- Connector Mini-Jack (3,5mm)
- Power DC 12V / 100mA
- 3D Synchro Yes
- Connector Mini DIN 3-pin
- LAN Yes
- Connector RJ45
- RS-232 Yes
- Connector D-sub 9-pin
- Service Yes
- Connector USB (Type A) for firmware update.
- 3D Capability Yes
- 3D Versions Frame Packing, Side-by-Side, Top & Bottom
- Frame Packing Resolutions 720p 60/50, 1080p 24
- Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50
- Top & Bottom Resolution 720p 60/50, 1080p/24
- 3D Emitter (Optional) Yes, PK-EM2
- 3D Glasses (Optional) Yes, PK-AG3
- Picture Modes Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
- Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
- Gamma Processing Depth 12 bit
- Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
- Color Management 6-Axis adjustable CMS
- MPC Yes
- Filmmaker Mode [7] Yes
- Low Latency Mode Yes
- Clear Motion Drive Yes
- Motion Enhance Yes
- Auto Calibration Yes
- Optional Probe needed Yes
- Installation Mode Yes
- Number of modes 8
- Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
- Anamorphic Modes 4 Modes (A, B, C, D)
- Control4 SDDP Yes
- Power Requirement AC100-240V, 50/60Hz
- Projector in Use 440W
- Standby Eco Mode 0.20W
- Network Standby 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)
- Switchover time Approx. 15 min. (To standby or networked standby; default)
- Fan Noise 24 dB
- Eco Mode Yes
- Standby Timer Yes
- Operating Temperature 5°C to 35°C
- Operating Humidity 20% to 80%
- Installation Angle Horizontal +/- 5 degree / Vertical +/- 10 degree
- Installation Height Below 2,000 m
- Product Dimensions (WxHxD) 500 x 234 x 528 (mm)
- Product Weight 25.3 Kg
- Package Dimensions (WxHxD) 640 x 415 x 665 (mm)
- Package Weight 30.7 Kg
