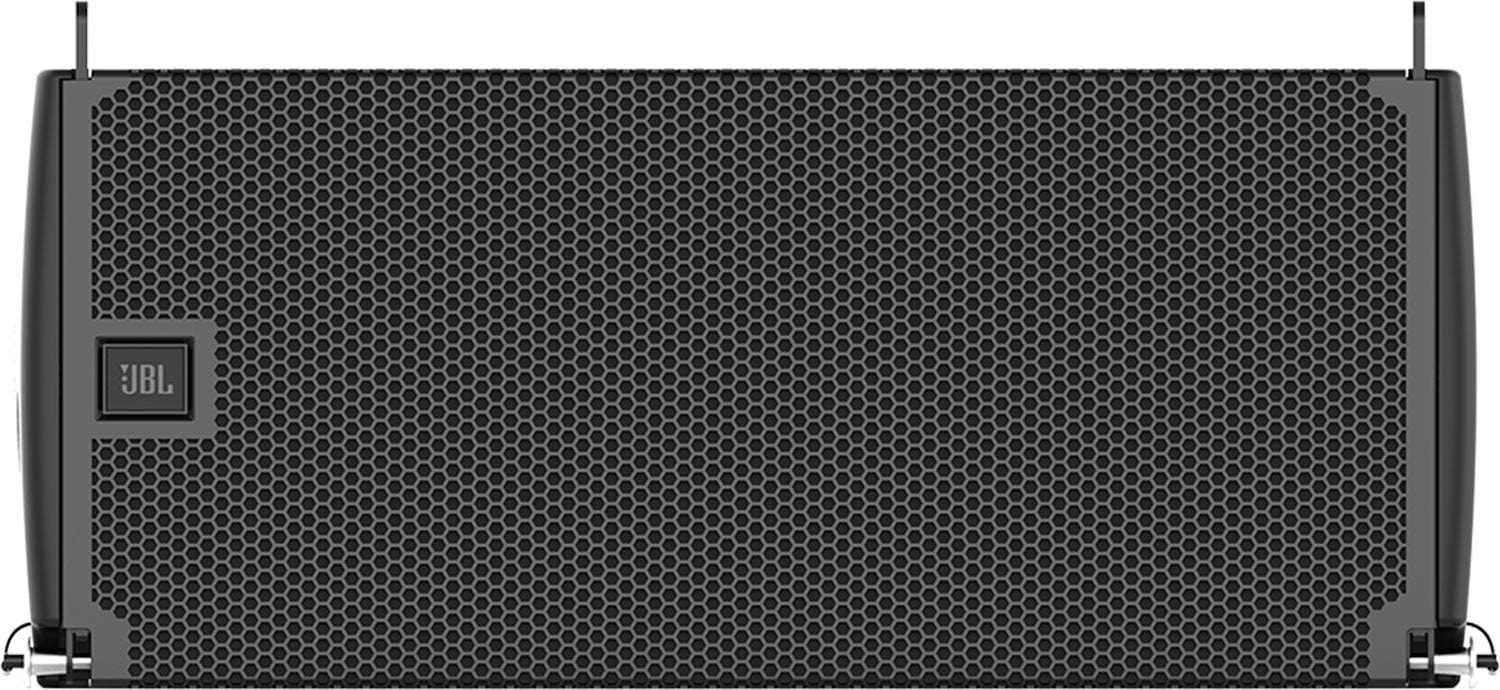

JBL SRX910LA Dual 10″ 2-Way Powered Line Array Column Speaker

Highlights

• High-performance, high-density system solution in a truck-pack friendly format

• High-power-handling transducers deliver low distortion, high fidelity, and class-leading output

• Built-in, passively cooled Class D amplification with a universal power supply

• Dual Ethernet ports with Neutrik etherCON connectors

• Supports HARMAN HControl Ethernet

Audio professionals in need of a scalable mid- to large-sized sound reinforcement system will be impressed with the JBL SRX910LA, a dual 10" powered line array speaker well suited for rental companies, touring artists, DJs, and installations. The integrated DSP and amplification offer a true plug-and-play experience while providing consistency and optimum performance anywhere in the world.

The dual 10" neodymium Differential Drive woofers and 3" compression driver are powered by the built-in Class-D amplifier and provide a frequency response of 53 Hz to 19 kHz at 135 peak SPL. The computer-designed enclosure is made from composite materials, which offer remarkable performance while remaining compact and lightweight. The 3-point rigging system allows for flexibility in deployment, whether ground stacking or rigging. A full-featured software package provides users control of the system on various platforms including Windows, Mac, and iOS for iPad.

User-controllable DSP
LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

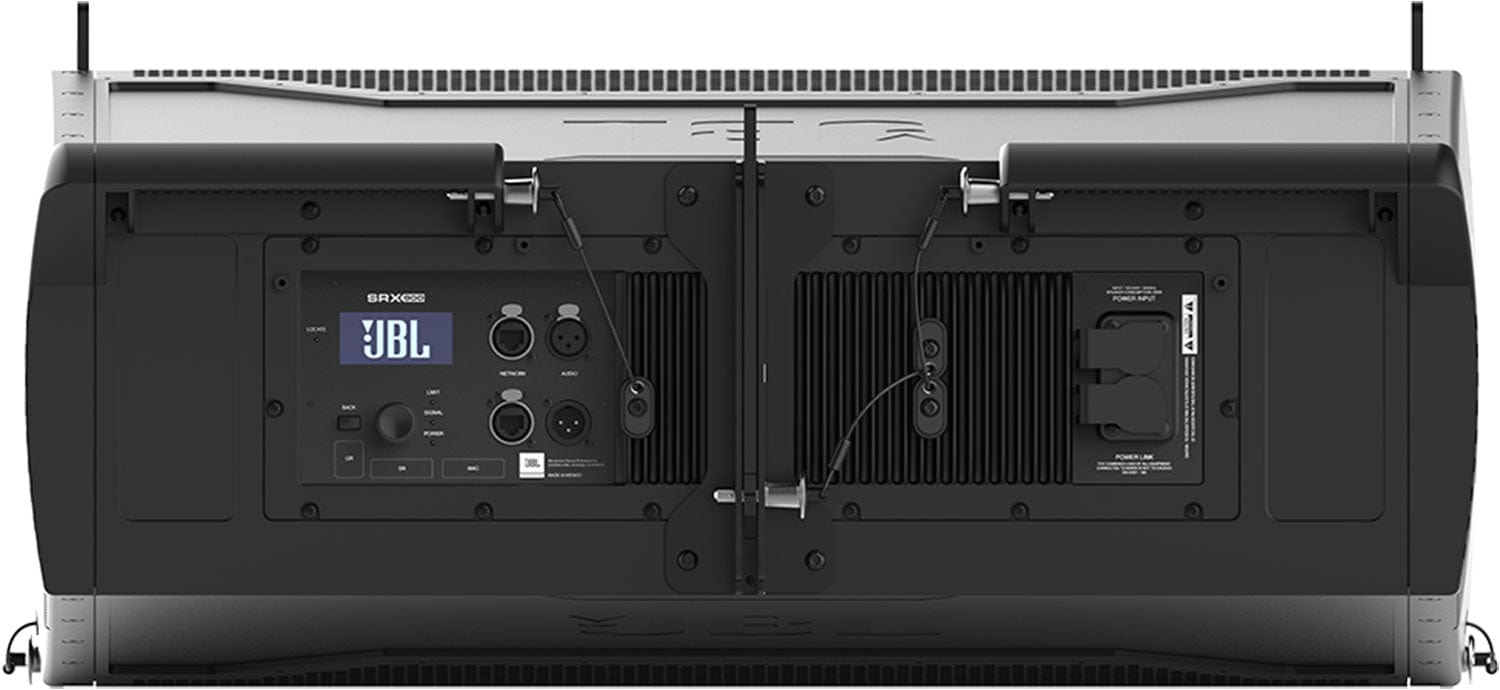

Rear-panel LCD provides complete access to control features
Reinforced composite loudspeaker enclosures

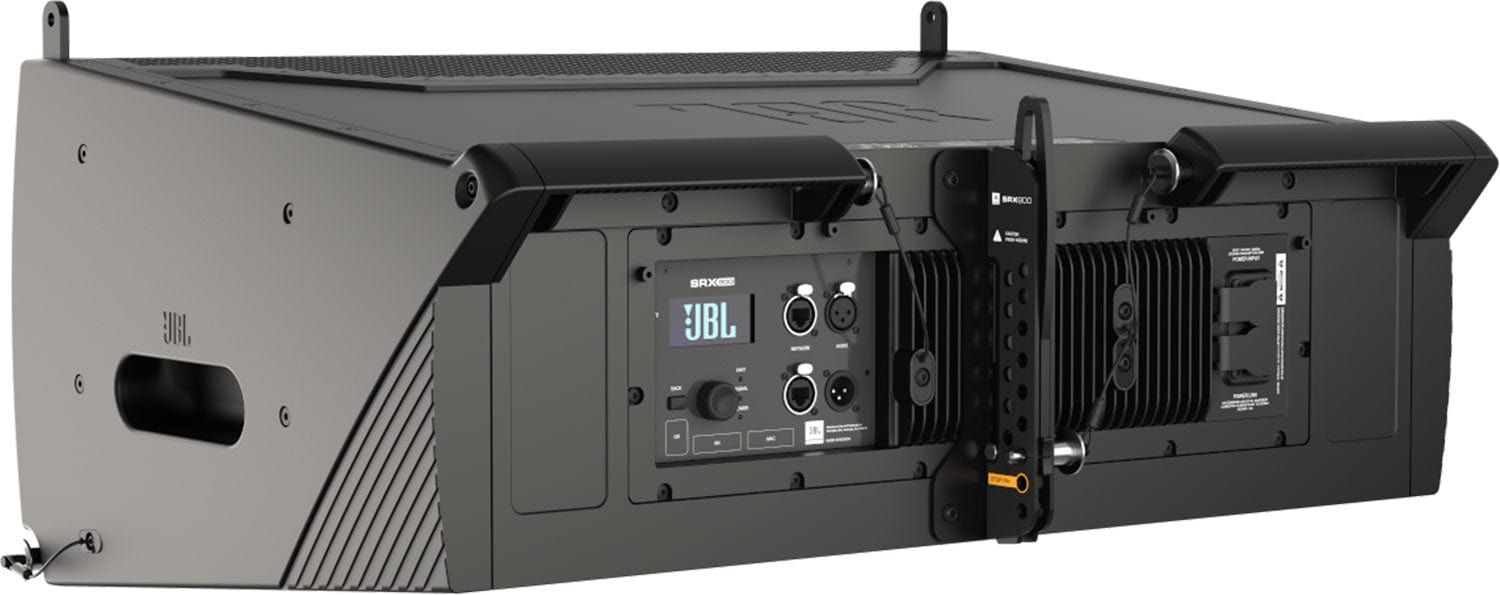

Innovative three-point rigging system
Acoustic Design
At the heart of the SRX900 Series acoustic design is JBL's proprietary Radiation Boundary Integrator, adapted from the groundbreaking VTX Series of line array loudspeakers. The RBI device mounts both the high- and low-frequency transducers on a single horn, improving horizontal directivity while reducing cabinet size. Precisely placed low-frequency projection apertures work in tandem with the high-frequency horn to seamlessly integrate the three symmetrically mounted drivers. The unusually large horn extends low-frequency control and reduces unwanted energy behind the array.
Powered Solution
The fully integrated built-in amplifier and DSP are based on proven JBL technologies and explicitly packaged to fit the needs of the SRX900 Series. The DSP includes everything needed to optimize a system, including 24 user-adjustable filters, 2000ms of delay, and advanced features like array size compensation and FIR-based throw distance correction filters.
Pro Build Quality
SRX900 Series line array loudspeakers are housed in FEA-optimized composite enclosures that offer excellent size-to-weight ratio and increased internal volume. CAD-optimized structure stiffeners control flexing, resulting in a rigid, lightweight enclosure. Speakers are designed for a clean, modern look, with enclosed side panels and integrated handles.
Versatile and Scalable
The SRX900 Series offers a complete system solution, including speakers, subwoofers, accessories, and software that support a variety of configurations and simplify storage, transport, and rigging. Because systems are scalable, it's easy to start with a small system and add components over time. All SRX900 products have been designed to work seamlessly with other JBL tour sound products, with common voicing targets and phase characteristics that ensure systems combine coherently.

Configuration
Active 2-Way
Enclosure Type
Bass-Reflex Line Array
Total Power Capacity
600 W RMS
880 W Peak
HF Driver
1 x 1.5" / 38.1 mm Horn-Loaded Compression Driver
LF Driver
2x 10" / 254 mm Woofer
Frequency Range
53 Hz to 19 kHz -10 dB
Color
Black
Enclosure Type
Bass-Reflex Line Array
Total Power Capacity
600 W RMS
880 W Peak
Amplifier Power Rating
LF:
1 x 400 W RMS
1 x 580 W Peak
HF:
1 x 200 W RMS
1 x 300 W Peak
Amplifier Class
Class-D
HF Driver
1 x 1.5" / 38.1 mm Horn-Loaded Compression Driver
HF Voice Coil
3" / 76.2 mm
LF Driver
2x 10" / 254 mm Woofer
LF Voice Coil
Dual 2" / 50.8 mm
Magnet
Neodymium
Frequency Range
53 Hz to 19 kHz -10 dB
Frequency Response
60 Hz to 18 kHz -3 dB
Maximum SPL
135 dB (Peak)
Coverage Angle
105° H
Input Sensitivity
+6 dBu
Max Input Level
21 dB
I/O Impedance
XLR Line Input:100 Kilohms
Audio I/O
2x XLR 3-Pin Balanced Line Input/Output
Network I/O
2x etherCON (Control/Network/Proprietary) In/Out
Alignment Delay
Yes
Phase Adjustment
Yes
Digital Signal Processing
Delay, FIR Filter (Adjustable via Optional Software)
Maximum Sampling Rate
48 kHz / 24-Bit
Power
AC Input Power    100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x PowerCON TRUE1 Input
1x PowerCON TRUE1 Output
Current Consumption
120 VAC:
1.9 to 7 A
240 VAC:
1 to 6.2 A
Physical
Color   Black
Mounting
Integrated Rigging
Handles
1x Each Side
Cooling
Convection, Fan (Variable Speed), Heat Sink
Construction Material
Aluminum, Plywood, Polypropylene
Dimensions
28.2 x 20.5 x 12" / 716.3 x 520.7 x 304.8 mm
Weight
59 lb / 26.8 kg
Packaging Info
Box Dimensions (LxWxH)
32 x 25.25 x 17"
In the Box
JBL SRX910LA Dual 10" Powered Line Array Loudspeaker
2 x powerCON TRUE1 Power Connectors
Manufacturer Warranty (Drivers)
Manufacturer Warranty (Amplifiers)
Manufacturer Warranty (Enclosure)
Essential Power Cables (Not Included)
