Description
10-inch Powered PA Speaker with Bluetooth
Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.
The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology: JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application.
The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.
With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.
JBL EON710 Powered PA Speaker Features:
- 1300-watt amplifier delivers exceptional headroom with power to spare
- JBL waveguide technology provides smooth, transparent sound to everyone in your audience
- Onboard EQ presets allow setting the system for various applications
- Access PA functions via LCD screen
- Bluetooth integration for convenient control of volume and EQ parameters
- Bluetooth 5.0 audio streaming
- XLR loop through for routing signal to additional EON700-series speakers
Tech Specs
- Powered:Yes
- Power Configuration:Bi-amped
- Channels:3-channel mixer
- LF Driver Size:10″ Ferrite Woofer
- HF Driver Size:1″ Neodymium Tweeter
- LF Driver Power Amp:1000W (peak), 150W (continuous)
- HF Driver Power Amp:750W (peak), 40W (continuous)
- Total Power:1300W Class D (peak), 650W (rms)
- Inputs:2 x XLR-1/4″ combo
- Outputs:1 x XLR (thru)
- Bluetooth:v5.0
- Wireless:Bluetooth
- Frequency Range:52Hz-20khz (-10 dB)
- Crossover Frequency:2kHz
- Maximum Peak SPL:125dB
- Horizontal Coverage Angle:110 Degrees
- Vertical Coverage Angle:60 Degrees
- Enclosure Material:Polypropylene
- Mounting Options:4 x M10 Suspension points, 36mm Pole socket, Universal Yoke bracket holes
- Power Source:Standard IEC power cable
- Height:23.11″
- Width:13.07″
- Depth:11.81″
- Weight:26.23 lbs.
Features
- Custom-designed 10-inch woofer
- 2414H compression driver
- Redesigned high-frequency horn
- Power: 1,300W peak / 650W RMS
- Frequency response: 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB)
- Max SPL: 125 dB
- Dispersion: 110° H x 60° V
- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
- Built-in 3-channel digital mixer
- Backlit color LCD screen provides easy access to functions
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control
- Durable talc-reinforced polypropylene cabinet and metal grille

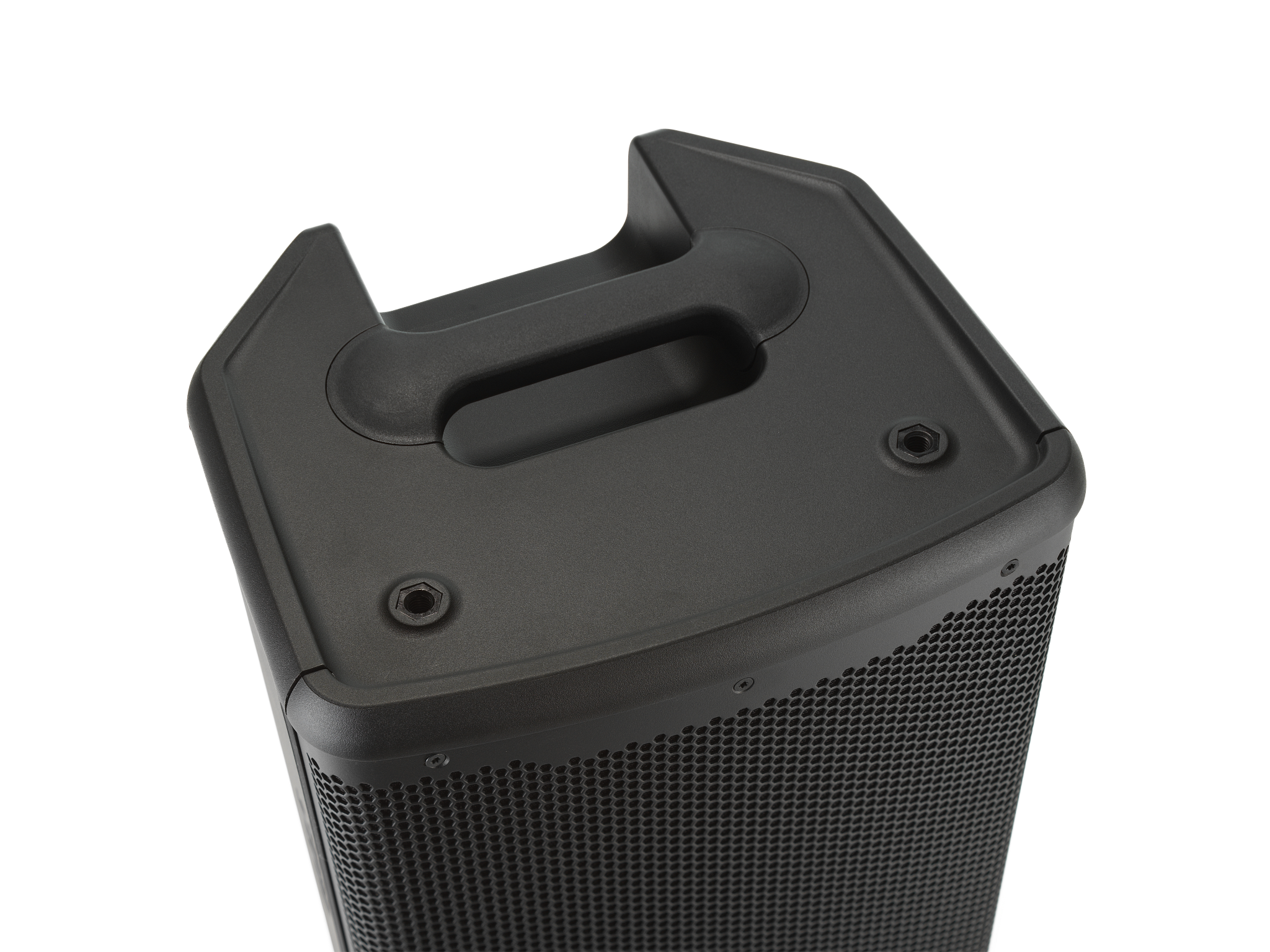

- Ergonomic handle simplifies transport
- Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
- Dimensions: 23.11 x 13.07 x 11.81 in (587 x 332 x 300 mm) (HxWxD)
- Weight: 26.2 pounds (11.9 kg)
- Shipping dimensions: 24.72 x 17.63 x 16.37 in (628 x 448 x 416 mm) (HxWxD)
- Shipping weight: 33.1 pounds (15 kg)
More Details
Acoustics and Amplifier
JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.
The EON710’s woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL’s powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. The speaker is powered by 1,300 watts of ultra-efficient discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.
Advanced DSP and Control
The EON710’s advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth audio streaming and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity. Set up TWS (True Wireless Stereo) Bluetooth streaming using a free firmware update available in the JBL Pro Connect app.
System Versatility
EON710 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.
Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)
Rugged and Reliable
All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it’s turned on.
The EON710 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.
Like every JBL Professional product, the EON710 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.
<<<< DOWNLOAD USER GUIDES CLICK HERE >>>>
Specifications
| System Type | 10IN Powered Loudspeaker |
| Woofer Model | 710G |
| Woofer Size | 10" |
| Woofer Magnet | Ferrite |
| Woofer Voice Coil | 2" |
| Tweeter Model | 2414H Compression Driver |
| Tweeter Size | 1" |
| Tweeter Magnet | Neodymium |
| Transducer Impedence | LF 4ohm rated, HF 8ohm rated |
| Max SPL | 125dB @1m/4Pi |
| Freq Range -10 | 52Hz - 20kHz |
| Freq Range -3 | 65Hz - 20kHz |
| Hor Dispersion | 110° |
| Vert Dispersion | 60° |
| Power Rating | 1300W peak / 650 RMS |
| AC power input | 100V-120V or 220V-240V |
| Cooling | Passive |
| LED indicators | 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
| Input Impedance | 50k/100k un-balanced/balanced |
| Input Gain | -∞ to +36db |
| Crossover Frequency | 2 kHz |
| I/O |
2 XLR Combo Jacks / BT 1 XLR M Thru |
| Cabinet | PP+10% Talc |
| Grille | 16GA perforated steel with acoustically transparent black cloth backing |
| Suspension / Mounting | 4 M10 Suspension points, 36mm Pole Socket, Universal yoke bracket holes |
| Handles | 1, Cable channel on bottom |
| Net Weight | 12kg (26.46 lbs.) |
| Gross Weight | 15.2kg (33.51 lbs.) |
| Product Dims | HxWxL 587x332x305mm (23.11x13.07x12 in.) |
| Shipping Dims | HxWxL 606x439x407mm (23.86x17.28x16.02 in.) |
