Description
Product Info:
- 80-watt mono power amplifier for commercial audio systems
- rated into 4 or 8 ohms (at 1 kHz) with less than .5% THD
- supports 70-volt and 100-volt distributed audio systems without the need for a separate transformer
- uses Crown's high-efficiency DriveCore™ technology to provide excellent audio performance
- independent bass and treble controls
- illuminated rings around buttons and dials for easy operation in darkened environments
- fanless, space-saving single half-width rack space (1U) design
- rack mounting kit included
- Energy Star® certified
- compliant with HARMAN's GreenEdge™ environmental initiative
Inputs and Outputs:
- RJ-45 connector for use with an in-wall volume control (not included)
- 3-pin Euro-block connectors with line/mic input switch for balanced input sources
- RCA input pair sums unbalanced stereo inputs to mono
- 5-pin Euro-block main output compatible with low impedance or constant voltage systems
Dimensions and Warranty:
- 8-5/8"W x 1-3/4"H x 11-15/16"D
- weight: 6.9 lbs.
- warranty: 3 years
Key Features
Features
DriveCore Technology: The JBL CS series utilizes DriveCore technology developed by Crown, another Harman brand. DriveCore technology integrates the amplifier drive stage into the power output stage, and fuses everything into a chip the size of a dime. This significantly reduces the size and weight of the amplifier. The CSA180Z is rated at 80 watts x 1 channel (into 4- or 8-ohms) @ 1kHz with less than .5% THD.
Harman GreenEdge: The JBL Commercial amplifier is manufactured under Harman's GreenEdge environmental initiative, utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process, and conforming to lead-free RoHS standards and other environmentally-conscious manufacturing processes. The result is an 80% improvement in efficiency over previous models. In addition, the CS series amplifier is EnergyStar certified.
Controls: The JBL CSA180Z commercial series amplifier offers front and rear panel controls.
- Volume Control: A rotary volume knob lets you control the output of the amplifier. The illuminated ring surrounding the volume control will light green with the presence of a signal. If the signal reaches the threshold of clipping or audible distortion, the ring will glow red.
- Bass & Treble: The JBL CS series amplifier offers independent Bass (+/-10dB @ 100kHz) & Treble (+/-10dB @ 10kHz) adjustment. A small flat-blade screwdriver is needed to adjust bass & treble.

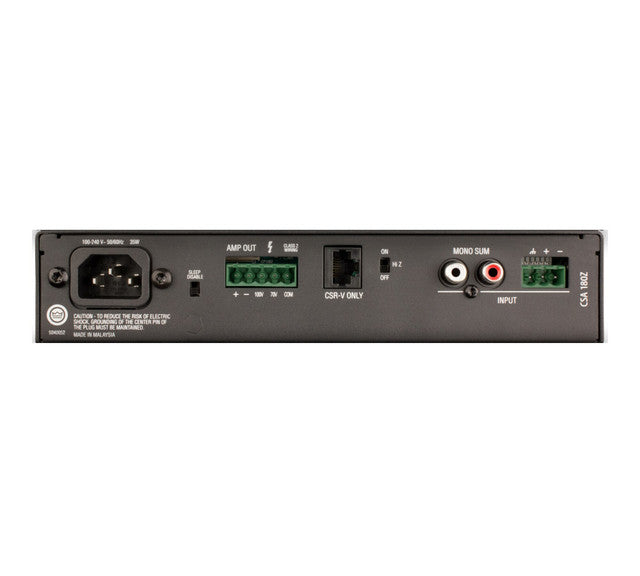

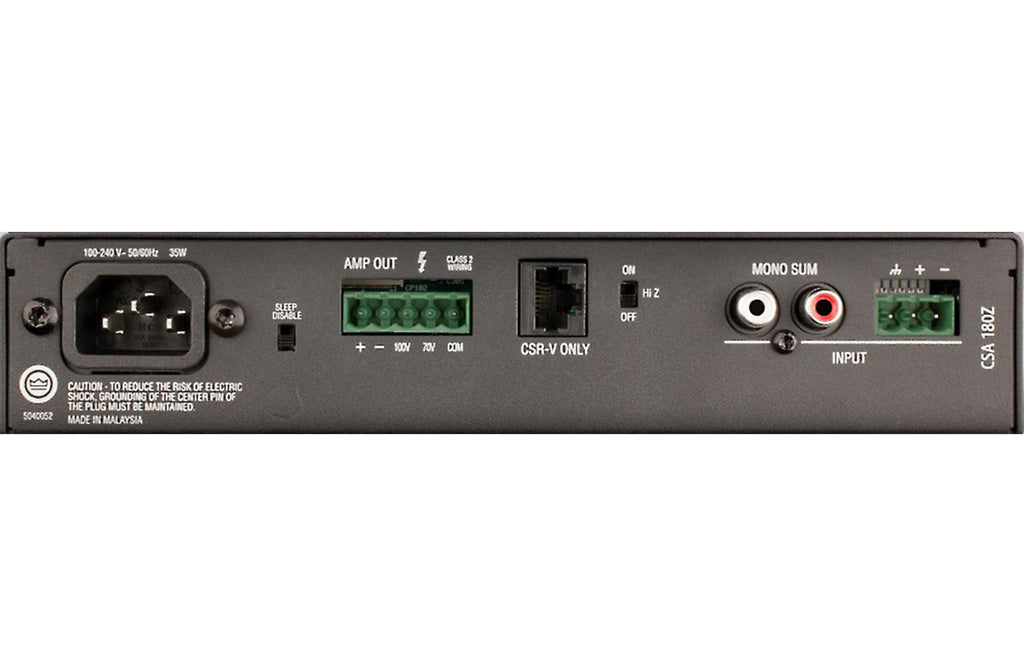

- HI-Z Switch: When this rear-panel switch is in the "Off" position, the amplifier is configured to drive low impedance speakers (4-Ohm minimum). With the Hi-Z switch set to "On", the built-in output transformer is activated allowing the unit to drive 70V or 100V speaker systems directly when connected to the appropriate output terminals.
- High Pass Filter: As an added feature when driving high impedance speakers in HI-Z mode, the system automatically switches in a 70Hz high pass filter. The filter prevents potentially damaging subsonic signals from going to the amplifier by eliminating signals below 70Hz.
Unbalanced & Balanced Inputs: The JBL CSA180Z commercial series amplifier is equipped with a stereo RCA unbalanced input which will stereo sources. The amplifier is also equipped with a 3-pin Euro-block connector that can be used as a balanced or unbalanced input.
Low Impedance or Constant-Voltage System Output: The CSA180Z is designed to power low impedance or constant-voltage speaker systems. There is a 5-pin Euro-block connector for a variety of output configurations. To drive distributed speaker systems designed to operate at 70V or 100V, the 5-pin Euro-block connectors have designated terminals for 70V, 100V and Common. For 8-ohm speakers, the + and - terminals should be used.
Remote Volume Control: An RJ-45 port is provided on the back panel for plugging in a CSR-V Remote volume controller via Ethernet cable.
Rack Mountable: The JBL CSA180Z commercial series amplifier is rack-mountable in a 1U half-rack space, and includes a rack-mount kit. Hardware is also supplied to mount two CSA180Z amplifiers in a 1U rack space.
Sleep Mode: To save energy, the amplifier is designed to go into sleep mode after approximately 2 hours operating with no signal at any of the inputs. Return of signal (-36dBu) to any input will wake the amplifier from its sleep mode. The sleep mode can be disabled by activating the Sleep Disable switch on the rear panel.
Detachable AC Power Cord: The JBL CSA180Z includes a detachable 34" AC power cord (IEC 3-prong).
Whats In The Box
- Mono-channel amplifier
- 34" AC power cord (IEC 3-prong)
- 2 Euro-block connectors
- Long angle bracket
- Rear angle bracket
- 2 Front-angle brackets
- 2 Flat brackets
- Eight M3x8mm screws (lock/flat-washers installed)
- Eight M3x5mm screws
- Four M5x20mm screws (flat-washer installed)
- Six M5x10mm screws
- 6 Flat-washers
- 6 Lock-washers
- 4 Self-adhesive rubber pads
- Operation Manual
Efficient power for your commercial audio system
The JBL CSA 180Z provides 80 watts of clean, efficient power to drive a small sound system. It can power several speakers effectively in a 70-volt commercial system. It's compatible with JBL's CSR-V volume control so you can hide the amp away in an equipment cabinet. A rack mounting kit is included.
Specifications
Specification | Details |
---|---|
Power Output | 80W (also listed as compatible with 40W/120W) |
Output Channels | 1 |
Input Sensitivity | 1.4Vrms for 8-ohm load |
Input Impedance | 20K ohms (balanced) / 50K ohms (unbalanced) |
Phantom Power | 27VDC |
AC Line Voltage | 100–240V AC, 50/60 Hz |
Dimensions (H x W x D) | 1.7 x 8.6 x 11.9 in (43.3 x 218.5 x 303.4 mm) |
Cooling | Fanless |
Wall Controller Support | JBL CSR-V via RJ45 (Ethernet cable) |
Certifications | Energy Star® Certified |
