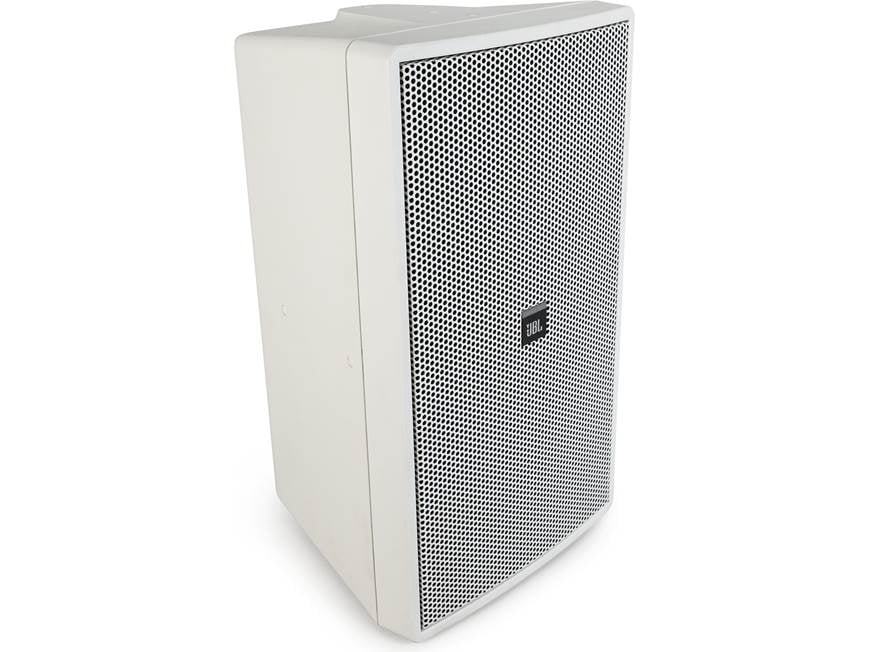

JBL Control 29AV-1 8" 2-Way 300W Loudspeaker - Pair
Premium Indoor / Outdoor Monitor Speaker
Features
- Extended bandwidth, extremely smooth frequency response.
- 110° x 85° HF coverage, rotatable horn.
- 110 W transformer for 70 V or 100 V lines, with 8 ohm thru.
- SonicGuard™ overload protection.
- 200 mm (8 in) Kevlar cone woofer,
- 25 mm (1 in) titanium diaphragm compression driver.
- Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and
- optional U-bracket.
- Sealed input panel cover and screwdown input terminals.
Specifications:
|
Frequency Range |
37 Hz –18 kHz (-10 dB) |
|
|
Power Capacity |
300 W Continuous Program Power; 150 W Continuous Pink Noise |
|
|
Transformer Taps |
70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, |
|
|
Frequency Response |
45 Hz – 18 kHz ( ± 3 dB) |
|
|
Maximum SPL @ 1m |
Short-Term: 120 dB; Long-Term: 114 dB |
|
|
Nominal Sensitivity |
90 dB (2.83V / 1m) |
|
|
Nominal Coverage Angle |
110° H x 85° V, rotatable |
|
|
Directivity Factor (Q) |
7.2 dB, averaged 500 Hz to 16 kHz |
|
|
Directivity Index (DI) |
8.6 dB, averaged 500 Hz to 16 kHz |
|
|
Nominal Impedance |
8 ohms |
|
|
Minimum Impedance |
6.3 ohms @ 230 Hz |
|
|
Crossover Network |
3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency |
|
|
Low Frequency |
200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former |
|
|
High Frequency |
25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround |
|
|
Enclosure Material |
High impact polystyrene |
|
|
Grille |
Thermoset composite coated steel, WeatherMax multi-layer foam |
|
|
Overload Protection |
Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions. |
|
|
Environmental |
IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. |
|
|
Terminations |
Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2). |
|
|
Safety Agency Rating |
Transformer is listed per UL1876 |
|
|
Colors |
Black or white (-WH) |
|
|
Dimensions (H x W x D) |
520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.) |
|
|
Net Weight (ea) |
12.2 kg (26.8 lb.) |
|
|
Shipping Weight (ea) |
14.0 kg (30.8 lb.) |
|
|
Included Accessories |
1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench. |
|
|
Optional Accessories |
MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket |
