Elac Debut 2.0 F6.2 Tower Speaker - Pair
About the Elac Debut 2.0 F6.2
ELAC's Debut 2.0 Series Flagship
Custom-Built For Excellent Sound
A High-quality Crossover Directs Traffic
Warranty: 1 year
- 3-way design
- 1" silk dome tweeter with wide-dispersion waveguide for smooth, accurate Highs and extended high-frequency response
- 6-1/2" aramid-fiber dedicated midrange driver with oversized magnet and vented pole piece
- Dual 6-1/2" aramid-fiber woofers for punchy bass
- Frequency response: 39-35,000 Hz
- Sensitivity: 87 dB
- Impedance: 6 ohms
- Recommended amplifier power: up to 140 watts
- Bass-reflex (ported) cabinet with rear-firing ports
- Custom multi-element crossovers with high-grade components to ensure a smooth transition between drivers
- 5-way binding post speaker terminals
- Thick MDF cabinet walls with black ash vinyl finish
- Cabinet walls are internally braced for reduced resonance and improved stability
- 8-1/8"W x 44-5/16"H x 11-5/8"D
- Weight: 44 lbs.
- Warranty: 1 year
What's in the Box:
- Floorstanding loudspeaker
- 4 Spikes (hex-nuts attached)
- Operating Instructions
Cloth Dome Tweeter w/ Wave Guide: The 1" silk soft-dome tweeter features a wide-roll surround that improves power handling and a waveguide that improves directivity control by eliminating cabinet diffraction inherent in traditional box enclosures. The 1" silk soft-dome tweeter candle handle high frequencies up to 35,000 Hz.
Woven-Aramid Fiber Woofers: The floor-standing speaker features three 6.5" woven aramid-fiber cone woofers (1 midrange driver/2 bass woofers) with rubber surround, oversized magnet, and vented pole piece. The revised shape of the aramid cone offers even greater stiffness and damping; far superior to polypropylene or paper. The added strength allows more flexibility in design to achieve a smoother, extended low-frequency response.
Custom Crossover: A custom nine-element crossover (90Hz/2200Hz) with audio-grade components is implemented to ensure a smooth transition between the tweeter, midrange driver, and bass woofers.

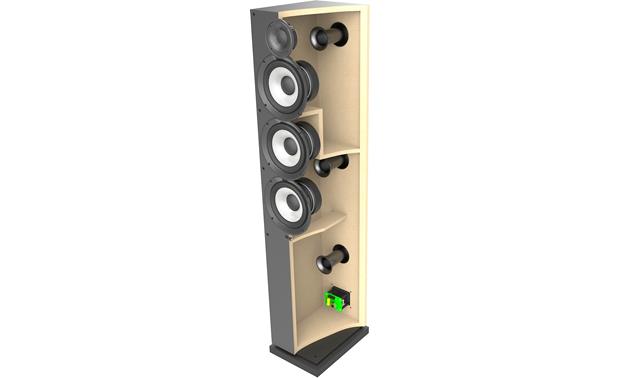

Bass Reflex MDF Cabinet: The Elac Debut 2.0 series DF62 floor-standing loudspeaker uses a bass reflex cabinet with three rear-firing flared ports for greater efficiency and bigger bass response. The cabinet is made of MDF (Medium Density Fiberboard) to strengthen and stiffen the cabinet, helping minimize unwanted vibrations that can discolor music or movie content. The MDF outer walls of the cabinet are covered with a black ash wood-grain vinyl finish. A detachable cloth grille is included.
5-Way Binding Posts: The Elac Debut 2.0 series DF62 floor-standing loudspeaker is fitted with a set of 5-way binding-post terminals that will accept bare-wire (up to 10AWG), pin connectors, spade lugs, and banana plugs (single or dual).
Spike Feet: The Elac Debut 2.0 series DF62 floor-standing loudspeaker features an integrated plinth (base) and comes with 4 spike feet. The spikes screw into the speaker cabinet's integrated plinth (base). The spike feet work great on carpeted flooring. You should place protective discs (not included) under the spikes if you are placing the speaker on hardwood or tile flooring (no rubber feet are included).
Dimensions with Spike Feet: 8.125" (w) x 44.3125" (h) x 11.625" (d)
Dimensions without Spike Feet: 8.125" (w) x 43.4375" (h) x 11.625" (d)
Note: There is a pre-installed safety clip on the back of the speaker cabinet for securing the floor-standing speaker to a wall to prevent tip-over. Wall-mount hook, screws, and cord are all sold separately and can be found at your local hardware store.
Applications: The Elac Debut 2.0 series DF62 floor-standing loudspeaker can be used in a 2ch stereo application, or used as your front speakers and/or rear surround speakers in a multichannel home theater application.
2Ch Stereo or Front Speaker Placement: For optimum stereo imaging, place the speakers so that an equilateral triangle is created between the speakers your main listening position. You can also angle ("toe-in") the speakers towards the listening position to gain a more focused central image.
Rear Surround Placement: In a 5.1channel surround setup, avoid placing the speakers forward of your listening position. The speakers should be spread apart wider than the front speakers.
Note: In either application, the speaker should be placed 1' to 2' away from boundaries such as walls and corners. Close proximity to a side or rear wall will enhance bass performance, but being too close may result in the bass that is unnatural.
Elac Debut 2.0 Series: The Elac Debut 2.0 series family of loudspeakers consists of two floor-standing loudspeakers (DF52/DF62), two bookshelf loudspeakers (DB52/DB62), two center-channel loudspeakers (DC52/DC62), a Dolby Atmos-enabled loudspeaker (DA42), and two powered subs (S10EQ/S12EQ).
