Ecler TUBE3 3" 1-way 18 WRMS Wireless WiSpeak Powered Lamp Style Design Rail Mount Speaker - Each

Rs. 83,900.00

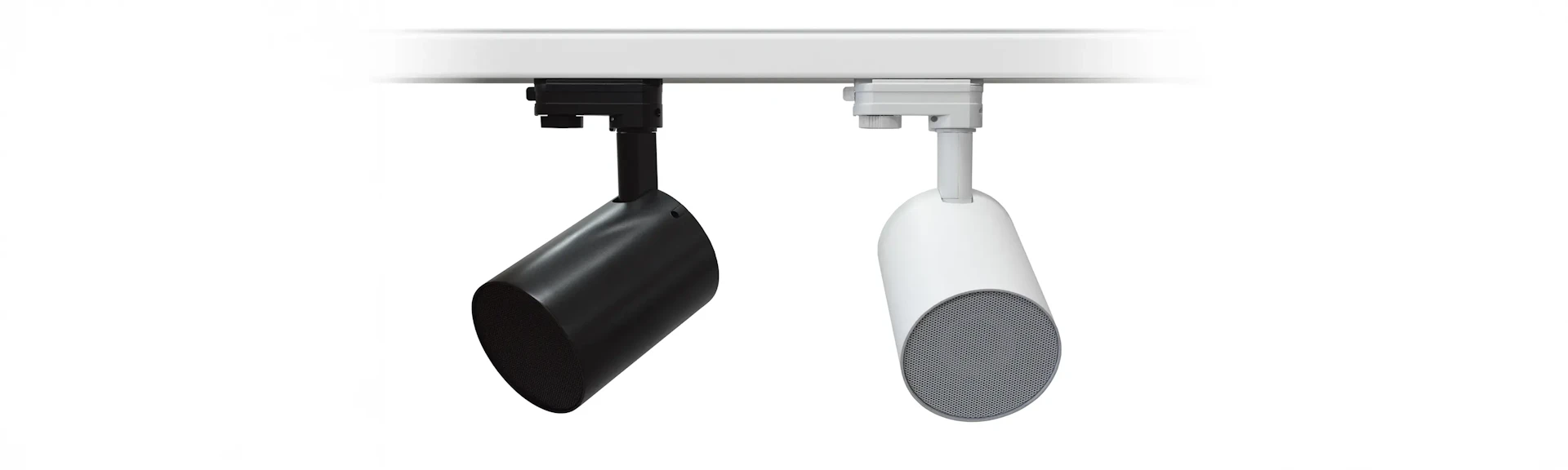

  • WiSpeak TUBE is a self-powered 3" lamp style loudspeaker with wireless audio reception and control capabilities under the control of the Master unit, featuring an installation system which is compatible with ceiling light rails.
  • Lamp style self-powered WiSpeak receiver, including 3” driver
  • Lighting rail mount included
  • Surface mount accessory available, optional (ref. TUBE SMA)
  • Universal, internal power supply, taking mains AC from the lighting rail bracket (100-240VAC 50-60Hz)
  • 1 x WiSpeak wireless audio signal received, from the transmitter it is paired to
  • 1 x AUX OUT analogue signal available (a copy of the received WiSpeak signal). It can be used for linking the unit to another WiSpeak transmitter, to extend the network, or to external audio devices, such as amplifiers, mixers or subwoofer units
  • Back panel UNPAIR control and LED indicators
  • Frequency band  U-NII 5.1 – 5.8GHz (supported worldwide) Up to 24 non-overlapping RF channels DFS support
  • Coverage range Up to 12m from a TX to any paired RX, direct line of sight
  • Audio channels  WiSpeak CH1 / CH2
  • Audio transmission  24bit uncompressed, 48kHz SR
  • Digital Audio Sample size 24 bits
  • Digital Audio Sampling rate  48kHz
  • Digital Audio Frequency Response  20Hz – 20kHz (-0.1dB)
  • Digital Audio converters DAC Resolution: 24 bit DAC Dynaimic range: 100dB
  • Latency  From TX IN to RX AUX OUT <6ms From TX IN to RX Speaker <6ms Jitter among receivers ±1us
  • Pairing time Up to 120s
  • Reconnection time  Up to 120s
  • Effective Freq. Range  105 - 20kHz (-10dB)
  • Coverage angle  180x180 (HxV)
  • Sensitivity   83 dB (1W/1m)
  • Maximum SPL  96 dB continuous / 102 dB peak
  • Ways  1-way
  • Driver  3” driver
  • Nominal impedance  4Ω
  • Power   18 W RMS / 72 W Peak
  • Audio inputs  CH1 / CH2: Digital, Mono, RF Wireless Audio
  • Audio outputs  Internal Loudspeaker: Analog, Mono, Self powered AUX OUT: Analog,Mono, Balanced, Euroblock
  • THD + Noise  <0.15% @1kHz Full power
  • Signal Noise Ratio >95dB at RX AUX OUT
  • Input sensitivity  0dBV / 10kΩ
  • Power supply   Universal, internal power supply
  • AC mains requirement  100-240VAC @ 50-60Hz
  • AC mains connector  From lighting rail bracket
  • Power consumption  15W (rated)
  • Volume control  via WiSpeak grip app.
  • Other controls   SOLO: via WiSpeak grip app ID TEST SIGNAL: via WiSpeak grip app PAIR / UNPAIR: via WiSpeak grip app and Panel button
  • LED Indicators  WiS and STR LEDs
  • Programing and control  WiSpeak grip app
  • Connection type   Ceiling rail AC connection
  • Installation options   Ceiling light rails, or suface using TUBE SMA
  • Environmental
  • Certifications  FCC, EMC
  • Enclosure material
  • Grille material
  • Grille fixing system
  • Mounting system  Lighting rail mount compatible
  • Pan and tilt wall-mount Swivel (pan and tilt)
  • Rail fixing system  4 wire 3 circuit track system compatible
  • Compatible rail systems  Global Track Pro or compatibles
  • Operating temperature  Min: -10°C ; 14°F Max: 40°C ; 104°F
  • Operating humidity  <85% HR
  • Storage temperature   Min: -10°C ; 14°F  Max: 40°C ; 104°F
  • Storage humidity  <90% HR
  • Included accessories  Lighting rail mount
  • Optional accessories  Surface mount accessory (TUBE SMA)
  • Finished colour  White (RAL 9003) or black (RAL 9005)
  • Dimensions  96 x 130 mm / 3.8 x 5.1 in. (∅xD)
  • Weight  0.8 kg / 1.76 lb
  • Pieces per box   1 unit
  • Shipping dimensions  195 x 185 x 245 mm / 7.68 x 7.28 x 9.65 in. (WxHxD)
  • Shipping weight  1.12 kg / 2.47 lb
Country of Origin: SPAIN
