Description

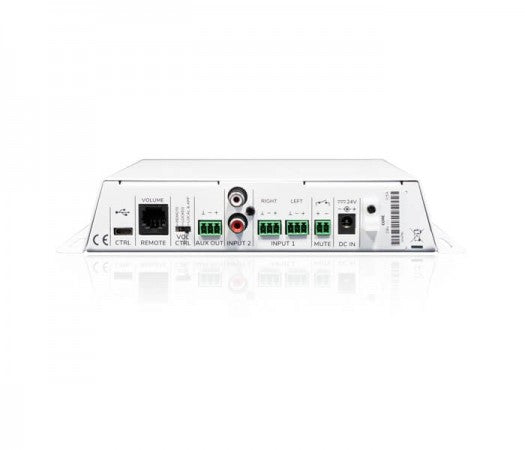

- WiSpeak CORE is the transmitter device that communicates with all the receiver devices to create a WiSpeak wireless network, and takes the role of the Master Unit. Its main functions are to pair and send audio contents to all the receivers (TUBE, CUBE), keeping a stable communication with them, and send also individual configuration commands to each receiver if desired. It also takes care of the global configuration of the system: audio inputs in use, equalization, output levels, etc. CORE is the Master Unit of the Ecler WiSpeak system. Together with TUBE, CUBE and GLOBE, provides a simple and fast wireless installation with up to 500m2 coverage. It includes a WiSpeak grip app available for Android and iOS, which can be used for an advanced set up and fine tuning of the Wireless Pro Audio system.
- External, universal Power Supply (100-240VAC 50-60Hz)
- Compatible with WiSpeak grip app for set up and control functions (available for Android and iOS), using Bluetooth® connection
- 3 audio inputs available:
- o Analogue stereo, unbalanced. 2 x RCA connectors
- o Analogue stereo, balanced. 2 x Euroblock 3p connectors
- o Bluetooth®, class 1 (up to 25 meters range, maximum)
- 1 x WiSpeak wireless audio signal transmitted (a mono conversion of the selected input)
- 1 x AUX OUT analogue signal available (a copy of the transmitted WiSpeak signal). It can be used for linking the unit to external audio devices, like amplifiers, mixers or subwoofer units
- MUTE port, to allow the system’s audio silencing when an external dry contact is closed
- REMOTE port, to allow a simple general volume control for the end user -within a programmable range- using a WPaVOL or compatible wall panel
- Maximum number of receivers under control per transmitter device = 24 units. The system can be extended by linking a new transmitter to an existing receiver, creating a second WiSpeak network that shares the audio contents and Master volume with the first (main) one
- Front panel controls for source (input) selection and general (Master) volume control
- Recommended maximum range from a CORE transmitter to any WiSpeak paired receiver (TUBE CUBE or GLOBE): 12 meters, with direct line of sight
- Front panel PAIR key: it allows pairing the receivers to the transmitter quickly and easily, for a basic set up of the WiSpeak system
- Front panel LED indicators
- Service USB-C port (not for external power supply, only for service updates & firmware)
WiS (RF WIRELESS DIGITAL AUDIO)
- Frequency band U-NII 5.1 – 5.8GHz (supported worldwide) Up to 24 non-overlapping RF channels4 DFS support
- Coverage range Up to 12m from a TX to any paired RX, direct line of sight
- Audio channels WiSpeak CH 1&2
- Audio transmission 24bit uncompressed, 48kHz SR
- Digital Audio Sample size TBC
- Digital Audio Sampling rate 48kHz
- Digital Audio Frequency Response 10Hz – 20kHz (-1dB)
- Digital Audio converters ADC/DAC Resolution: 24 bits Dynamic range ADC: 96 dB DAC: 98 dB
- Latency From TX Analog Audio IN to TX AUX OUT <700usec From TX Analog Audio IN to RX AUX OUT <6ms From TX Analog Audio IN to RX Speaker <6ms
- Pairing time Up to 120s
- Reconnection time Up to 120s
- Number of inputs 2
- Connection type IN1: 2 x RCA, unbalanced IN2: 2 x Euroblock 2-pin, balanced
- Input sensitivity -10dBV to 0dBV
- Input impedance >20kΩ
- THD + Noise IN 1&2: <0.015%
- CMRR IN2: >60dB @ 1kHz
- Class Compliant 5.0, Class 1
- Range 25m (ideal conditions)
- Profiles A2DP1.3/AVRCP1.6/HFP1.6/HSP1.2
- Supported codecs SBC, AAC
- Number of output ports 1 x AUX OUT: Analog, Mono
- Connection type 3-pin Euroblock, balanced
- Output impedance 10kΩ
- USB USB-C: Service & firmware updates
- Analogue remote control RJ-45: Compatible with WPa series analogue volume control panels
- External MUTE Euroblock, 2-pin, Normally Open
- Power supply External, universal Power Supply
- AC mains requirement 100-240 VAC @ 50-60Hz, using supplied DC adapter
- AC mains connector 24VDC IN mains inlet
- Power consumption 0.5A at 24V
- Paring control via WiSpeak grip app./front panel button
- Source selection via WiSpeak grip app./front panel button
- Volume control via WiSpeak grip app./front panel button / remote volume control
- Tone control via WiSpeak grip app.
- MUTE control via WiSpeak grip app./GPI (External MUTE port)
- LED Indicators WiS, RX , WiS PAIR, SOURCE SELECTLEDs
- Communication interfaces APP
- Processing TBC
- Programing and control WiSpeak grip app
- Installation options Wall or under a surface (table, shelf,cupboard, etc.)
- Environmental TBC
- Enclosure material TBC
- Mounting system TBC
- Operating temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
- Operating humidity <85% HR
- Storage temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
- Storage humidity <90% HR
- Optional accessories WPaVOL for volume control
- Finished colour White (RAL 9003) - TBC
- Dimensions 225 x 120 x 40 mm / 8.9 x 4.7 x 1.6 in. (WxHxD)
- Weight 0.8 kg / 1.76 lb
- Pieces per box1 unit
- Shipping dimensions 510 x 60 x 210 mm / 20.07 x 2.36 x 8.27 in. (WxHxD)
- Shipping weight 1.2 kg / 2.65 lb
