Denon S750H Audio-Video Receiver, SVS Prime Satellites, 10 Inch SVS SB1000 Subwoofer + BenQ W2700 Projector+Screen - Dolby Atmos 7.1 Home Theater Package # AM701005
Sold out
Rs. 0.00
This 7.1 Dolby Atmos Home Theater System Package Includes :
( Click on product links below for more info )
( Click on product links below for more info )

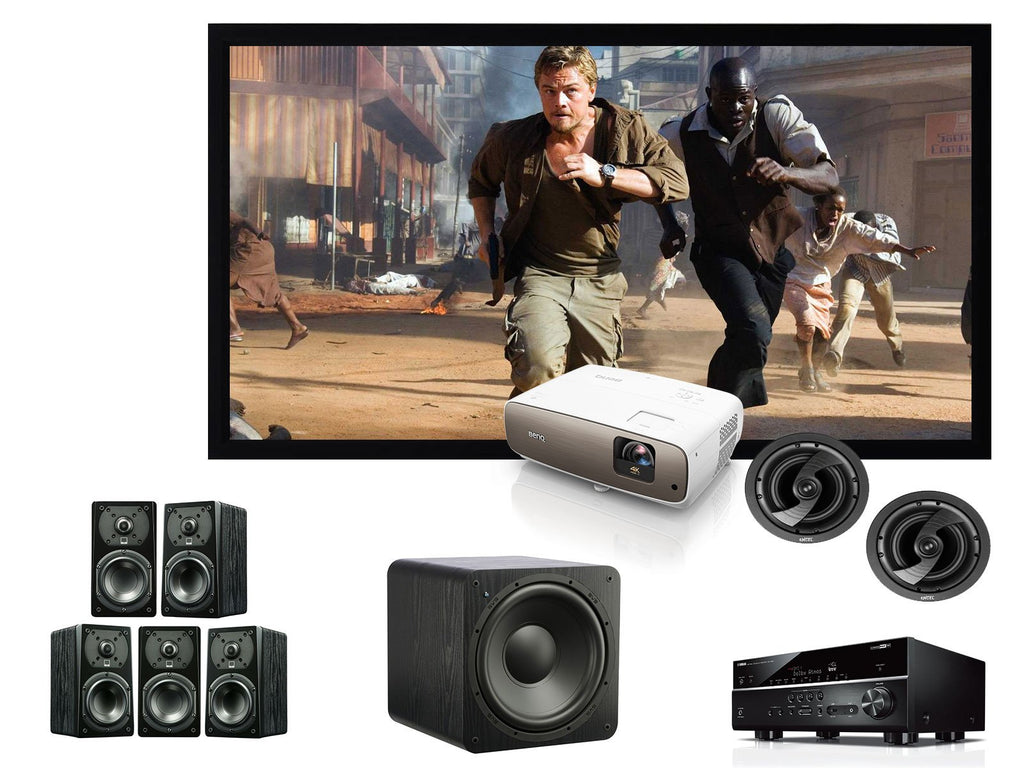

Package Contains
- 1 x Denon AVR s750H AV Receiver
- 1 x BenQ W2700 Projector + Projector Mount
- 1 x 100" /120"Imported Certified Motorized Projector Screen (Upgradable to larger sizes)
- 5 x SVS Prime Satellite Speakers
- 1 x SVS SB1000 Subwoofer
- 2 x JBL Arena 6ci InCeiling Speakers (For Atmos Effect)
- 1 x 10m Fibre Optic HDMI Cable

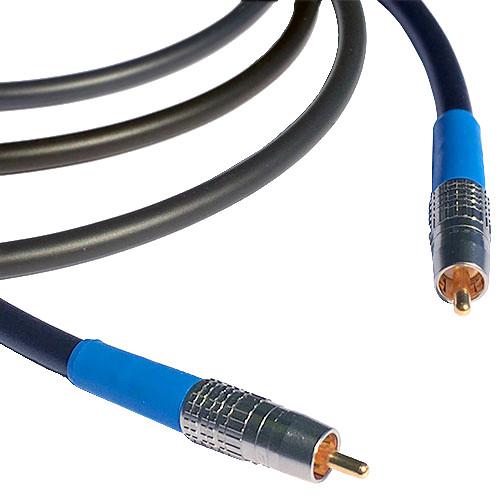

- 1 x 5m Performance Subwoofer Cable

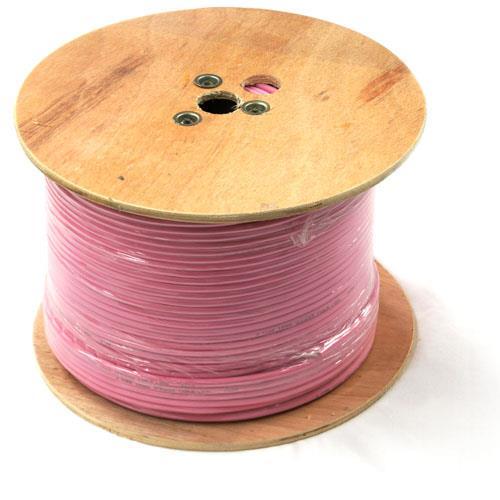

- 1 x 50m Bundle 16 AWG Speaker Wire
Warranty Info:
- 2 Year BenQ Projector
- 1 Year Denon AVR
- 5 Year SVS Speakers / Subwoofer
- 1 Year Projector Screen
- 1 Year JBL InCeiling Speakers
- 1 Year HDMi Cable
- 10 Year Speaker Wire

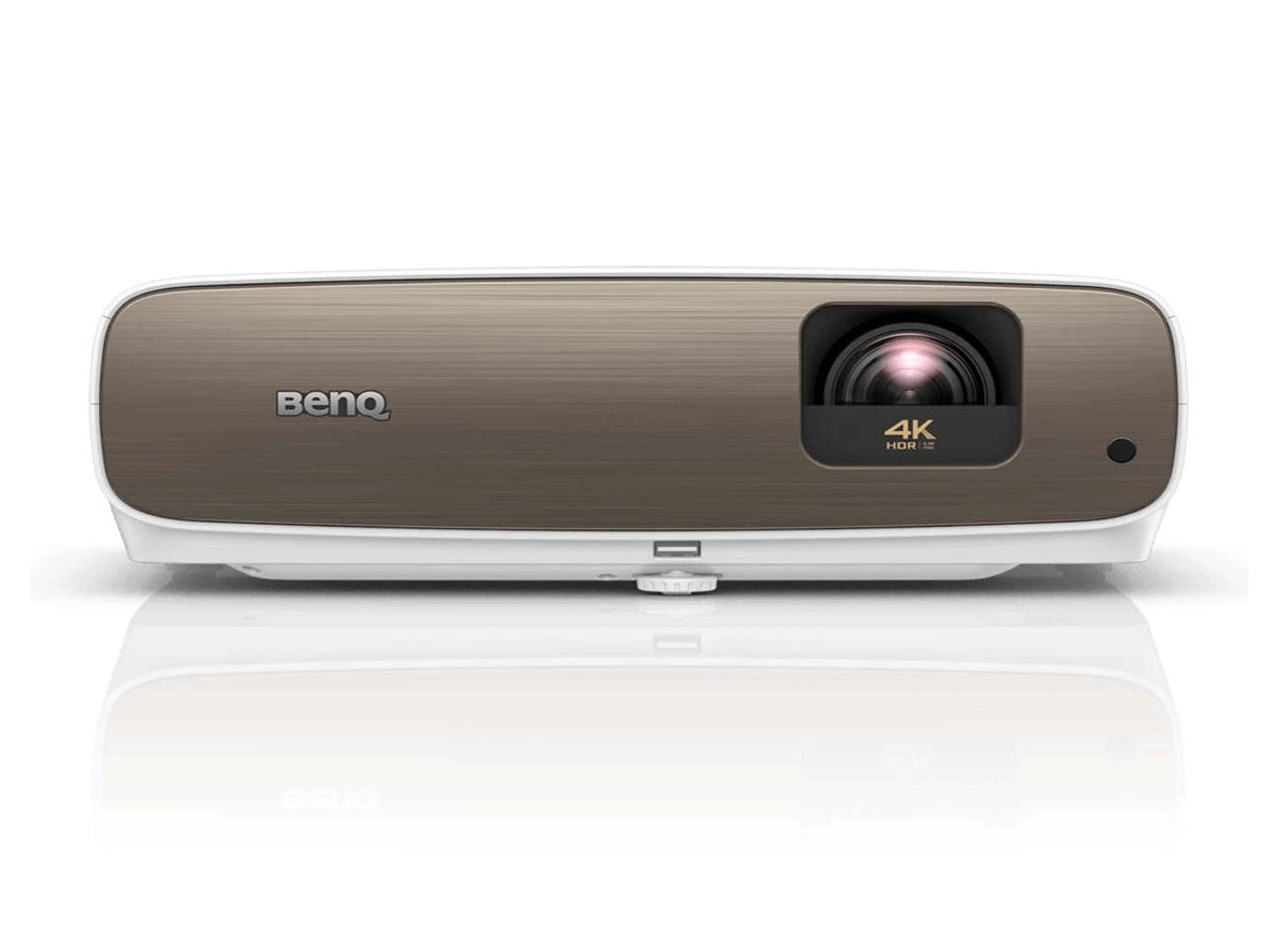

Specifications:
- Projection System: DLP
- Native Resolution: 4K UHD (3840 x 2160)
- Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
- Brightness (ANSI lumens): 2000 ANSI Lumens
- Contrast Ratio: 30,000:1
- Display Color: 30 Bits (1,07 billion colors)
- Lens: F/# = 1.9 - 2.47, f = 12 - 15.6 mm
- Native Aspect Ratio: Native 16:9 (6 aspect ratio selectable)
- Image Size (Diagonal): 30"~200"
- Zoom Ratio: 1.3X
- Throw Ratio: 1.13 - 1.47 (100" @ 2.5 m)
- Light Source Life
- Normal 4,000 hours
- Economic 10,000 hours
- SmartEco 15,000 hours
- Light Source Wattage: 245W
- Keystone Adjustment: 1D, (Auto) Vertical ± 30 degrees
- Projection Offset**: 105%
- Resolution support: VGA (640 x 480) to 4K UHD (3840 x 2160)
- Horizontal Frequency: 15K-135KHz
- Vertical Scan Rate:
- 2
- 3-120Hz
- Speaker: Chamber Speaker 5W x 2
- HDTV Compatibility: 720p 50/60Hz, 1080i 50/60Hz, 1080p 24/25/30/50/60Hz, 2160p 23/24/25/30/60Hz
- 3D Compatibility: Yes
- Power Consumption: typical 400W
- Dimensions (W x H x D): 380 x 127 x 263 mm
- Weight: 4.2 kg
- Accessories (Standard)
- Remote Control w/ battery RCS011 x 1 (5J.JKC06.001)
- Power Cord (by region) 3 M
- User Manual CD *1
- Quick Start Guide *1
- Warranty Card (by region) *1
- Lens Cover

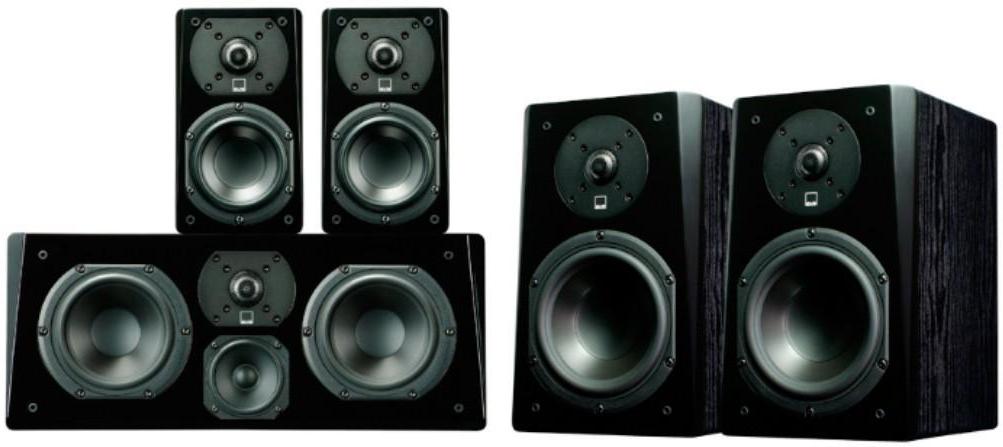

The Prime Satellite 4-1/2" woofer is mounted in its own dedicated compartment, sealed off from the tweeter. The polypropylene cone material is extremely lightweight and rigid, allowing the woofer to sound clear and natural through the midrange. Since a 4-1/2" woofer can only go so deep, we recommend pairing the Satellites with one of SVS's terrific subs for truly full-range sound with your movies and music.
The 1" aluminum dome tweeter is fitted with a special diffusor that keeps high frequencies sounding crystal clear, even when you crank up the volume.
The 1" aluminum dome tweeter is fitted with a special diffusor that keeps high frequencies sounding crystal clear, even when you crank up the volume.
Product Highlights (Each):
- 2-way design
- 1" aluminum dome tweeter
- 4-1/2" polypropylene mid/woofer
- Frequency response: 69-25,000 Hz (±3dB)
- Recommended amplifier power: 20-150 watts
- Sensitivity: 85 dB
- Nominal impedance: 8 ohms
- Bass-reflex design with rear-firing port
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve high frequency response
- Keyhole bracket for easy, convenient wall mounting (mounting screws not included)
- 1/4" threaded brass insert for use with other mounting brackets
- Elastomer stick-on bumper feet
- 5-way binding posts accept bare wire, pins, spade lugs, and banana connectors
- Removable cloth grille
- 4-15/16"W x 8-3/4"H x 6"D
- Weight: 2.94kg.

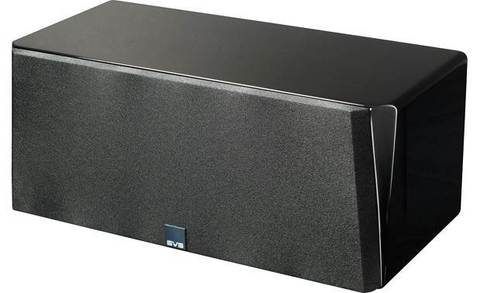

Product Highlights:
- 3-way design
- 1" aluminum dome tweeter
- 3-1/2" polypropylene midrange driver
- dual 5-1/4" polypropylene woofers
- frequency response: 48-25,000 Hz (±3dB)
- recommended amplifier power: 20-200 watts
- sensitivity: 86 dB
- nominal impedance: 8 ohms
- bass-reflex cabinet with dual rear-firing ports
- removable cloth grille
- 5-way binding posts accept bare wire, pins, spade lugs, and banana connectors
- 18-11/16"W x 7-11/16"H x 9-1/8"D

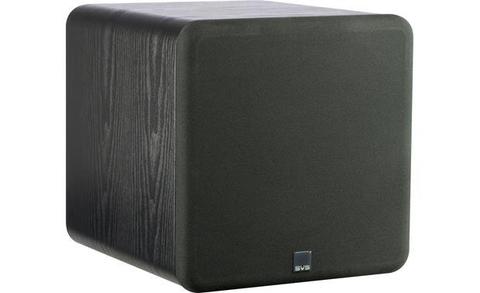

Easy System Integration
Line-level and LFE (Low-Frequency Effects) inputs let you easily connect the SB-1000 to almost any home theater or stereo receiver.
Its back-panel gain, crossover, and phase controls help you fine-tune the bass to your liking, and blend its sound into your system.
Product Highlights:
- Frequency response: 24-260 hz (±3 db)
- Built-in class d amplifier delivers 300 watts rms of continuous power (720 watts peak dynamic power)
- Advanced dsp processor maintains control over the subwoofer at all drive levels for refined, low-distortion sound
- Lightweight, long-throw 12" woofer for enhanced sensitivity and transient response
- Acoustic suspension (sealed) cabinet design
- Rear-mounted volume, crossover, phase, and power controls
- Digital actuator control knobs for precise and noise-free adjustment
- Continuously variable low-pass 50-160 hz crossover with a disable (lfe) setting for connecting an a/v receiver
- Continuously variable phase control (0-180°)
- Main power on/off switch plus auto standby/on mode
- Line-level/lfe rca inputs
- Speaker-level inputs
- Filtered rca line outputs (fixed 80 hz, 12db/octave high-pass)
- Remote trigger input
- Detachable power cord
- Black ash wood veneer finish
Features & Specs
- Enclosure: Acoustic Suspension
- Video Shielded: No
- Woofer Size (inches): 12
- Woofer Composition: Not given
- Firing Direction: Front
- Wireless: No
- Preamp-Level Inputs: Yes
- Speaker-Level Inputs: Yes
- Speaker-Level Outputs: No
- Low-Pass Crossover Freq: 50-160 Hz
- High-Pass Crossover Freq: 80 Hz
- Phase Switch: Yes
- Amplifier Output (watts) : 300
- Frequency Response: 24-260 Hz
- Height (inches) : 13-1/2
- Width (inches) : 13-1/16
- Depth (inches) : 15-5/8
- Weight: 12.24 KG

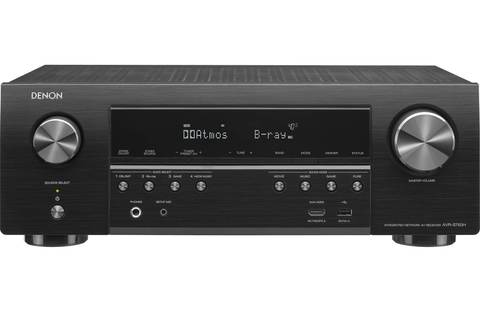

Denon AVR-S750H 7.2-channel Home Theater Receiver
Surround Sound at a Down-to-Earth Price
Every now and then I smile at just how far home theater receiver technology has come, especially in the features-for-the-dollar department. Take Denon's AVR-S750H for example. It combines high-quality surround sound with app control, wireless streaming, and multi-room music capability, all while retaining a modest price tag. It wasn't that long ago that a similar roster of features would have set you back considerably more.
Flexible Surround Sound Options
The 'S750H can power up to seven speakers at the same time. Use all seven channels in a 5.1.2 Dolby Atmos® or DTS:X™ system. Or go with a traditional 5.1-channel setup, and repurpose the extra two channels for music in another zone.
At 75 watts per channel, the 'S750H is a great choice for powering bookshelf, in-ceiling, and in-wall speakers.
At 75 watts per channel, the 'S750H is a great choice for powering bookshelf, in-ceiling, and in-wall speakers.
Product Highlights:
- HDMI 2.0b audio/video switching: 6 in (includes 1 front-panel input), 1 out
- HDCP 2.3 technology ensures compatibility with 4K Ultra HD sources and TVs
- HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
- Supports HDR 10, Dolby Vision™, and HLG
- eARC (Enhanced Audio Return Channel) supports the most advanced surround sound formats, including Dolby Atmos and DTS:X, via a single HDMI connection to your TV
- Passes full-resolution surround sound signals from over-the-air broadcasts and streaming media
- Composite video switching: 2 in, 1 out
- Digital audio inputs: 2 optical, 1 coaxial
- 2 analog stereo audio inputs
- Preamp outputs for two powered subwoofers
- MM (moving magnet) phono input for connecting a turntable
- Front-panel USB port for audio playback from USB flash drives
- Ethernet port for network connection
- Outputs for 7 speakers (Front L/R, Center, Surround L/R, Surround Back L/R)
- Full-sized headphone jack
- Warranty: 1 Year
- Weight: 10.5 Kg

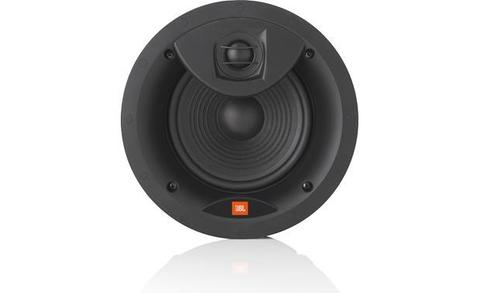

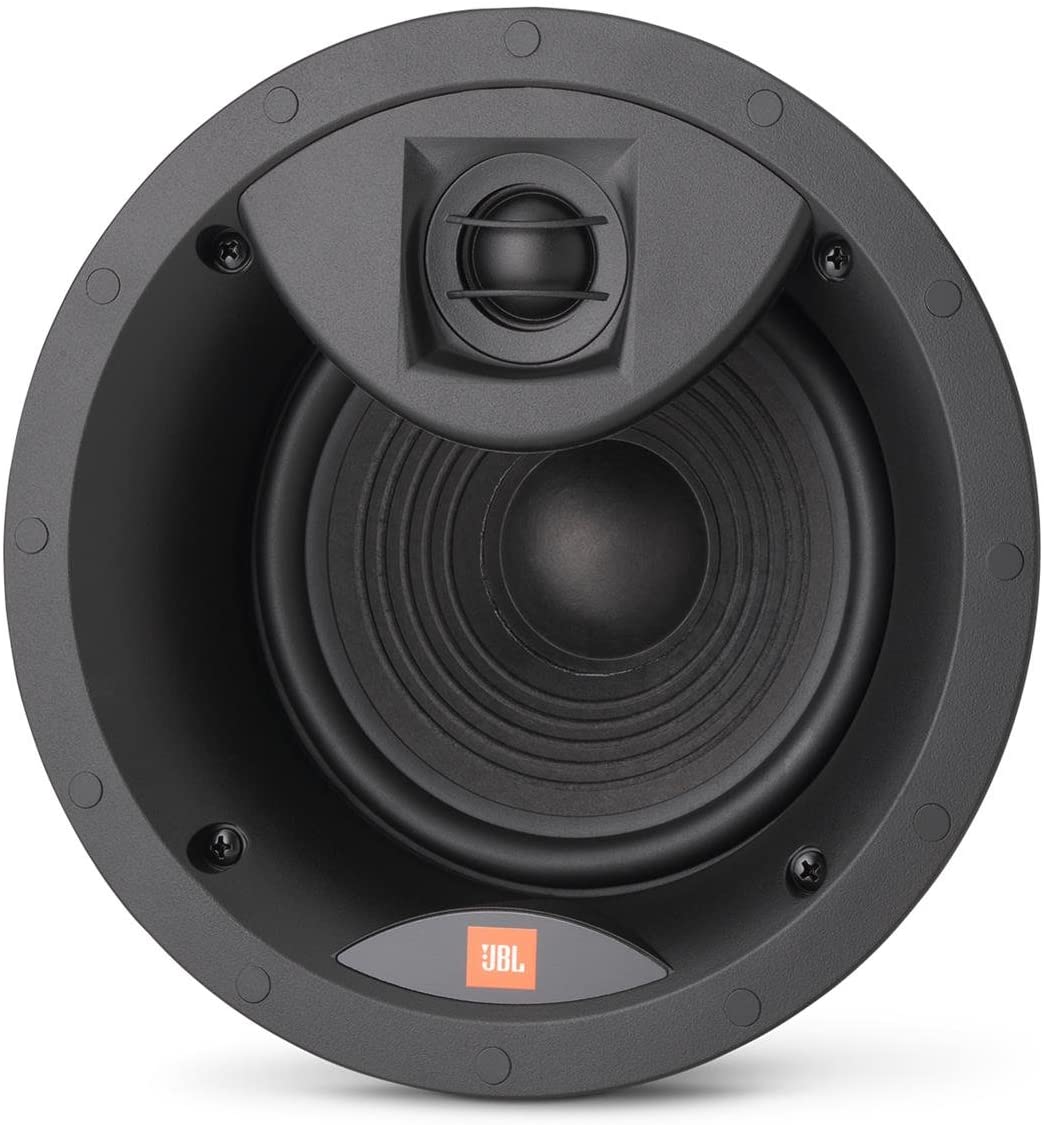

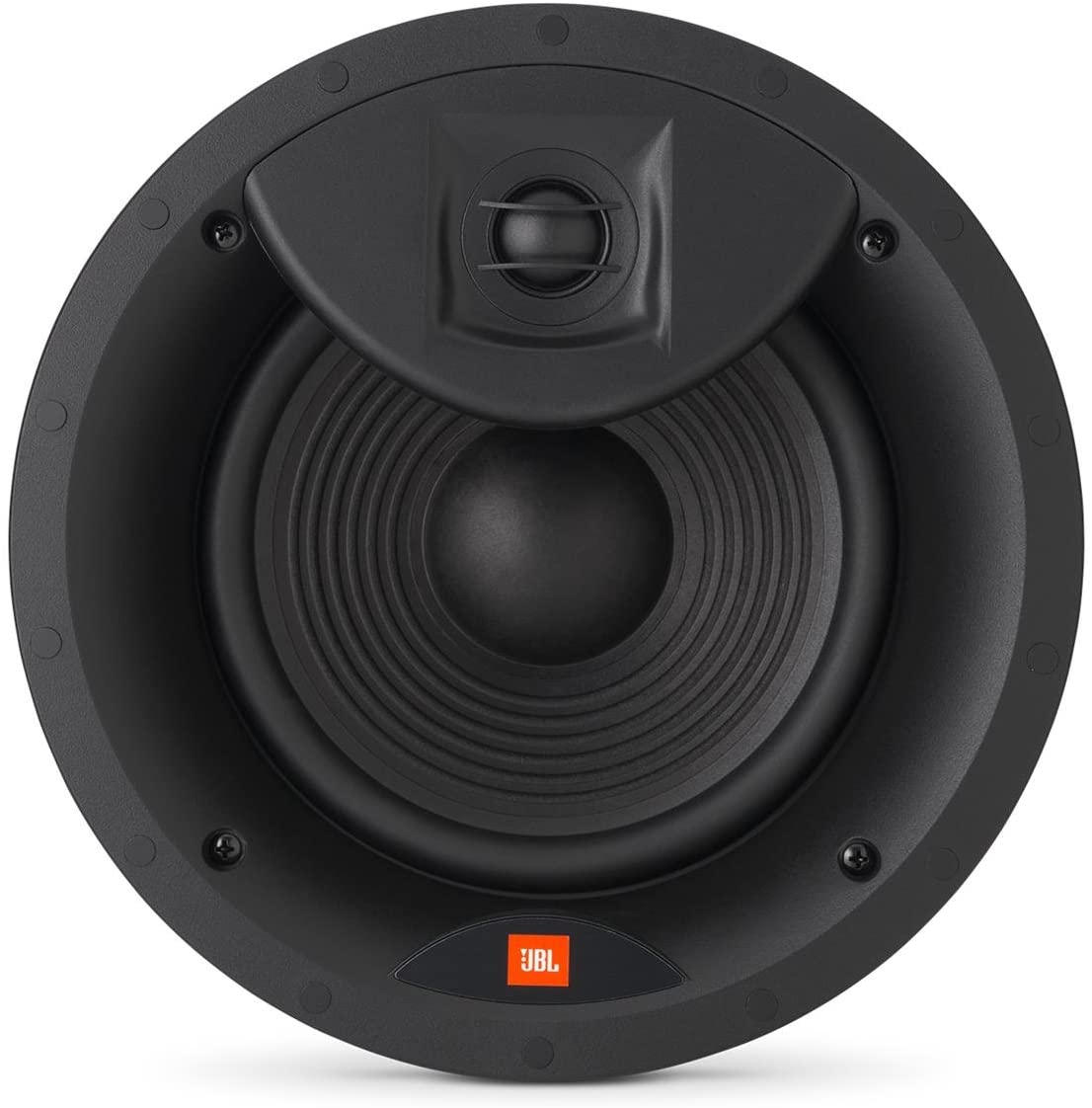

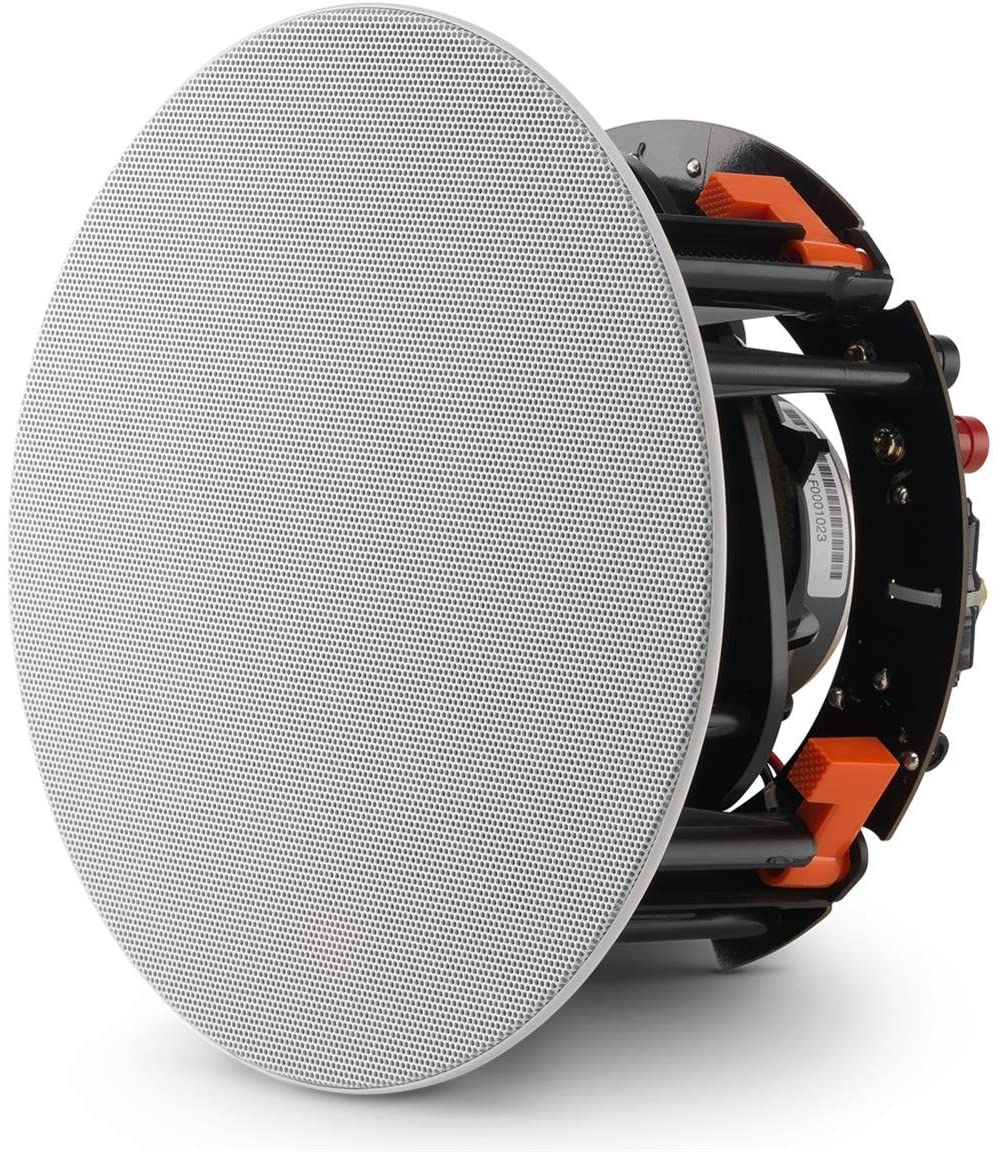

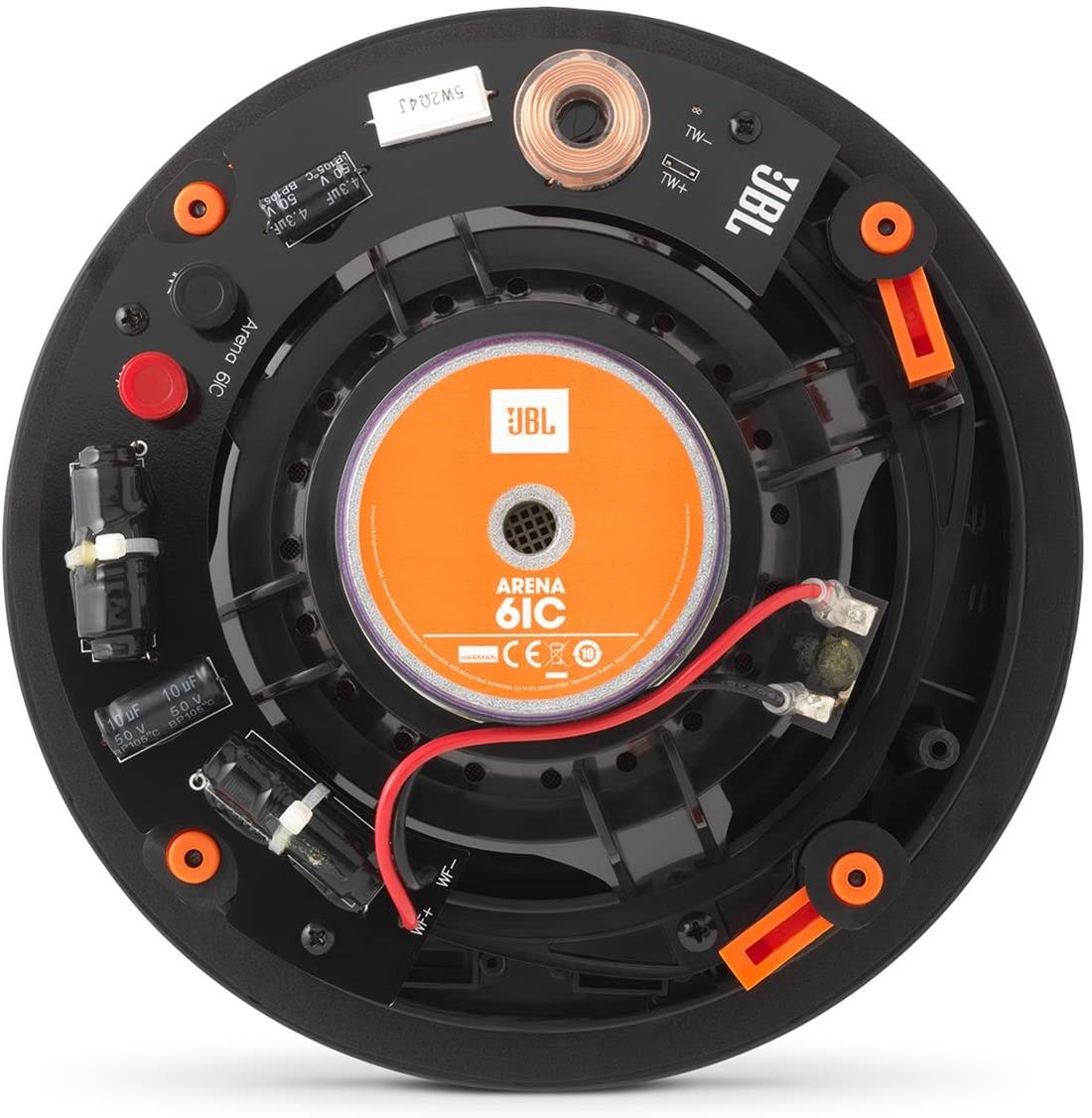

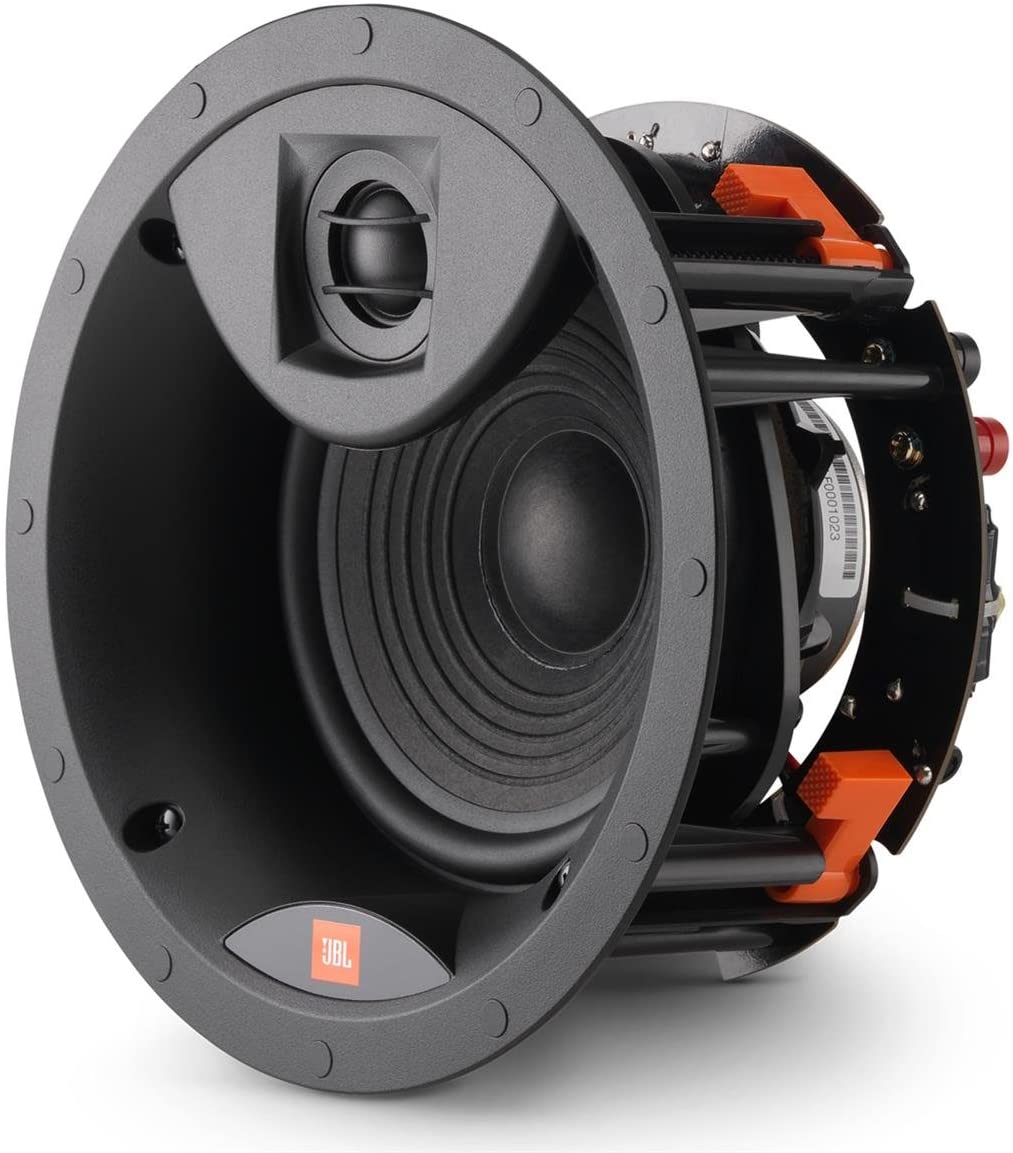

Installation
JBL's rotating-cam design makes your in-ceiling installation go smoother. Once you have the 6IC in place, simply use a screwdriver to tighten each cam for a secure grip against the back of the ceiling material. If this is a do-it-yourself installation, check out our guide to installing in-wall and in-ceiling speakers, along with our selection of in-wall speaker wire.
Product Highlights:
- 6-1/2" poly cellulose woofer
- 1" silk dome tweeter
- Frequency response 38-20,000 Hz
- Power handling: up to 80 watts RMS
- 8-ohm impedance
- Sensitivity 86 dB
- Includes paintable magnetic grille
- Cutout diameter: 8"
- Grille Diameter: 9-1/8"
- Mounting depth: 4-11/16"

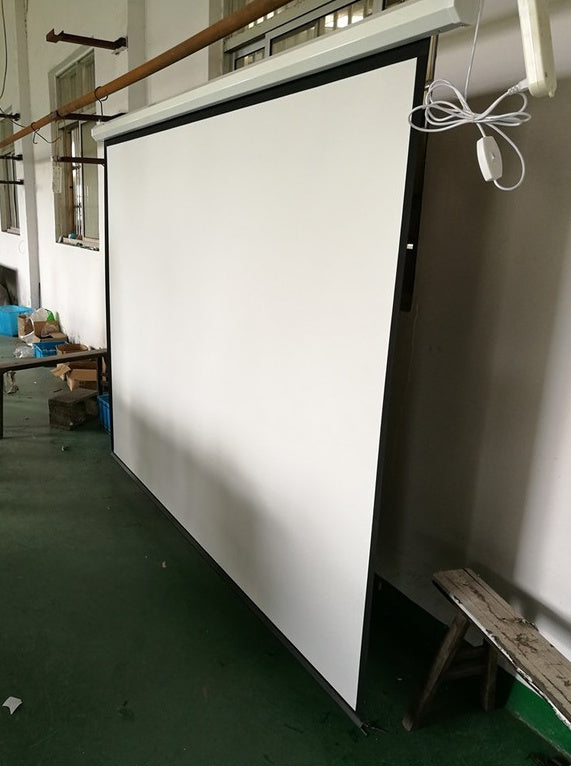

Motorised Projector Screen
- Gain : 1.1
- Screen Size” : (W x H) 109″x59
- Case Color : White
- Motor : Tubulor
- Barrel Size: (W x H x D) 117″x 3”x3.5” inch
- Blackdrop Size: 1.5 feet
- Screen material : Cinematte white

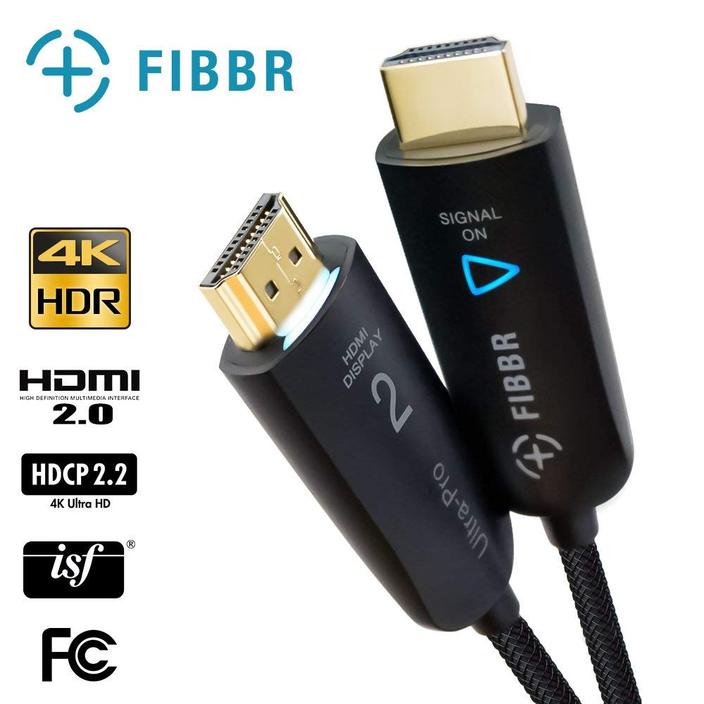

Optical Active 4k HDMI for long lengths
HDMI fiber optic cable perfectly supports 4K@60Hz sub-sampling 4:4:4/4:2:2/4:2:0, 8 bit for 4:4:4 / 12 bit for 4:2:2 / 16 bit for 4:2:0 color depth. With this optical cable for TV and other devices, you can be assured of faster signal and stable performance. Also, its setup is a simple plug & play, so there is no external power supply needed.
Enjoy high-quality sound and video transmission by installing HDMI over fibre optic cables that deliver excellence consistently is important.
Projector Ceiling Mounts
The projector ceiling mounts that we offer also come with tilt, swivel and rotation feature. They can easily handle up to 15 kgs of weight and the lock feature ensures that your projector is positioned well and secured at all times. The best part, all our ceiling mounts for projectors comes with a warranty of 5 years. Plus, they include all mounting hardware and instruction manual which ensures quick and stress-free installation in no time.
Most people buy a projector to enjoy the cinema-quality viewing experience. However, without proper equipment like; the best home theater projector screen and a sturdy wall mount for projector, the quality of the image displayed can diminish considerably. Thus, first, evaluate what your basic requirements are. This will help you choose the best ceiling mount for your projector that offers optimal value.
