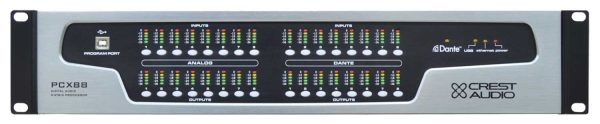

The Crest Audio PCX 88-230EB is the most advanced processor in the PCX Series, designed for large-scale, high-performance audio systems that require full matrix routing, advanced DSP processing, and network-ready flexibility. It combines loudspeaker management, matrix mixing, and system control into a single powerful unit—making it ideal for complex installations and professional live sound environments.
At its core, the PCX 88 features an 8-input / 8-output analog matrix architecture, with the ability to expand to 16×16 channels via optional Dante network audio. This allows seamless integration into modern digital audio networks while maintaining full flexibility in routing and system design.
Operating at a 96 kHz sample rate with 24-bit converters and 32-bit DSP processing, the unit delivers extremely accurate signal processing, low noise, and high dynamic range—ensuring pristine audio quality across complex systems.
Each input channel includes gain, mute, high/low-pass filters, 5-band parametric EQ, noise gate, feedback suppression, automixing, and +48V phantom power, making it suitable for both line-level and microphone-level signals.
On the output side, the processor offers 5-band PEQ, compressor/limiter, crossover filters, polarity control, and up to 680 ms delay, enabling full optimization and protection of loudspeaker systems.
With Ethernet, USB, and serial control, plus PCX Editor software support, the PCX 88 allows remote configuration and control of up to 255 devices, making it ideal for large distributed systems such as hotels, malls, and venues.
Performance Highlights
• 8-in / 8-out DSP matrix processor (expandable to 16×16 with Dante)
• 96 kHz / 24-bit audio processing with 32-bit DSP
• Advanced input processing (gate, automix, phantom power)
• Full speaker management: EQ, crossover, delay, limiter
• Network-ready system with Ethernet control and Dante option
Why You Should Buy This Product
• ⭐ Most powerful DSP in PCX lineup (beyond 260 / 480)
• ⭐ Ideal for large venues, multi-zone, and networked audio
• ⭐ Handles both mic + line inputs (very flexible)
• ⭐ Dante-ready for modern digital audio systems
• ⭐ Complete control + protection in one unit
Key Features
• 8 × XLR balanced inputs (mic/line with phantom power)
• 8 × XLR balanced outputs
• Optional Dante network expansion (8 in / 8 out digital)
• 96 kHz sample rate / 24-bit AD/DA
• 32-bit SHARC DSP processor
• Input processing: gate, feedback control, automix, 5-band PEQ
• Output processing: EQ, compressor/limiter, crossover, delay
• Delay up to 680 ms (input & output)
• Crossover filters: Butterworth, Bessel, Linkwitz-Riley (up to 48 dB/oct)
• Internal signal generator (sine / white / pink noise)
• Ethernet + USB + RS232/RS485 control
• PCX Editor software (control up to 255 units)
Technical Specifications
General
• Product Type: Digital Audio Matrix DSP Processor
• Brand: Crest Audio (Peavey)
• Model: PCX 88-230EB
• Power: 230V version
Audio & Processing
• Sample Rate: 96 kHz
• AD/DA Conversion: 24-bit Delta-Sigma
• DSP: 32-bit floating point
• Dynamic Range: >110 dB (A-weighted)
Inputs / Outputs
• Analog Inputs: 8 × XLR (mic/line)
• Analog Outputs: 8 × XLR
• Digital I/O: 8 × 8 via optional Dante
• Max Level: +20 dBu
DSP Functions
• Input: Gate, automix, feedback suppression, 5-band PEQ
• Output: EQ, limiter, crossover, delay
• Delay: Up to 680 ms
• Filters: HPF / LPF / Band-pass
• Signal Generator: Yes
Control & Connectivity
• Front panel: LCD + encoder
• Remote: Ethernet / USB / RS232 / RS485
• Software: PCX Editor
Configuration
• Device Type: DSP Matrix Processor
• Application: Large System Audio Control / Routing
• Built-in Amplifier: No
• Mode: Digital Processing
Included
• 1 × PCX 88 DSP Processor
• Power Cable
• Documentation
