Bose Panaray MA12EX Modular Line Array Loudspeaker - Each

OUR INNOVATIONS. YOUR EMOTIONS

Product Overview

Articulated Array® speaker configuration provides wider 160° horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

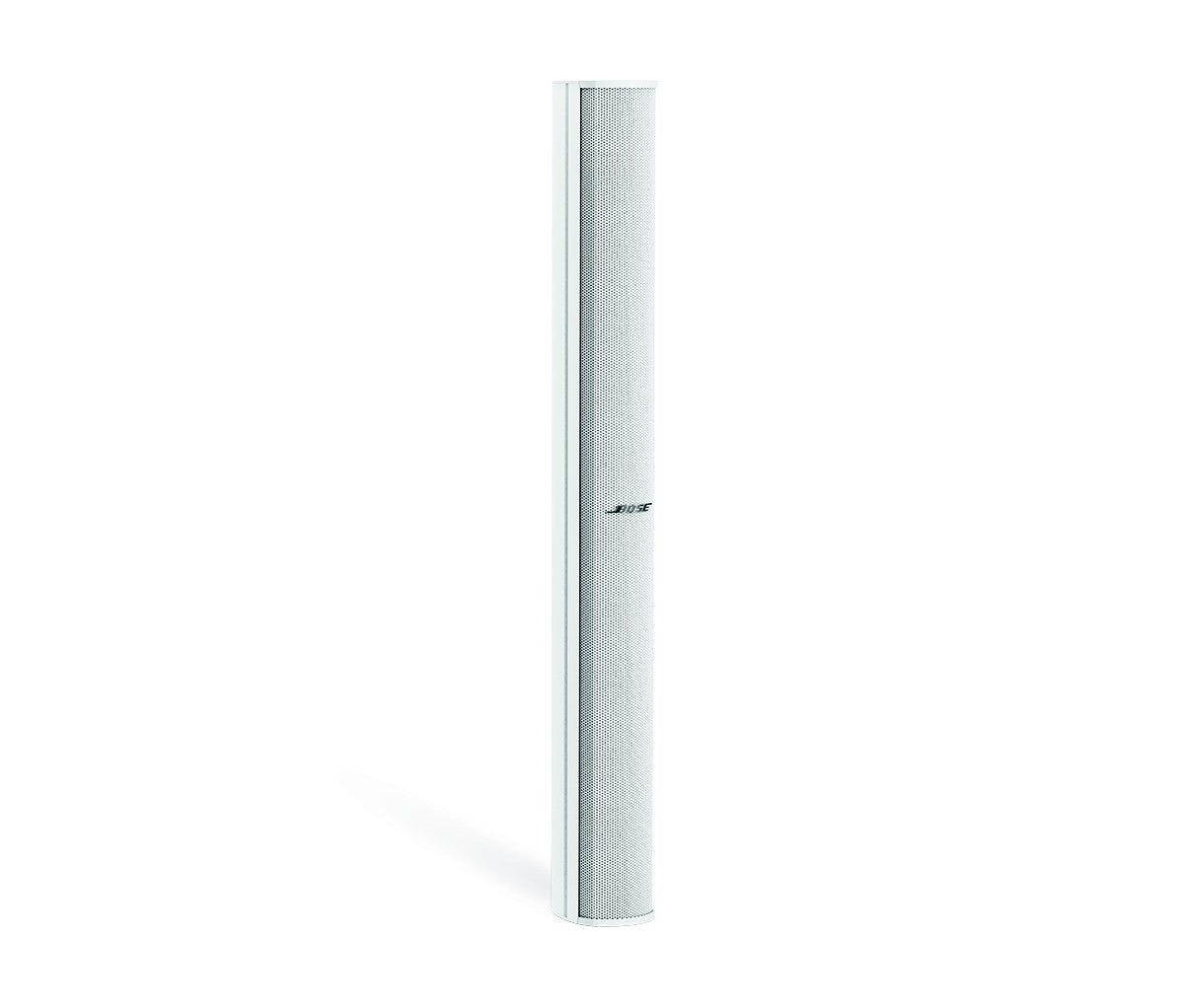

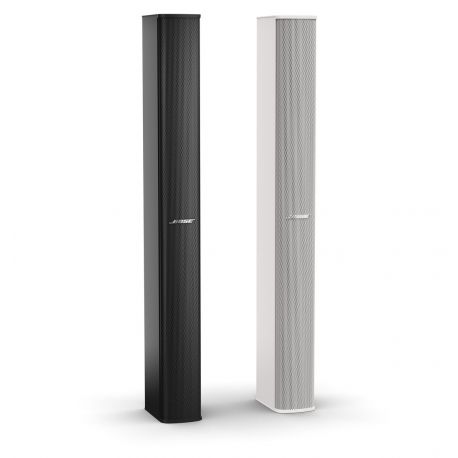

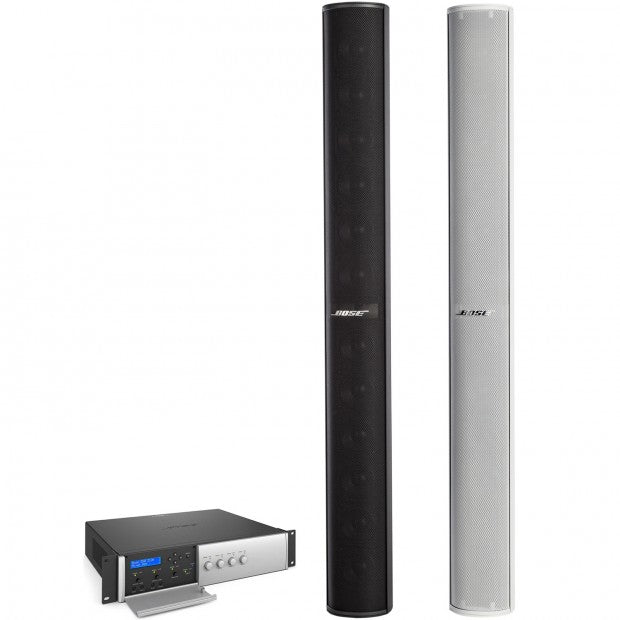

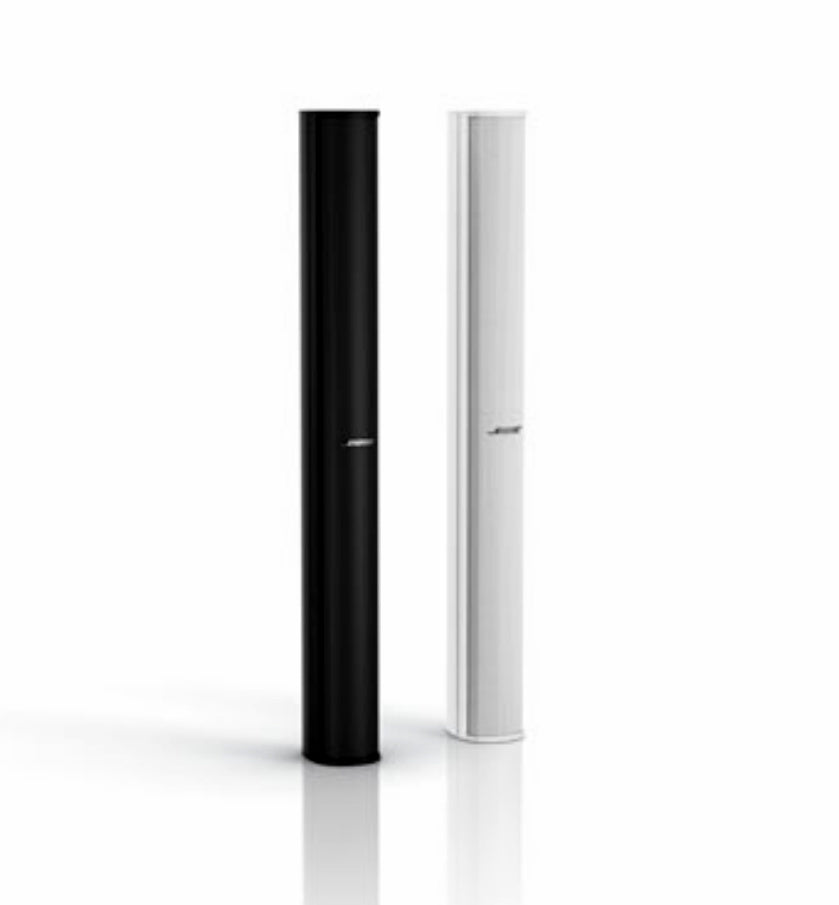

The Bose Panaray MA12EX is a full-range modular line array loudspeaker designed to provide outstanding vocal intelligibility in acoustically demanding spaces. The slim column enclosure blends with almost any décor. The "EX" version adds an Articulated Array® design to provide wider 160° horizontal coverage and weather-resistant components to allow outdoor applications.

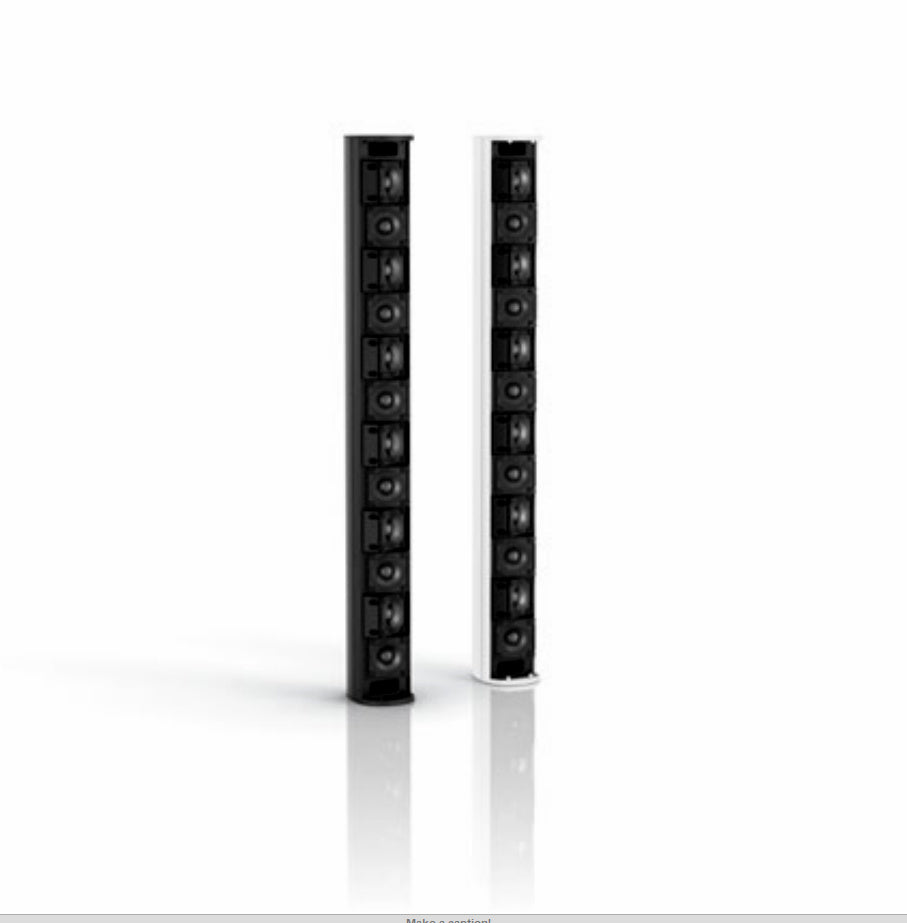

• Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
• Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
• Articulated Array® design provides a wide 160° horizontal coverage with 20° nominal vertical coverage for a single module
• Actual vertical coverage varies with a number of modules inline array configuration
• Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers
• For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
• Optional brackets allow easy installation of single-, double- or triple stack line array modules

Applications

• Houses of worship
• Multi-purpose spaces
• Recreation
• Restaurants and bars
• Auditoriums
• Transportation facilities
• Gymnasiums
• Atriums and malls

Warranty : 5 Years

• Depth: 5.47 in
• Height: 38.78 in
• Impedance: 8 ohm
• Sensitivity : 87 dB
• Width : 4.10 in
• Power Handling: 150 Watt
• Maximum SPL (Sound Pressure Level): 109 dB
• Product Weight: 20.80 lbs
• Coverage Horizontal: 160 degrees
• Coverage Vertical: 20 degrees
• Color: Black
• Minimum Frequency Response (Bandwidth) : 75 Hz
• Minimum Frequency Response (Bandwidth) : 0.08 kHz
• Maximum Frequency Response (Bandwidth) : 13000 Hz
• Maximum Frequency Response (Bandwidth) : 13 kHz
• Speaker Diameter (Driver): 2.52 in
• Transformer Option - Yes
• Loudspeaker Setup - Rigged
