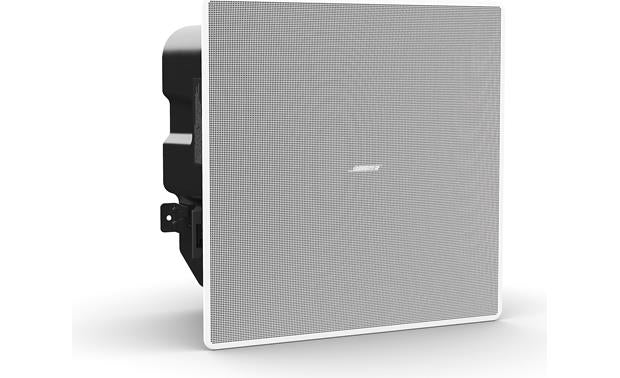

Bose EdgeMax EM90 - 8" Commercial In-Ceiling Speaker - Each

Rs. 110,771.00
OUR INNOVATIONS. YOUR EMOTIONS

About the Bose Edgemax EM90
Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

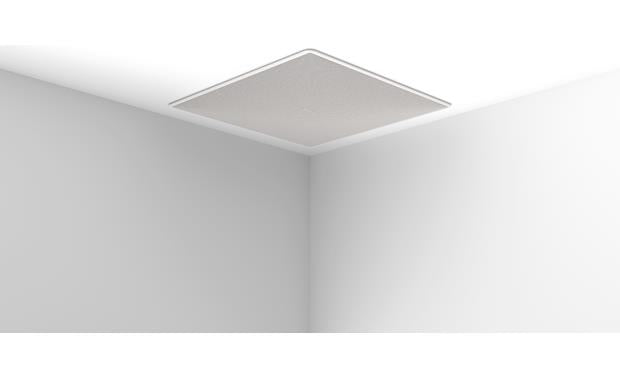

Specialized speaker for mounting in corners
Bose® EdgeMax™ speakers are specially designed to go in high corners. The EM90's proprietary PhaseGuide® technology creates an asymmetrical vertical pattern, along with a 90-degree horizontal dispersion that's ideal for tricky wall/ceiling boundary areas. The speaker features a robust 8" woofer with a high-frequency compression driver that work together to fill a room with clear sound.

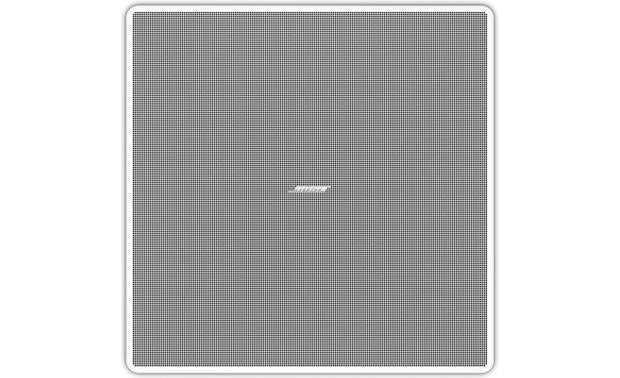

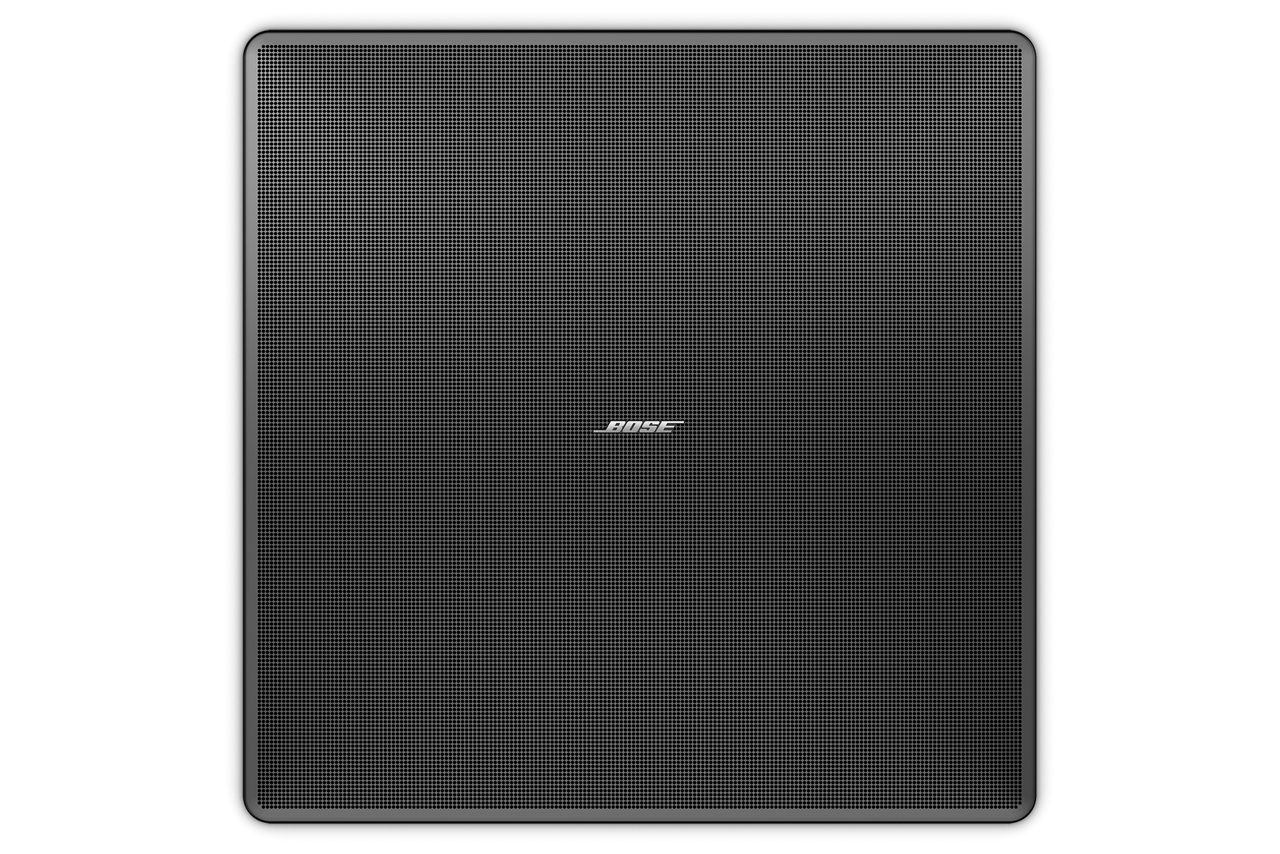

The speaker comes with a white grille, but Bose offers an optional black grille if that suits your decor better.

Illustration of Bose EdgeMax EM90 & EdgeMax EM180

Applications

  • Retail stores
  • Restaurants and bars
  • Concourse
  • Transportation facilities
  • Resorts and hospitality venues
  • Houses of worship
  • Conferencing
  • Home / Personal Cinema
Part of A Customizable Bose Sound Solution
The Bose Professional family of products offers speakers, amplifiers, processors, and accessories that are designed to work together.
The Lineup Includes:
  • A wide array of FreeSpace® speakers, subwoofers, and zone amplifiers
  • EdgeMax™ in-ceiling speakers for corners and close walls
  • rugged PowerShare amplifiers
  • clear, reliable Panaray® full-range driver arrays
  • versatile ControlSpace® signal processors
  • robust MB subwoofers
  • Warranty: 5 Year
Product Highlights:
  • In-ceiling speaker designed for mounting in a high corner

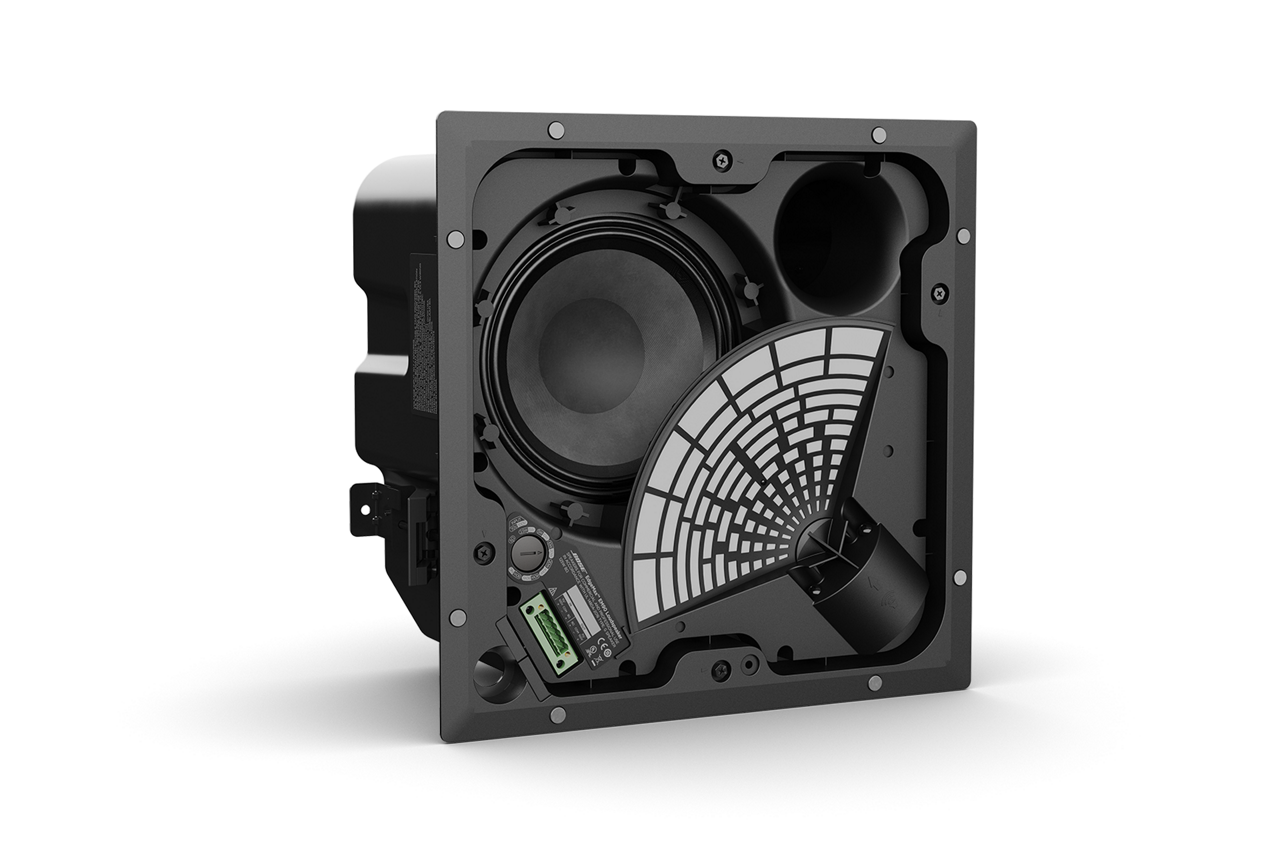

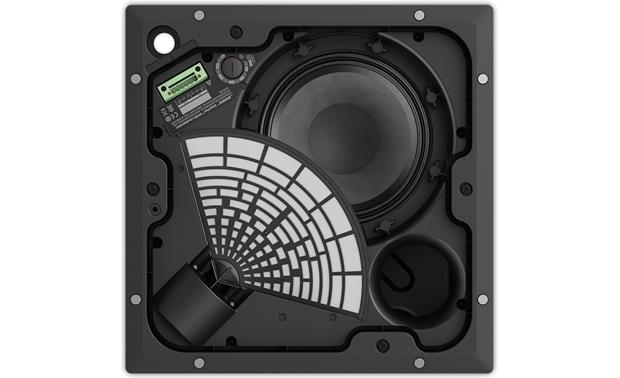

  • 8" woofer with high-frequency compression driver
  • Proprietary PhaseGuide® technology creates a diagonal 90° sound dispersal pattern
  • Transformer tap for use with distributed audio systems
    • 70-volt taps at 2.5, 5, 10, 20, 40 and 80 watts
    • 100-volt taps at 5, 10, 20, 40, and, 80 watts
  • 8-ohm bypass for use with standard home stereo equipment
  • Frequency response: 50-18,000 Hz (± 3dB)
  • Sensitivity: 96dB
  • Cutout: 13-5/8" square
  • 15-7/16"W x 15-7/16"H x 9-13/16"D

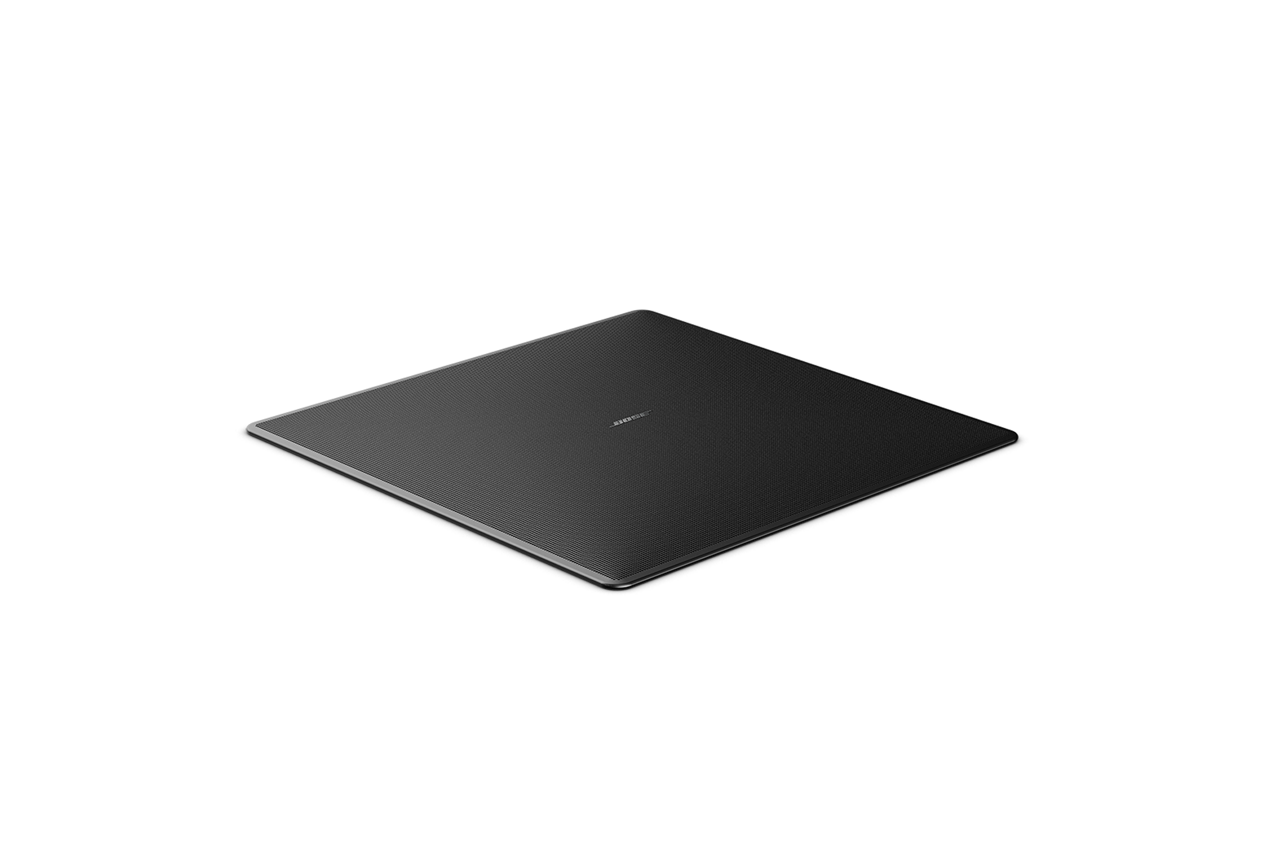

  • Grill Color Options : White / Black
  • Warranty: 5 years
What's in the Box:
  • Bose EdgeMax EM90 Owner's Manual

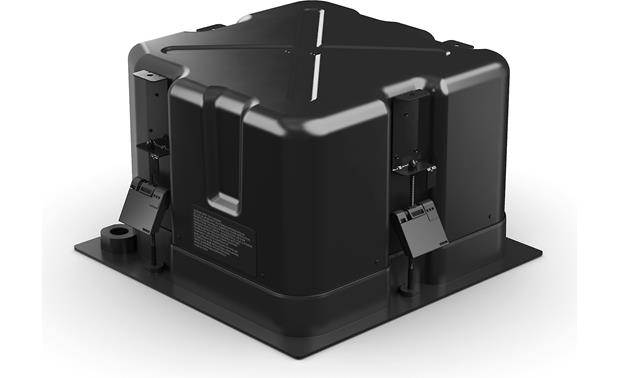

  • One in-ceiling loudspeaker

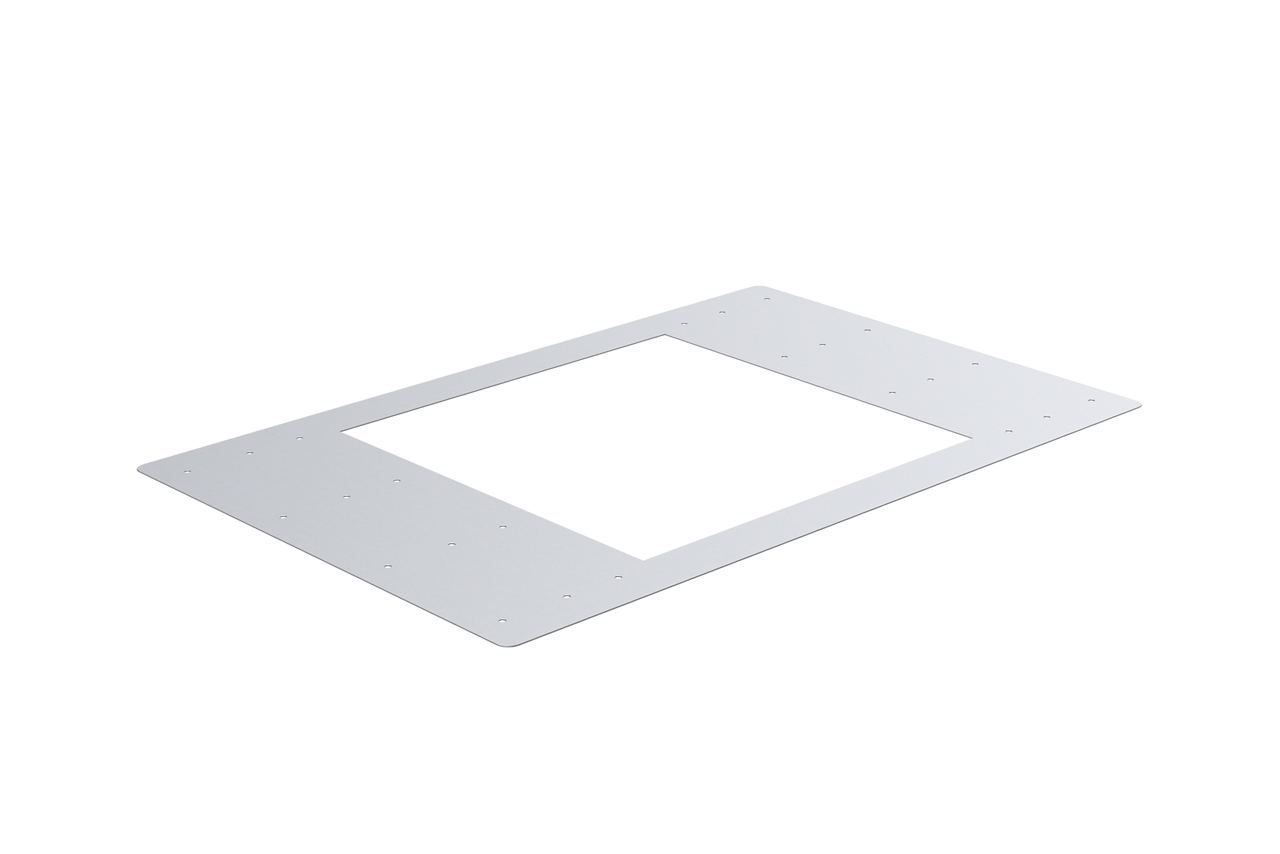

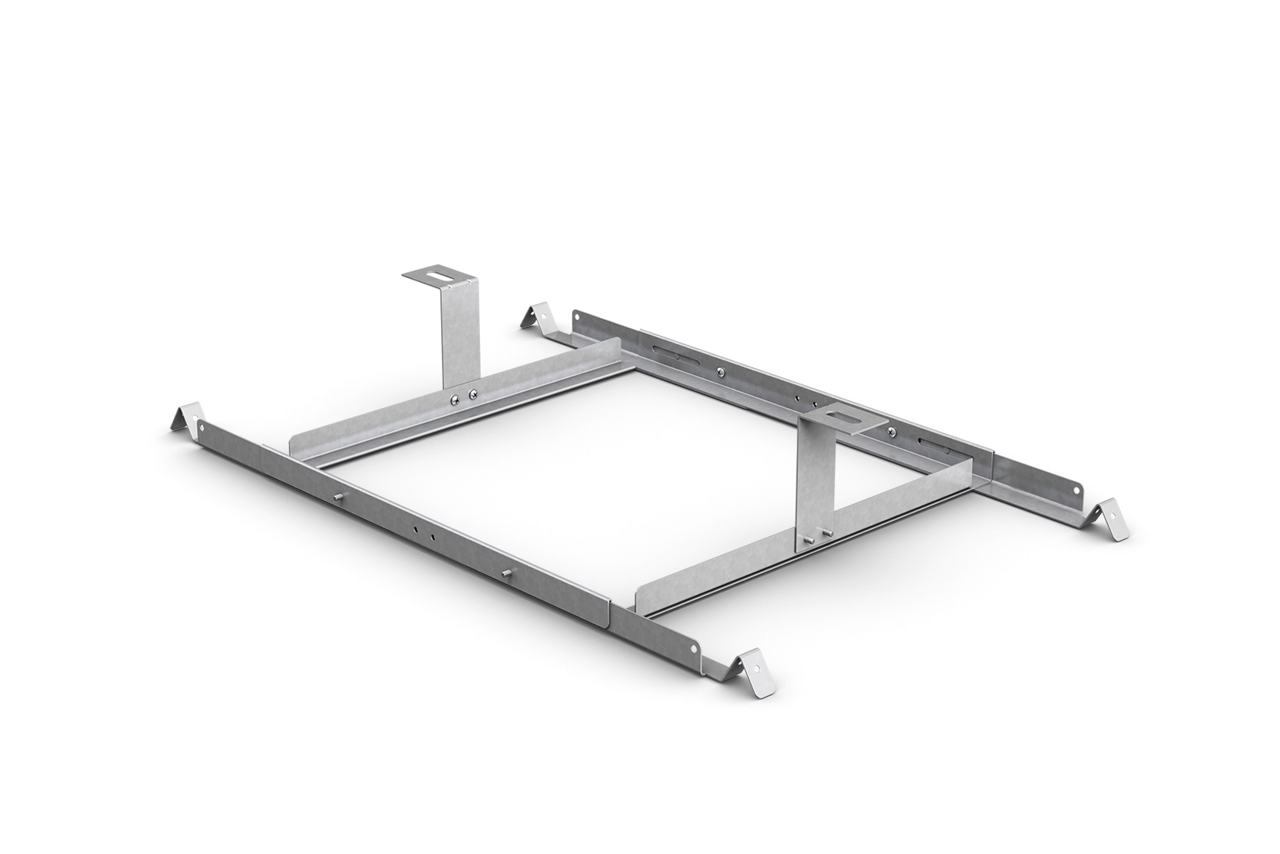

  • Tile bridge mounting-frame (square frame
  • Four 11" extension arms
  • Two 4" right-angle support arms)
  • 6-Pin Euroblock (Phoenix) connector (installed on speaker)
  • Grill
  • Nine 3/8" Phillips head screws
  • 2 Cardboard templates
  • Installation instructions
