Description
Bosch Commercial Sound System Bundle
Professional background music and paging solution comprising 1 x Bosch PLE-1MP30-IN Mixer Amplifier (30W) and 4 x Bosch LBD0606/10 6W Ceiling Loudspeakers.
Retail & Showrooms Cafés & Restaurants Offices & Meeting Rooms Gyms & Yoga Studios Premium Residential
Complete, Ready-to-Install Audio Package
This Bosch sound system bundle is designed for clear announcements and high‑quality background music in small to medium spaces. The portable PLE-1MP30-IN mixer amplifier delivers 30W of power with built‑in Bluetooth, USB, TF card and FM tuner, while the LBD0606/10 ceiling speakers provide discreet, wide‑coverage sound for both speech and music. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)
- Plug‑and‑play: All components are matched and ready for installation.
- Flexible sources: Mic, AUX, Bluetooth, USB, TF card and FM radio. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf)
- Professional look: Flush‑mounted ceiling speakers with neutral white grille. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)

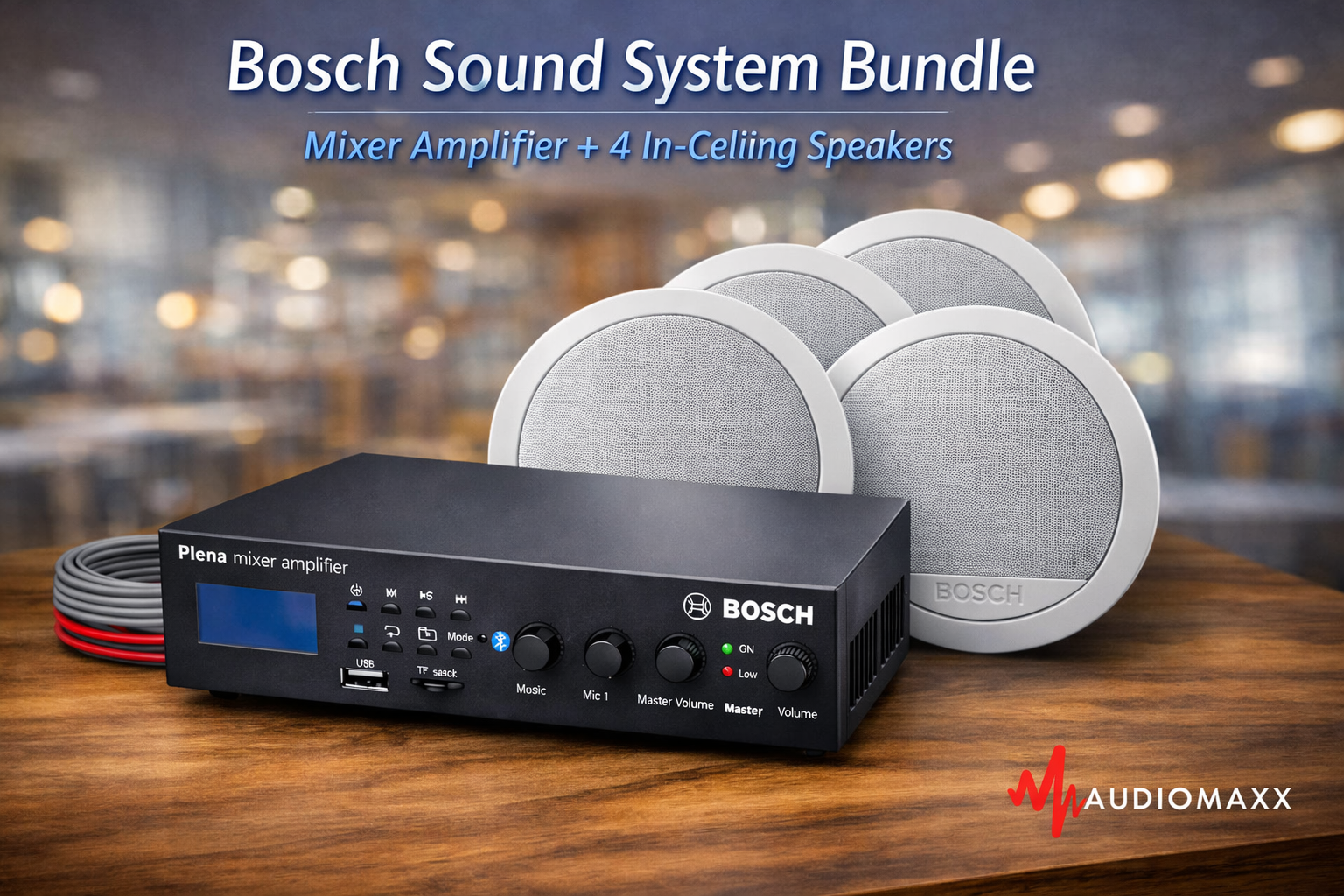

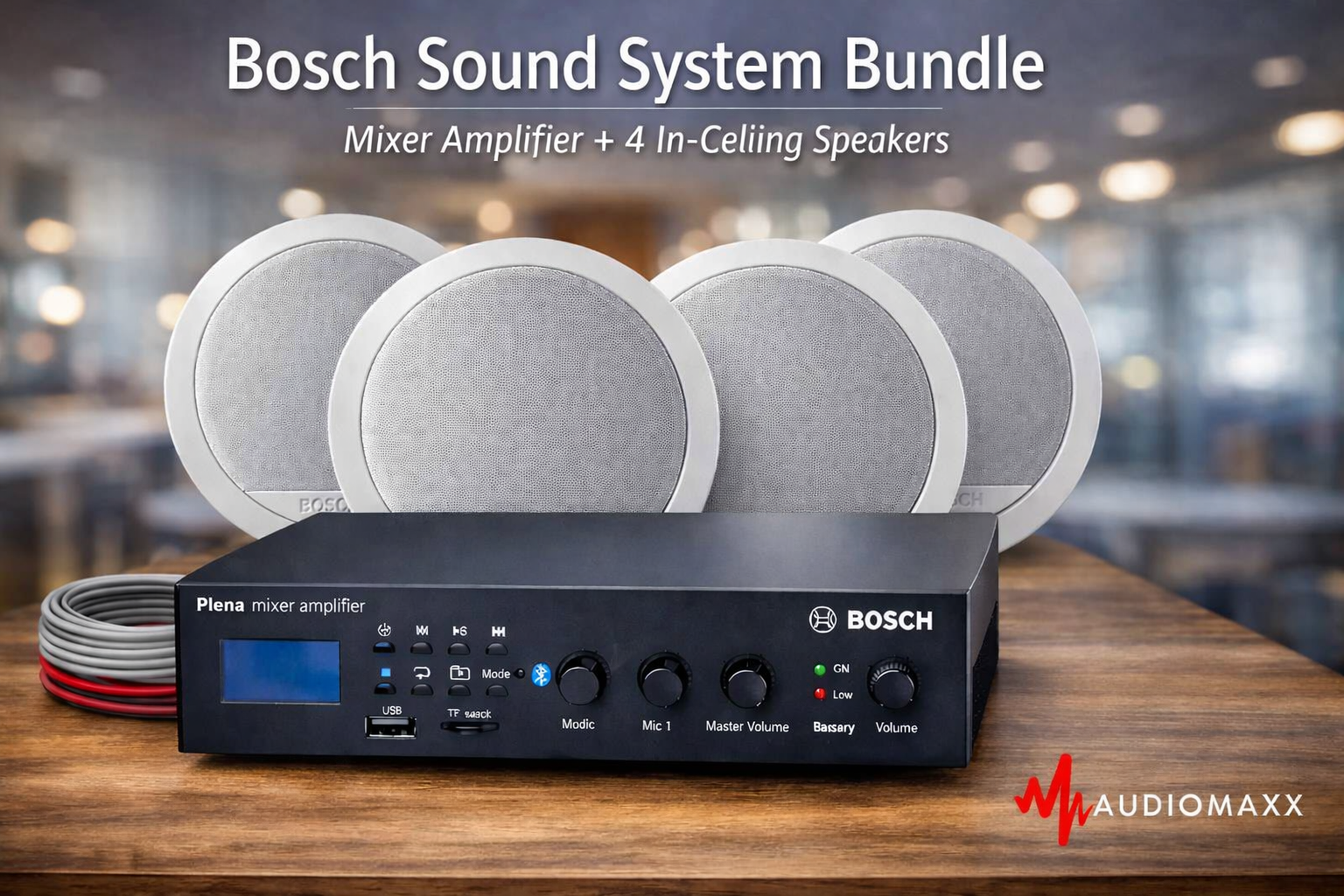

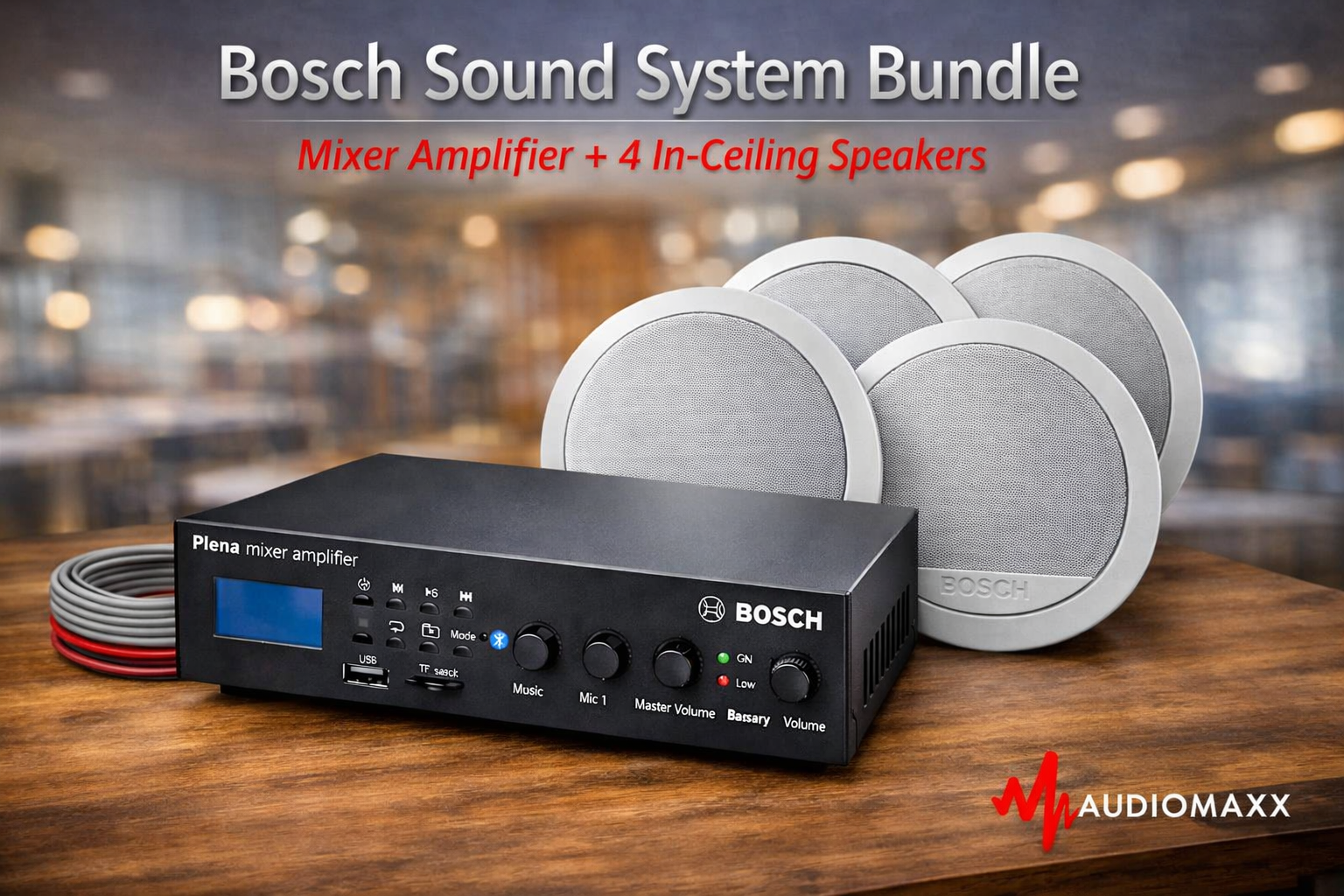

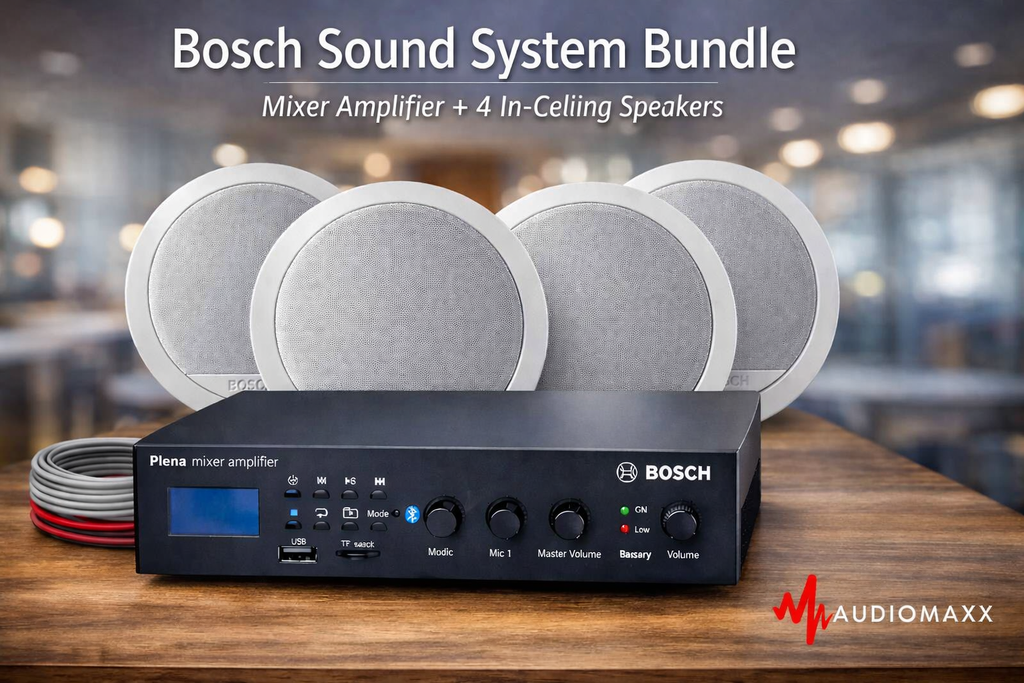

Bundle Components
- 1 x Bosch PLE-1MP30-IN portable mixer amplifier, 30W
- 4 x Bosch LBD0606/10 6W metal ceiling loudspeakers
Bosch PLE-1MP30-IN Mixer Amplifier – Key Specifications
The Bosch PLE-1MP30-IN is a portable, class‑D mixer amplifier with integrated music player and advanced protection features, ideal for mobile and fixed public address applications. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/)
| Electrical & Audio Performance | |
|---|---|
| Rated output power | 30 W (4 Ω low‑impedance speaker load) |
| Amplifier topology | Class‑D, high‑efficiency design |
| Frequency response | 20 Hz – 20 kHz (+1 / −3 dB @ −10 dB of rated output) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| Distortion | < 1% @ rated output power [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| S/N ratio | > 70 dB (line), > 60 dB (mic) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| Inputs & Controls | |
| Microphone inputs | 2 x mic inputs (Mic 2 with phantom power option) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) |
| AUX / Line input | RCA mono line input for external sources [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| Music player | Bluetooth, USB, TF card and FM tuner with IR remote control [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| Ducking function | Variable ducking: 0 dB, −6 dB, −24 dB, Mute (background music fades during announcements) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| Line output | Line‑level output for connection to higher‑power amplifiers [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) |
| Power & Protection | |
| Power adapter | 19 V DC adapter (≈65 W), 230 V / 50 Hz input [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| Battery operation | Supports 12 V / 24 V battery supply (≥35 Ah) with low‑battery indication [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) |
| Speaker line monitoring | Short‑circuit / overload detection with fault indication and self‑protection mode [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) |
| Fuse protection | Replaceable DC fuse on rear panel [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) |
Bosch LBD0606/10 Ceiling Loudspeaker – Key Specifications
The Bosch LBD0606/10 is a general‑purpose 6 W ceiling loudspeaker with metal grille and spring clamps, suitable for both speech and music reproduction in commercial and residential interiors. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)
| Electrical & Acoustic | |
|---|---|
| Rated power | 6 W (tap settings: 6 W / 3 W / 1.5 W @ 100 V) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Transformer | 100 V line matching transformer with multiple power taps [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Sound pressure level | 95 dB (6 W / 1 m), 87 dB (1 W / 1 m @ 1 kHz) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Effective frequency range | 65 Hz – 20 kHz (−10 dB) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Opening angle | 180° @ 1 kHz, 49° @ 4 kHz (−6 dB) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Mechanical & Installation | |
| Construction | Metal frame and circular metal grille, dual‑cone loudspeaker [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Mounting | Flush‑mounting in ceiling cavity with integral spring clamps [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Finish | Neutral white (paintable grille to match interior) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
| Application type | Speech and background music in public and private spaces [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf) |
Bundle Advantages
Technical & Operational Benefits
- All‑in‑one solution: Amplifier, music player and speakers in a single matched bundle.
- Multiple audio sources: Mic inputs, AUX, Bluetooth, USB, TF card and FM radio for flexible content. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/)
- Automatic ducking: Background music automatically fades during announcements, improving speech intelligibility. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/)
- Battery and mains operation: Ideal for mobile setups, temporary events and locations with unreliable power. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/)
- High efficiency: Class‑D amplifier reduces heat and power consumption. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/)
- Wide frequency response: 65 Hz – 20 kHz speakers and 20 Hz – 20 kHz amplifier for full‑range sound. [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)
Design & Installation Benefits
- Discreet ceiling integration: Flush‑mounted speakers blend into interiors with minimal visual impact. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)
- Simple mounting: Spring clamps allow quick installation in false ceilings without additional brackets. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)
- Scalable system: Line output enables expansion with additional power amplifiers and more speakers. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf)
- Reliable protection: Short‑circuit and overload monitoring on speaker lines, plus battery protection. [assets. catalogue.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf)
- Brand trust: Bosch quality and global support for commercial audio installations. [assets. catalogue.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)
Application Areas
Commercial Applications
- Retail stores & showrooms: Background music, promotional messages and paging.

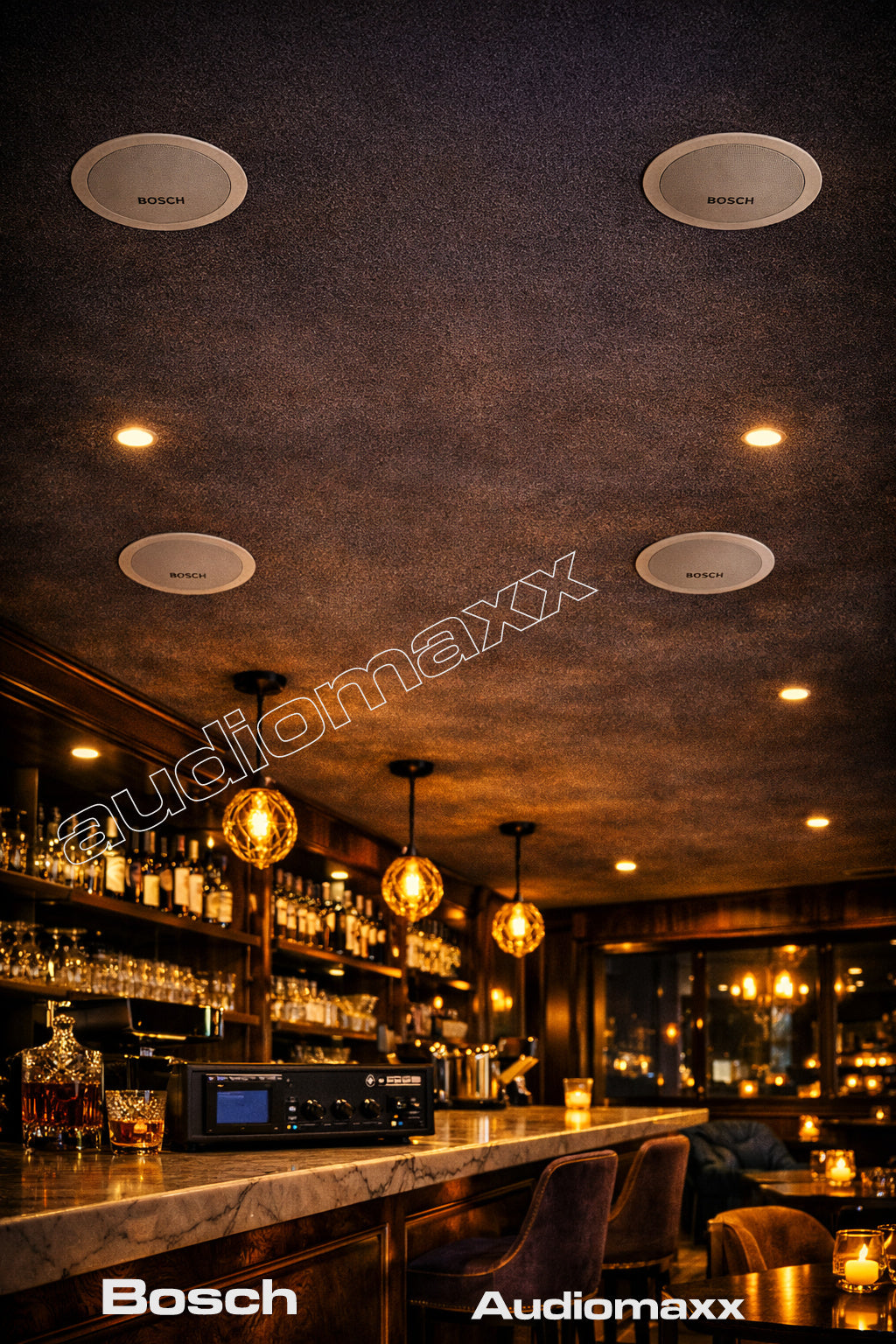

- Cafés, restaurants & bakeries: Ambient music and table‑call announcements.
- Offices & meeting rooms: Speech reinforcement, announcements and soft background music.
- Gyms, yoga & wellness centers: Program music and instructor microphones. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf)
- Small event venues & community halls: Portable PA for speeches and music playback.
Residential & Lifestyle Applications

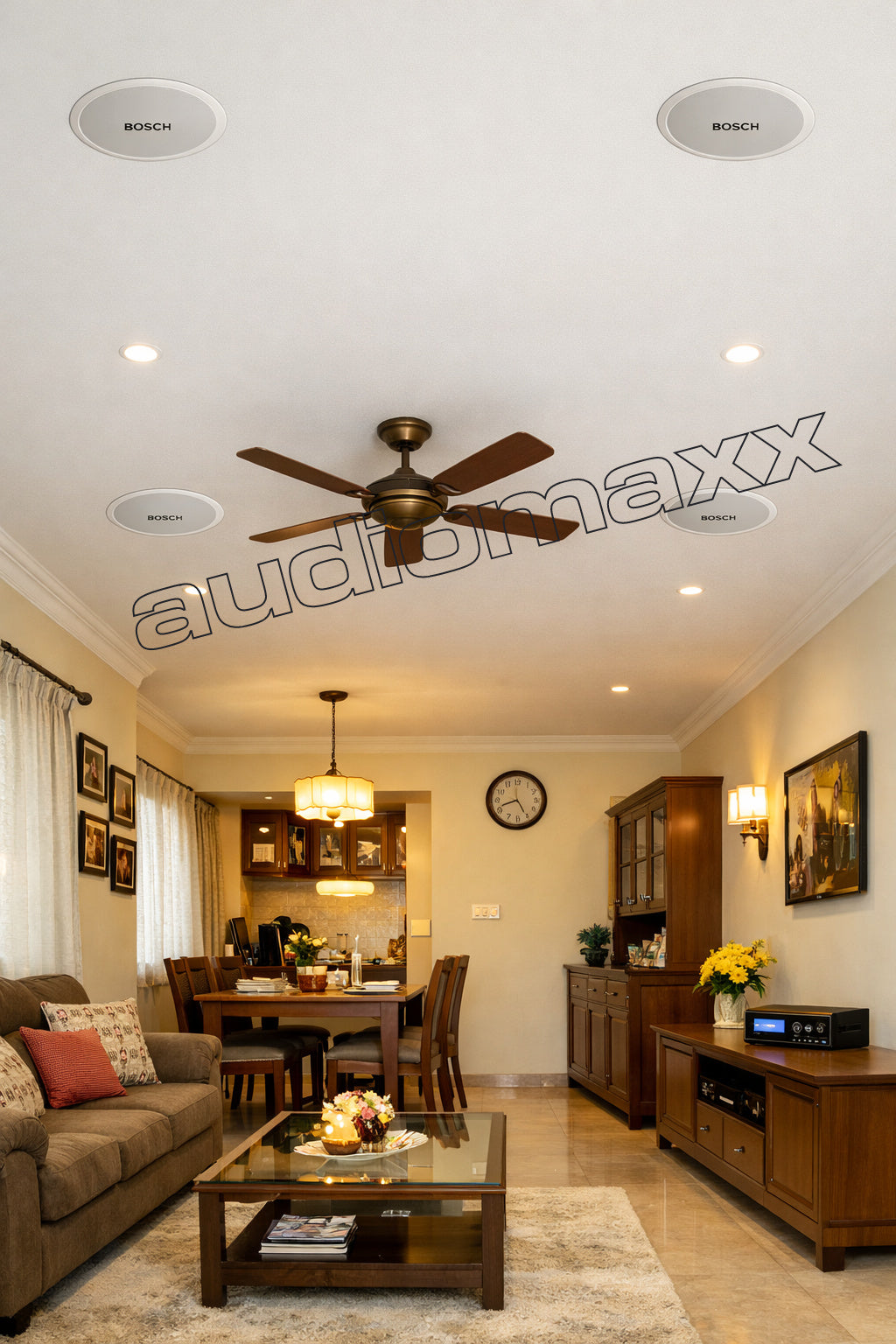

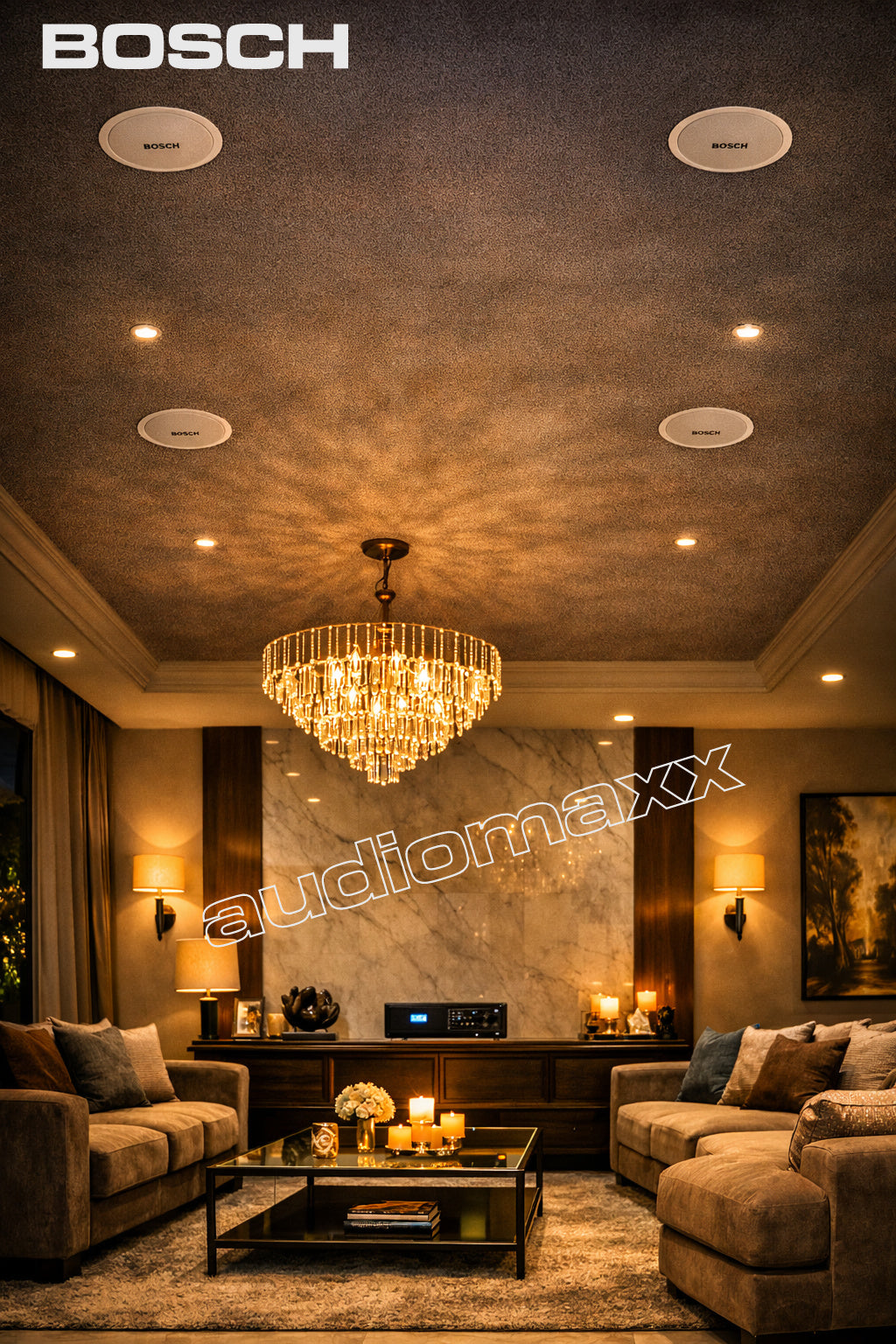

- Premium living rooms: Discreet ceiling speakers for TV audio and music.
- Home offices & studios: Clear voice reproduction for calls and presentations.
- Terrace / balcony zones: Background music for gatherings (with suitable weather protection).
- Multi‑room audio: Use line output to feed additional amplifiers for more zones.
Why Choose This Bosch Sound System Bundle?
- Optimized pairing: Amplifier power and speaker taps are matched for reliable performance.
- Future‑proof: Expandable via line output and additional ceiling speakers or amplifiers.
- User‑friendly: Front‑panel controls and IR remote make operation simple for non‑technical staff. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/)
- Professional audio quality: Designed specifically for public address and background music, not consumer hi‑fi. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/LBD0606_10_Data_sheet_all_122910877323.pdf)
FAQ – Bosch Commercial Sound System Bundle
Q1. How many rooms can this bundle cover?
With four ceiling speakers and a 30 W amplifier, this bundle is ideal for a single medium‑sized zone (e.g., 60–100 m²), depending on ceiling height and acoustic conditions. Additional zones can be added using the line output and extra amplifiers.
Q2. Can I connect this system to a TV or music streamer?
Yes. Use the AUX / line input for TV audio or external music streamers, or use Bluetooth / USB / TF card for direct playback from mobile devices and storage media. [assets.catalog.boschbuildingtechnologies.com](https://assets.catalog.boschbuildingtechnologies.com/public/documents/PLE_1MP30_IN_Data_sheet_all_123037855243.pdf) [commerce.keenfinity.tech](https://commerce.keenfinity.tech/in/en/Mixer-amplifier-portable-30W/p/F.01U.344.892/)
Q3. Is this system suitable for voice evacuation?
This bundle is primarily designed for public address and background music. For certified voice evacuation systems, Bosch EN54‑compliant solutions should be used.
