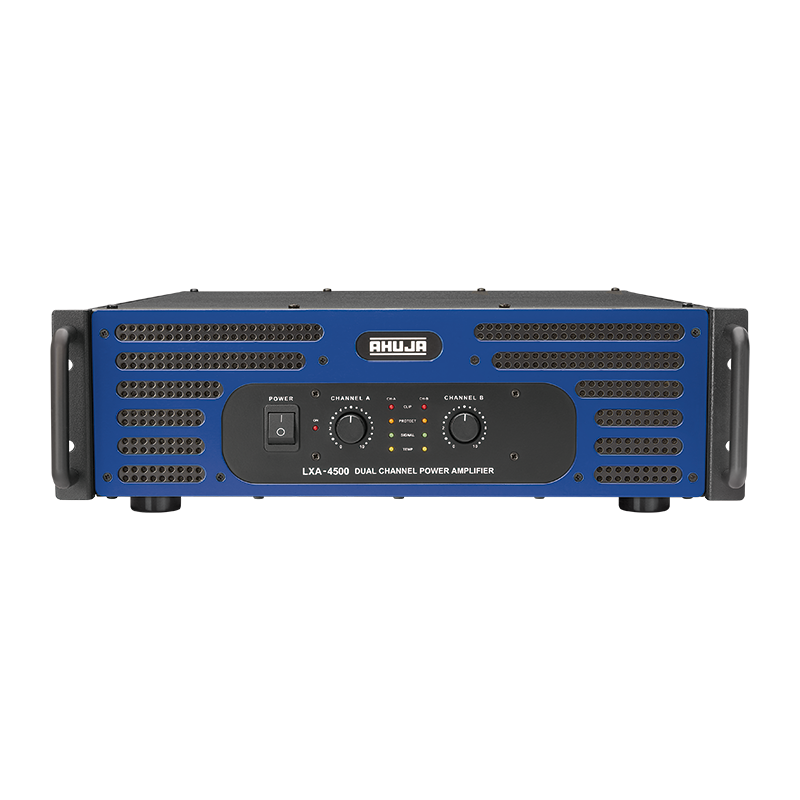

Ahuja LXA-4500 Dual Channel Power Amplifiers - Each

Rs. 72,245.00

LXA-4500
2250+2250 WATTS AC Operation
  • Dual channel direct coupled amplifier.
  • 4500 Watts rated output.
  • Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
  • 80Hz / 120Hz LPF.
  • Built-in circuit for HF protection.
  • Limiter ON/OFF.
  • Two selectable input sensitivities.
  • Class H operation for optimum efficiency.
SPECIFICATIONS
  • Stereo/Mono  8Ω : 1000W + 1000W RMS, 4Ω : 1550W + 1550W RMS, 2Ω : 2250W + 2250W RMS
  • Bridged Output  8Ω : 3100W, 4Ω : 4500W
  • THD + N  < 1.0%
  • Frequency Response (-1dB)  20-20,000Hz
  • Low Pass Filter  80/120Hz @ 24dB per octave
  • Power Bandwidth (0.5% THD)  20-20,000Hz
  • Input Sensitivity  0dBu (775mV) & 4dBu (1.23V) (Selectable)
  • Input Impedance  10k Unbalanced, 20k Balanced
  • signal to noise Ratio  > 95dB
  • Channel Separation  > 65dB at 1kHz
  • Damping Factor  400 : 1 (8Ω)
  • Slew Rate  35V/µs
  • Protections  Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF) AC: Circuit Protector 20A; ± DC: Fuse 2 x 25Amp. (T 25A L) for each zone, Fuse 2×3 Amp. (T 3A L)
  • Input Connectors  2 × XLR, Stereo Phone Jack 6.3mm
  • Output Connectors  Speakon 4-Way and heavy duty Binding Post for each channel
  • Cooling  Variable Speed DC Fan with Temperature Sensing
  • Front Panel Controls  2 × 41 Step Level Attenuators
  • Indicators  Power ON, Signal, Clip, Temperature, Protect (Ch. A & B
  • Power Consumption (Rated)  5400VA @ 220-240V ~ 50/60Hz
  • Dimensions  W482 × H153 × D580mm
  • Weight  36.50kg
