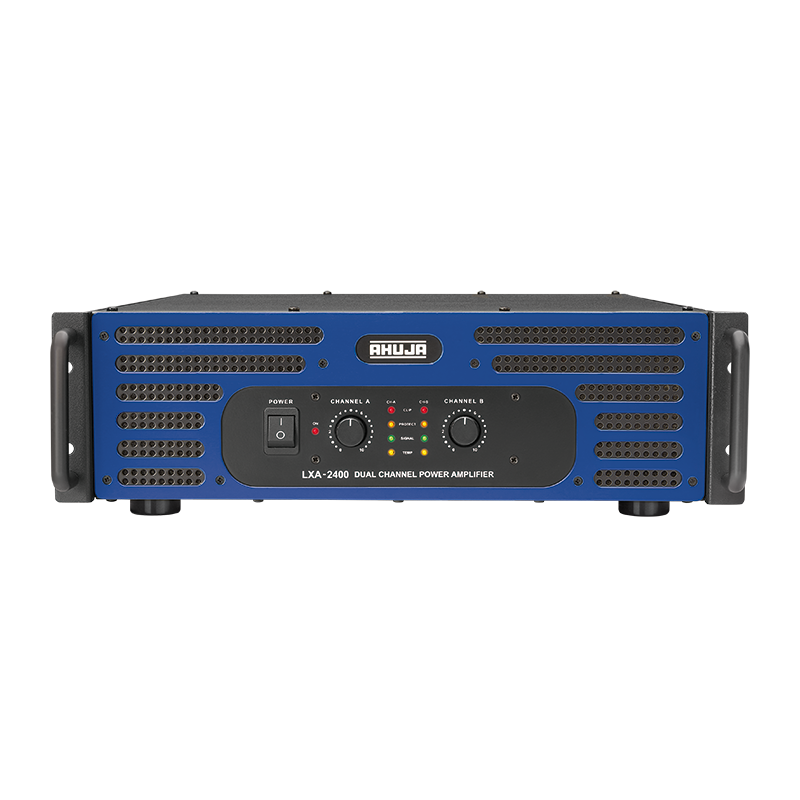

Ahuja LXA-2400 Dual Channel Power Amplifiers - Each

Rs. 51,825.00

LXA-2400
1200+1200 WATTS  Dual Channel PA Power Amplifier
  • Dual channel direct coupled amplifier.
  • 2400 Watts rated output.
  • Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
  • Two selectable input sensitivities.
  • Class H operation for optimum efficiency.
SPECIFICATIONS
  • Stereo/Mono  8Ω : 600W + 600W, 4Ω : 850W + 850W, 2Ω : 1200W + 1200W
  • Bridged Output   8Ω : 1700W, 4Ω : 2400W
  • THD + N   < 1.0%
  • Frequency Response (-1dB)    20-20,000Hz
  • Power Bandwidth (0.5% THD)   20-20,000Hz
  • Input Sensitivity   0dBu (775mV) & 4dBu (1.23V) (Selectable)
  • Input Impedance   10k Unbalanced, 20k Balanced
  • Signal to Noise Ratio   > 95dB
  • Channel Separation   > 65dB at 1kHz
  • Damping Factor   400 : 1 (8Ω)
  • Slew Rate   35V/µs
  • Protections  Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter AC: Fuse 20Amp. (T 20A L); ± DC: Fuse 2 x 20Amp. (T 20A L) for each channel Fuse 2×3 Amp. (T 3A L)
  • Input Connectors   2 × XLR, Stereo Phone Jack 6.3mm
  • Output Connectors   Speakon 4-Way and heavy duty of Binding Post for each channel
  • Cooling   Variable Speed DC Fan with Temperature Sensing
  • Front Panel Controls   2 × 41 Step Level Attenuators
  • Indicators   Power ON, Signal, Clip, Temperature, Protect (Ch. A & B)
  • Power Consumption (Rated)   2700VA @ 220-240V ~ 50/60Hz
  • Dimensions   W482 × H153 × D550mm
  • Weight   28.70kg
