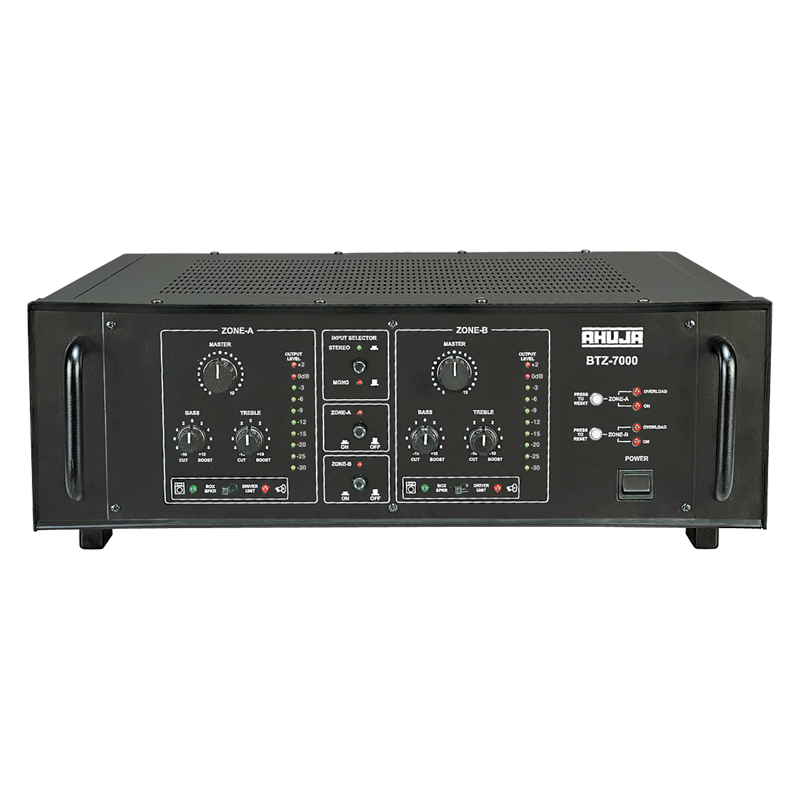

Ahuja BTZ 7000 Two Zone Power Amplifier (350+350watts) - Each

Rs. 48,150.00

BTZ-7000
700 WATTS 2 ZONE PA POWER AMPLIFIER
  • Stereo Music Operation for DJ programmes.
  • Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for places of worship.
  • Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Bar Graph Signal Display.
SPECIFICATIONS
  • Power Output 500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD
  • Output Regulation ≤ 2 dB, no load to full load at 1kHz
  • Input Channels Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ
  • Frequency Response 50-15,000Hz ±3dB
  • Signal to Noise Ratio 60dB
  • Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
  • Outputs Line L/R 1V/1kΩ
  • Speaker Outputs 4Ω, 8Ω, 70V& 100V for each zone
  • Power Supply AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery)
  • Power Consumption AC: 1100VA DC: 13A
  • Dimensions W510 × H185 × D470 mm
  • Weight 39.0kg
