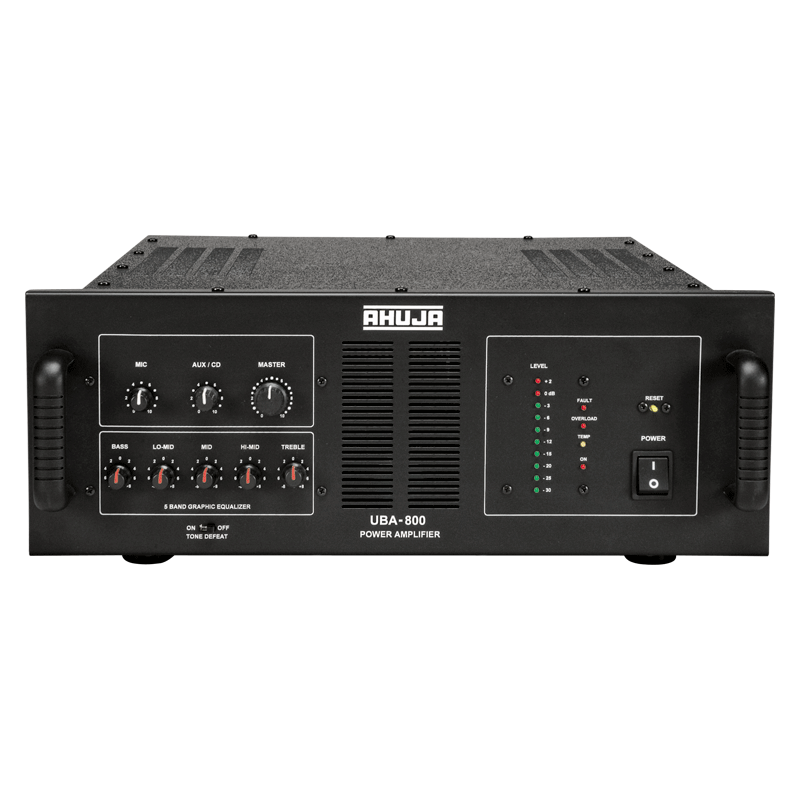

Ahuja UBA-800 800 Watt PA Amplifiers - Each

Rs. 38,125.00

UBA-800
800 WATTS  DJ & PA POWER AMPLIFIER
  • Designed for use in a wide variety of PA applications and DJ performances.
  • UBA-800 is a 800 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
  • The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
  • Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
  • Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
  • The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
  • Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
  • 2Ω speaker matching provided in addition to 4 & 8Ω.
SPECIFICATIONS
  • Power Output  1150W RMS Max., 800W RMS at 10%THD, 770W RMS at 5% THD 725W RMS at 2% THD
  • Output Regulation   ≤ 2dB, no load to full load at 1kHz
  • Input Channels  1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ
  • Frequency Response  50Hz–18,000Hz ±3dB
  • Signal to Noise Ratio   60dB
  • Tone Controls  Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB
  • Line Output  1V/1kΩ
  • Speaker Output  2Ω, 4Ω & 8Ω
  • Power Supply   AC: 220-240V 50/60Hz
  • Protections  2 × 25 Amp fuse in ± DC supply 8 Amp circuit breaker in AC mains, Protected against high AC mains voltage, overload & temperature
  • Power Consumption  1500 VA
  • Dimensions  W482 × H186 × D530 mm
  • Weight  32.0kg
