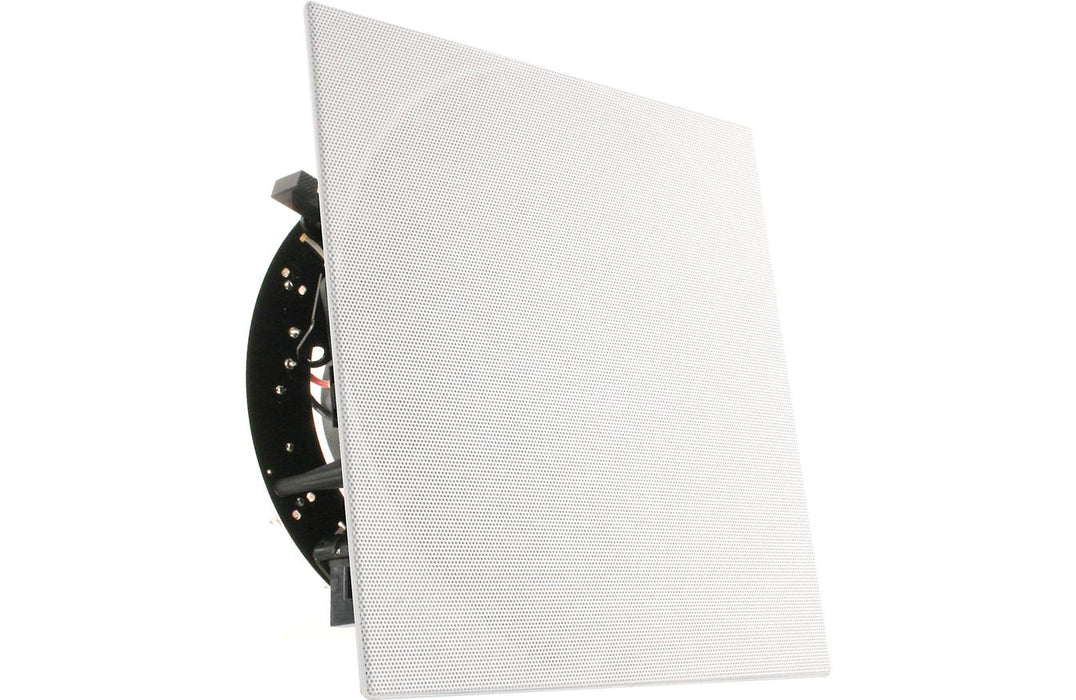

Revel C783- In-Ceiling Speaker - Piece

Rs. 67,990.00

Revel C783

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

SPECIFICATIONS

Height

  • Cutout dimensions (dia.) 9.6" (24.4 cm)
  • Square grille finished Height 10.7" (27.2 cm)

Width

Square grille finished Width 10.7" (27.2 cm)

Depth

Mounting depth 5.2" (13.2 cm)

Weight

1.4Kg

Features

Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm)

High Frequency Driver Components

1" aluminum dome swiveling high-output tweeter with wave

Low Frequency Extension

High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation

Low Frequency Driver Components

  • 8" Micro-Ceramic Composite (MCC) Cone
  • Cast-Aluminum Frame High-Output Woofer

Mounting

  • C-2 fastening mechanism
  • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)

Recommended Amplifier Power

10 - 150 Watts RMS
